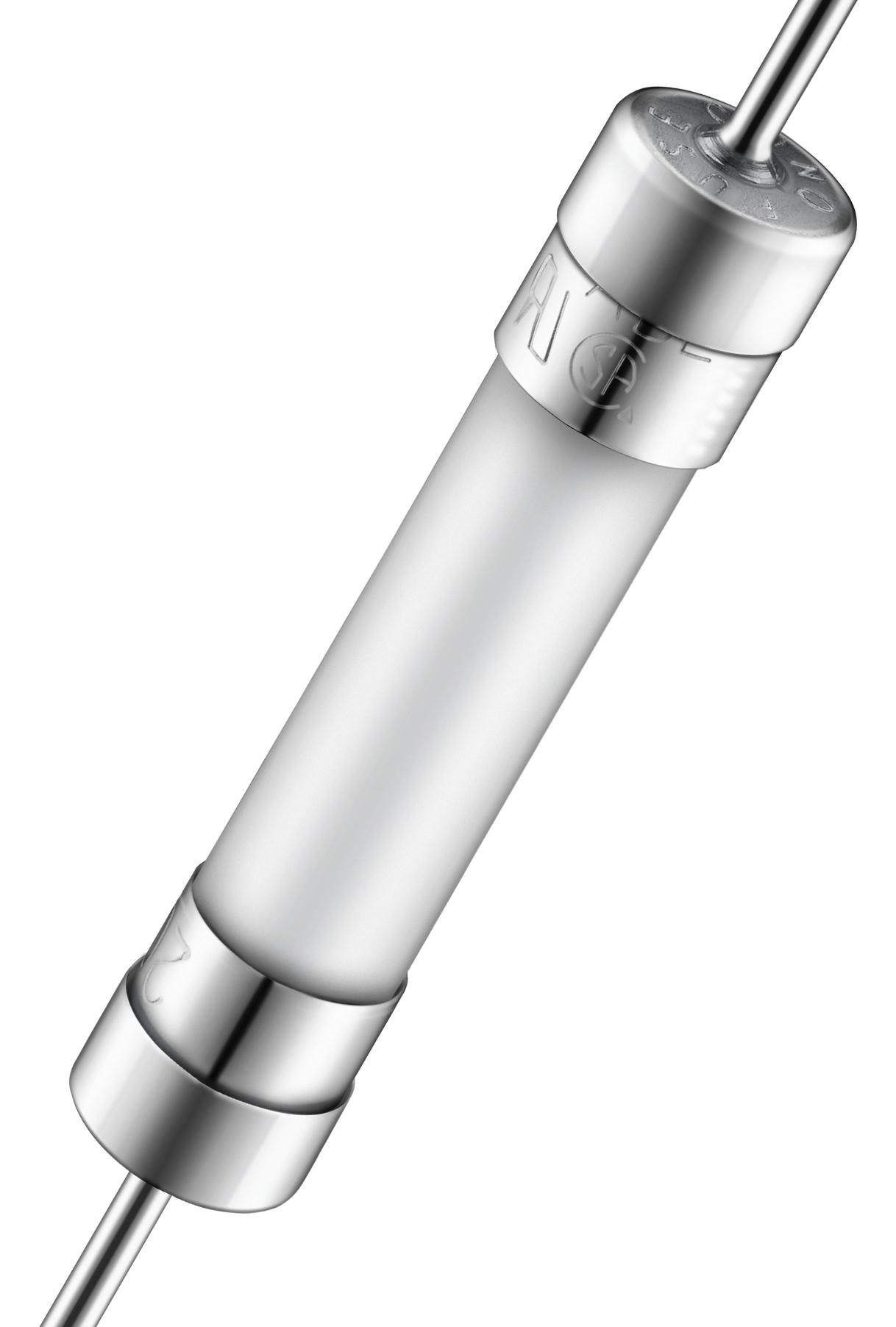

MULTICOMP PRO MP004301 Ceramic Cartridge Fuse
This fast-acting ceramic cartridge fuse is designed for quick protection in electronic circuits, featuring axial leads and a size of 6.3mm x 32mm. Manufactured with a ceramic body and nickel-plated brass caps, it offers high interrupting ratings up to 10,000A at 125V AC and 750A at 250V DC. Suitable for ratings from 500mA to 30A, it complies with RoHS, UL, CSA, and PSE standards. The fuse operates within a temperature range of -55°C to 125°C, ensuring reliable circuit protection in various applications.
MULTICOMP PRO MP004301 Ceramic Cartridge Fuse Specifications:
- Size: 6.3mm x 32mm
- Body Material: Ceramic
- Cap Material: Nickel Plated Brass
- Rated Current: 500mA to 30A
- Rated Voltage: 125V AC, 250V DC
- Interrupting Rating: Up to 10,000A at 125V AC, 750A at 250V DC
- Operating Temperature Range: -55°C to 125°C
- RoHS, UL Listed, CSA Certified, PSE Approved
- Lead Length: 38 ±2mm
- Lead Diameter: 0.8mm
- Cap Diameter: 6.35mm, Cap Height: 6.45mm
- Certification: Recognized component for Canada and US
Buy the Buy Multicomp SeriesMP004301 Part Number MP004301 Online
Purchase the Multicomp Series MP004301 ceramic cartridge fuse online today and enjoy fast, reliable circuit protection. This axial leaded fuse is ideal for safeguarding electronic components in various industrial and commercial applications. Crafted with a durable ceramic body and nickel-plated brass caps, it offers a high interrupting rating up to 10,000A at 125V AC and 750A at 250V DC. With a temperature range from -55°C to 125°C and compliance with RoHS, UL, CSA, and PSE standards, it guarantees safety, quality, and dependable performance in your projects.
Order your Multicomp Series MP004301 ceramic cartridge fuse today and ensure reliable circuit protection with fast acting, high interrupting capacity.
