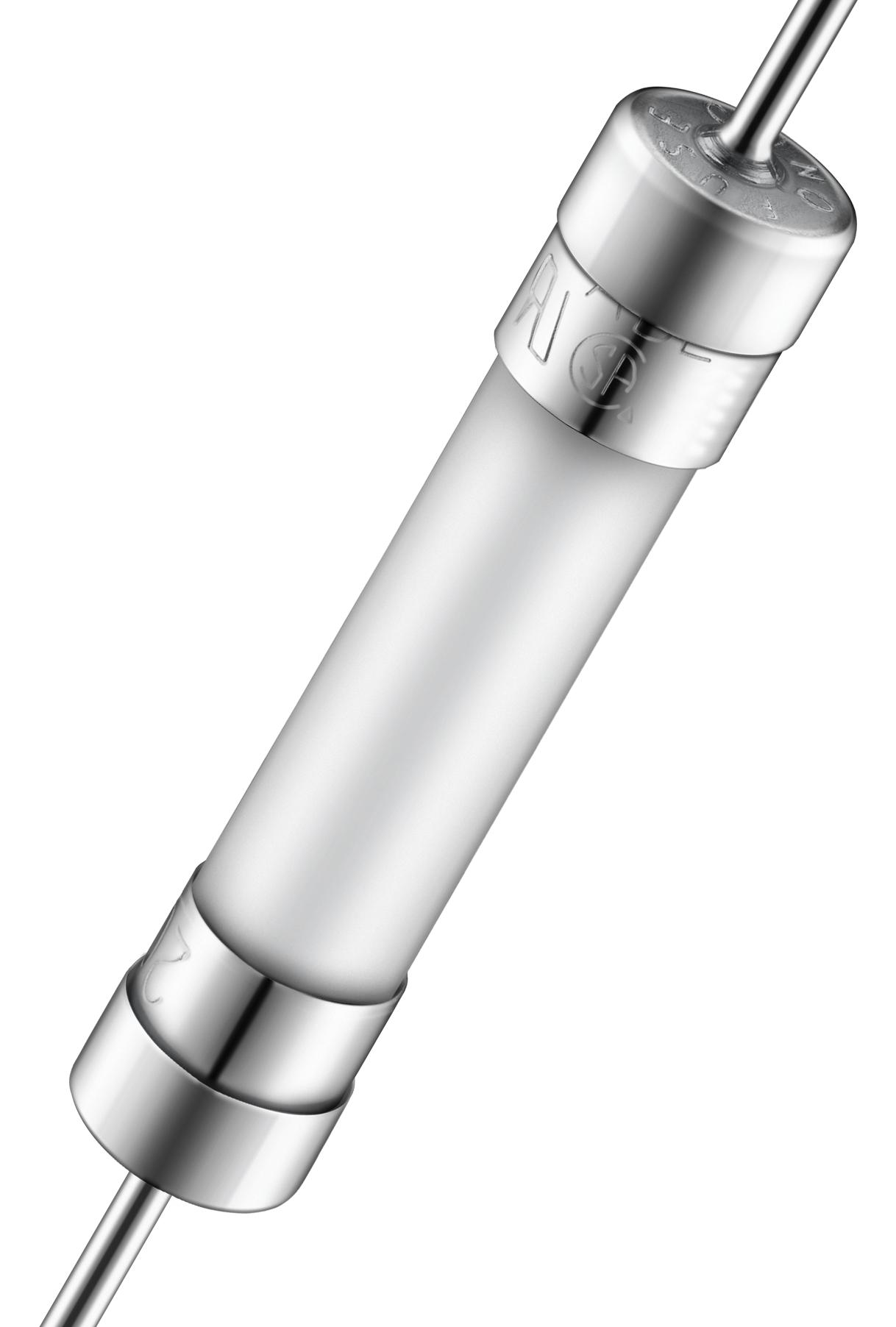

MULTICOMP PRO MP004305 Ceramic Cartridge Fuse
The multicomp fast acting ceramic cartridge fuse is designed for reliable circuit protection in various electronic and electrical applications. Measuring 6.3mm by 32mm, it features axial leads for easy installation. Certified by UL, CSA, and PSE, it is RoHS compliant, ensuring environmentally safe operation. The fuse offers high interrupting ratings up to 10,000A at 125V AC/DC, with voltage ratings up to 250V and current ratings from 500mA to 30A. It operates in temperatures from 1°C to 55°C, making it suitable for diverse environments and critical circuit protection.
MULTICOMP PRO MP004305 Ceramic Cartridge Fuse Specifications:
- Dimensions: 6.3mm x 32mm
- Body Material: Ceramic
- Cap Material: Nickel Plated Brass
- Lead Wire Diameter: 0.8 mm
- Lead Length: 38 mm ±2 mm
- Voltage Ratings: 125V AC/DC up to 10,000A interrupting capacity
- Current Ratings: 500mA to 30A
- Operating Temperature Range: 1°C to 55°C
- RoHS compliant
- Agency Certifications: UL Listed, CSA Certified, PSE Accepted
- Melting I2t: Ranges from 0.0164A for 7A to 0.187A for 1A
- Rated Interrupting Capacity: Up to 10,000A at 125V AC/DC
- Ratings: 500mA, 750mA, 1A, 1.25A, 1.54A, 2A, 3A, 3.5A, 4A, 4.5A, 5A, 6A, 6.3A, 7A, 7.5A, 8A, 10A, 12A, 13A, 15A, 16A, 18A, 20A, 25A, 30A
Buy the Multicomp Series Ceramic Fuse: MP004305
Purchase the multicomp ceramic cartridge fuse MP004305 online today for dependable circuit protection. This high-quality fuse features axial leads, RoHS compliance, UL recognition, and high interrupting ratings up to 10,000A at 125V. Its ceramic body and nickel-plated brass caps provide durability and reliable performance across temperature ranges from 1°C to 55°C. Ideal for electronic and electrical circuits, this fuse ensures safety and longevity for critical components. Order now and experience trusted protection in your applications with quick online delivery.
Buy Multicomp ceramic cartridge fuse MP004305 now and ensure reliable circuit protection with high interrupting capacity and environmental safety.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004305?
You can click on the BUY or RFQ button to purchase MP004305 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004305?
You can download the MP004305 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004305?
MULTICOMP PRO
