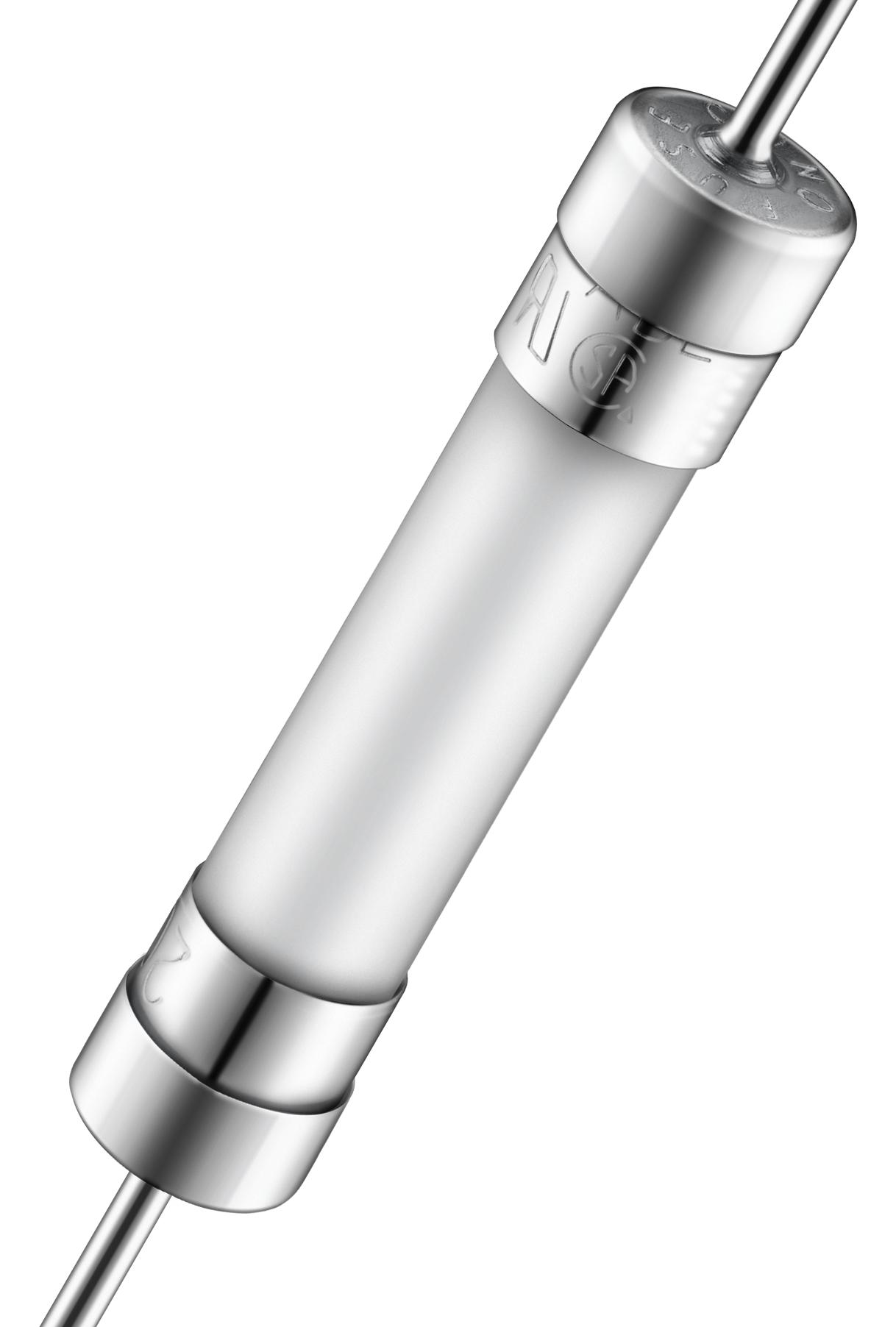

MULTICOMP PRO MP004312 Fast Acting Ceramic Fuse
This fast-acting ceramic cartridge fuse features axial leads and a 6.3mm x 32mm size, providing reliable overcurrent protection for electronic circuits. Rated from 500mA to 30A, it complies with RoHS standards and is recognized by UL, CSA, and PSE agencies for safety assurance. Made with a ceramic body and nickel-plated brass caps, it ensures durability and stability across temperature ranges from 1-55°C to 125°C. Suitable for DC and AC applications, it offers high interrupting ratings up to 100,000A, making it ideal for various industrial and electronic systems requiring quick overload response.
MULTICOMP PRO MP004312 Fast Acting Ceramic Fuse Specifications:
- Size: 6.3mm x 32mm
- Electrical Ratings: 500mA to 30A
- Rated Voltage: 125V AC/DC and 250V AC
- Interrupting Rating: Up to 100,000A at 125V AC
- Body Material: Ceramic
- Cap Material: Nickel Plated Brass
- Lead Wire Diameter: 0.8 mm
- Lead Length: 38 ± 2 mm
- Operating Temperature Range: 1-55°C to 125°C
- Agency Approvals: UL Recognized, CSA Certified, PSE
- RoHS Compliant
Buy the Multicomp Series Fast Acting Fuse: MP004312
Purchase the Multicomp Series fast-acting ceramic fuse MP004312 online today. Designed for rapid overcurrent protection, it features axial leads and a ceramic body for durability. Suitable for both AC and DC circuits, this fuse offers a voltage rating of up to 250V and an interrupting capacity of 100,000A, ensuring reliable circuit protection. Its compact 6.3mm x 32mm size and RoHS compliance make it ideal for a wide range of industrial and electronic applications. Order now for fast, dependable circuit safety!
Get Multicomp Series MP004312 fuse today—built for rapid response and high current protection in electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004312?
You can click on the BUY or RFQ button to purchase MP004312 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004312?
You can download the MP004312 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004312?
MULTICOMP PRO
