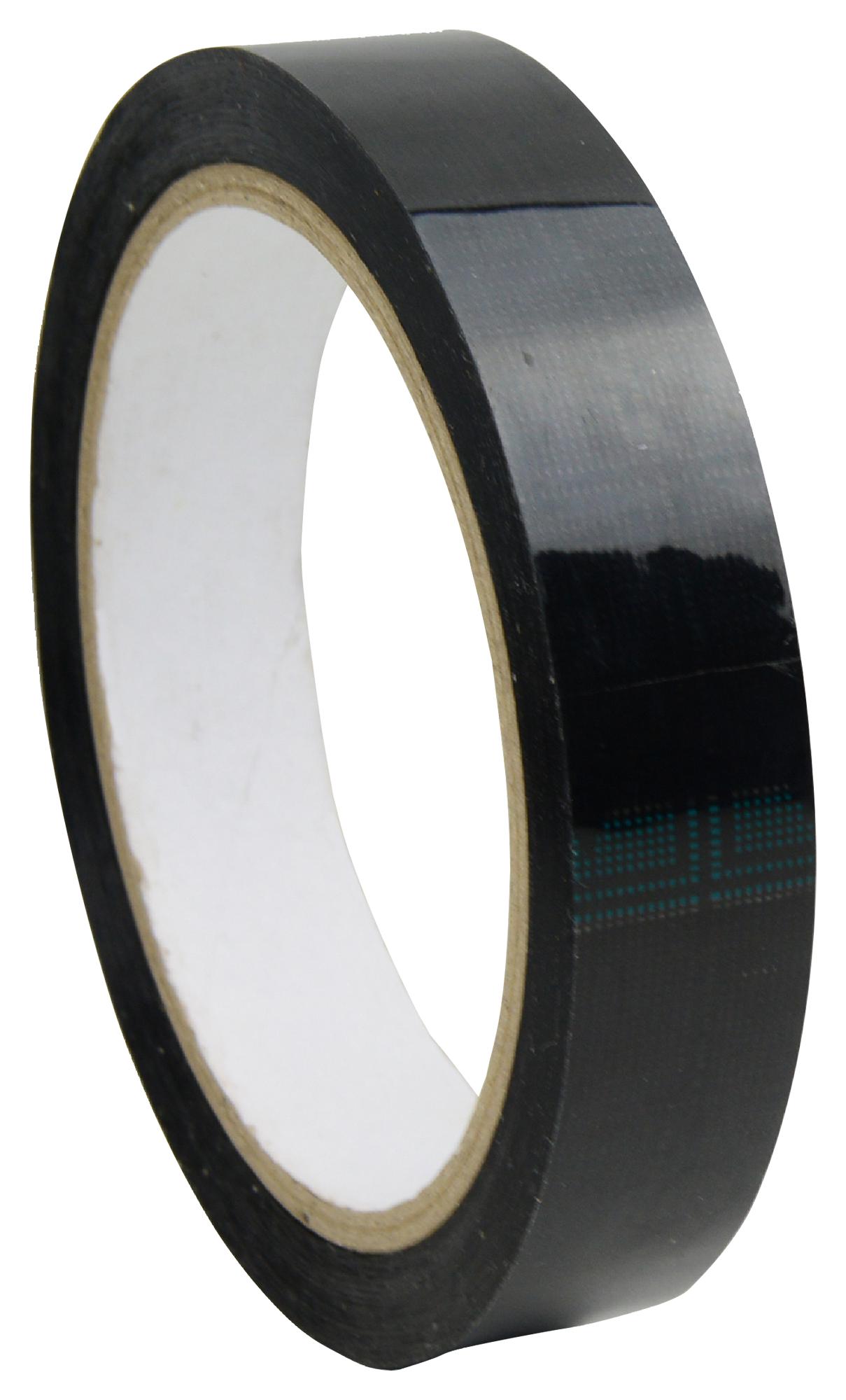

MULTICOMP PRO MP004375 ESD Grid Tape
ESD Grid Tape is a silicone-free, static dissipative polypropylene tape designed for electrostatic discharge protection in manufacturing and packaging environments. It features a self-adhesive backing with a grid pattern, including the ESD logo compliant with EN61340-5 standards. The tape is RoHS compliant, low residue, and ideal for sealing primary or delicate packaging to prevent static build-up. Its durable construction offers reliable electrical properties, surface resistance of 108-10 ohms, and dimensions of 19mm x 40m, making it suitable for sensitive electronic applications and static control procedures.
MULTICOMP PRO MP004375 ESD Grid Tape Specifications:
- Solid Content: 54%
- Peeling Strength: 6.5 N/25mm
- Holding Force at 0°C: <3 mm/h
- Initial Adhesion (Steel Ball): 13 g
- Total Thickness: 61 um
- Surface Resistance: 108-10 ohms
- Width Tolerance: +0.5 mm
- Length Tolerance: 20 m
- Roll Core Inner Diameter: 76 mm
- Tensile Strength: 42 N/25mm
- Elongation Rate: 159%
- OPP Film Thickness: 38 um
- Pressure Sensitive Adhesive Thickness: 23 um
- Dimensions: 19mm x 40m
- RoHS Compliant, EN61340-5, Low Residue, Silicone Free
Buy the Multicomp Series ESD Grid Tape: MP004375
Order the Multicomp Series ESD Grid Tape MP004375 online today to ensure optimal static control and protection during sensitive electronic assembly and packaging. This RoHS-compliant, silicone-free polypropylene tape features a self-adhesive grid surface with low residue, providing reliable electrostatic discharge dissipation. Its dimensions of 19mm x 40m make it suitable for sealing and static prevention in manufacturing processes. Enhance your static safety protocols by purchasing this durable, conductive tape directly from trusted online distributors for quick and convenient delivery.
Buy Multicomp Series ESD Grid Tape MP004375 now and experience unmatched reliability and static protection in electronic manufacturing.
