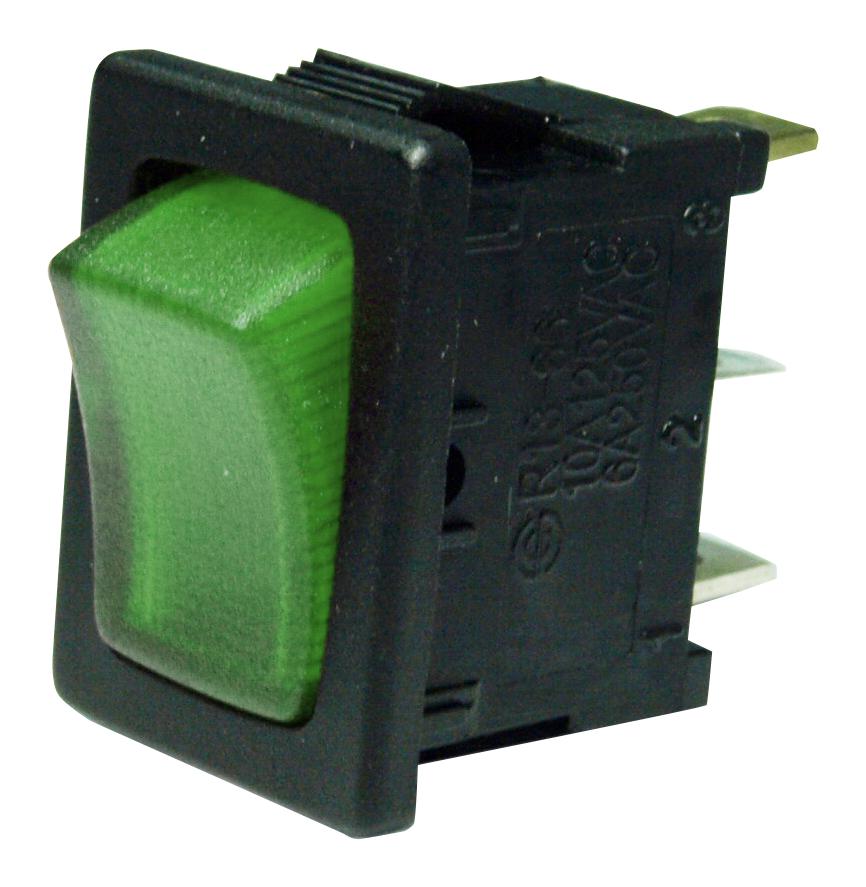

MULTICOMP PRO MP004565 3-Position Rocker Switch
This rocker switch features a 3-position SPST ON-OFF function with a green actuator, constructed from durable nylon and PC materials. It supports ratings of 16A 125V AC and 10A 250V AC, suitable for various control applications. The switch has a dielectric strength of AC 1500V for 1 minute, operating temperature range from -20°C to +85°C, and compliance with RoHS standards. Its physical dimensions include mounting hole sizes of 19.2mm to 19.4mm, with a thickness between 0.75mm and 2mm, ensuring reliable performance in industrial or electronic systems.
MULTICOMP PRO MP004565 3-Position Rocker Switch Specifications:
- Rating: 16A 125V AC, 10A 250V AC, 1/3HP, 1/2HP bus
- Contract Resistance: 50m Q Max
- Insulation Resistance: DC 500V 100M Q Min
- Dielectric Strength: AC 1500V 1 minute
- Operation Temperature: -20°C to +85°C
- Switch Function: 3 Position SPST ON-OFF
- Material Frame: Nylon#66, Black; Actuator: PC, Green
- Mounting Hole Size: 19.2mm to 19.4mm, Thickness: 0.75mm-2mm
- Tolerance: ±0.3mm
- RoHS Compliant
Buy the Multicomp Series Switch: SPST On-Off Green Actuator MP004565
Order the 3-Position Rocker Switch with a green actuator from Multicomp Series now. This durable switch supports 16A 125V AC and 10A 250V AC ratings, perfect for controlling equipment safely and efficiently. Its nylon and PC construction ensures long-lasting performance even in demanding environments. Compact and easy to install with mounting holes measuring 19.2mm to 19.4mm, it offers excellent dielectric strength and temperature tolerance. Buy online today for dependable, high-quality control solutions for industrial or electronic applications.
Get Multicomp Series MP004565 today—built for reliable switching and industrial control durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004565?
You can click on the BUY or RFQ button to purchase MP004565 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004565?
You can download the MP004565 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004565?
MULTICOMP PRO
