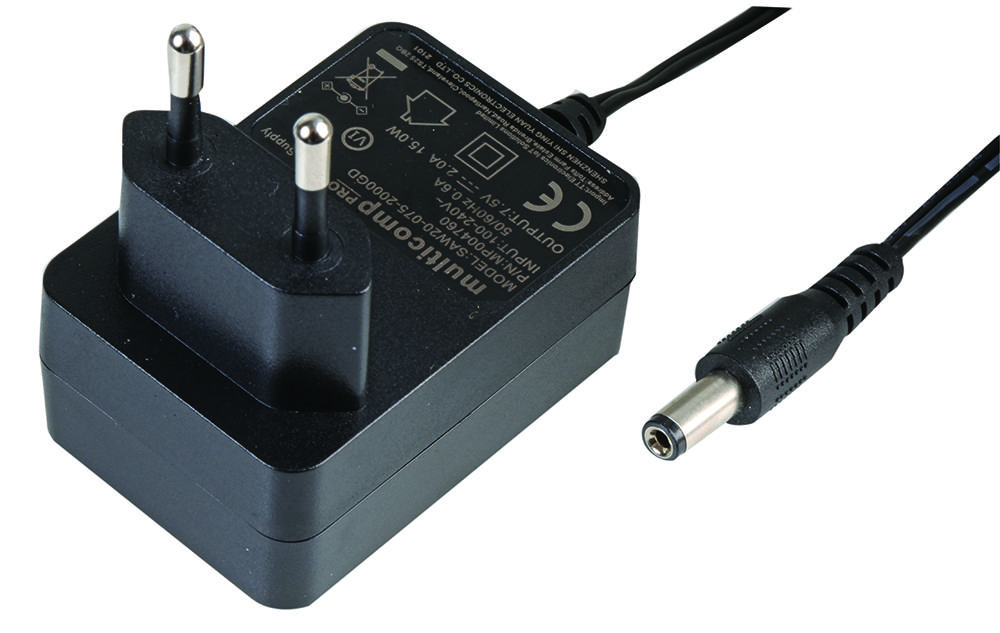

MULTICOMP PRO MP004760 Power Adapter
Compact 15W European wall plug adapter providing 7.5V DC at 2A, designed for reliable power delivery in diverse general applications. Certified RoHS, CE approved, with high efficiency Level VI standard. Features include auto-recovery short-circuit protection, Over Current Protection exceeding 1.8A, and an operating temperature range of 0°C to +40°C. Its 2.1mm x 5.5mm x 12mm centre positive straight connection and robust safety and EMI standards ensure safe, stable performance. Ideal for continuous operation in industrial, commercial, or home environments requiring efficient power conversion. Size measures approximately 59mm x 40.9mm x 26.5mm, with a weight of 120 grams plus a 30% tolerance.
MULTICOMP PRO MP004760 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: 7.5V DC
- Output Current Range: 2A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Load Regulation: 5%
- Line Regulation: 41%
- Ripple & Noise: 200mVp-p
- Efficiency: 81.39% Min
- Short-Circuit Protection: Auto-recovery
- Over Current Protection: >1.8A
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Safety Standard: GS/CE (EN60950-1)
- Electromagnetic Compatibility Standard: ENet000-3-2
- MTBF: 50,000 hours
- Size: Max 59mm (L) x 40.9mm (W) x 26.5mm (H)
- Weight: 120 grams ±30%
Buy the Multicomp 15W – Reliable Power Adapter for Industrial Applications
Ensure your devices operate smoothly with the reliable 15W wall plug power adapter, delivering 7.5V DC at 2A. Certified RoHS, CE approved, with high efficiency and safety features including auto-recovery short-circuit protection and overcurrent safeguarding. Its compact size makes it ideal for industrial, commercial, and home equipment that demands stable power. Designed for continuous operation, it supports a wide input voltage range with excellent EMI standards, making it the perfect choice for reliable energy supply across multiple environments. Buy online now for peace of mind and performance.
Buy Multicomp 15W wall plug adapter now and experience reliable, efficient power conversion suited for diverse industrial and commercial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004760?
You can click on the BUY or RFQ button to purchase MP004760 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004760?
You can download the MP004760 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004760?
MULTICOMP PRO
