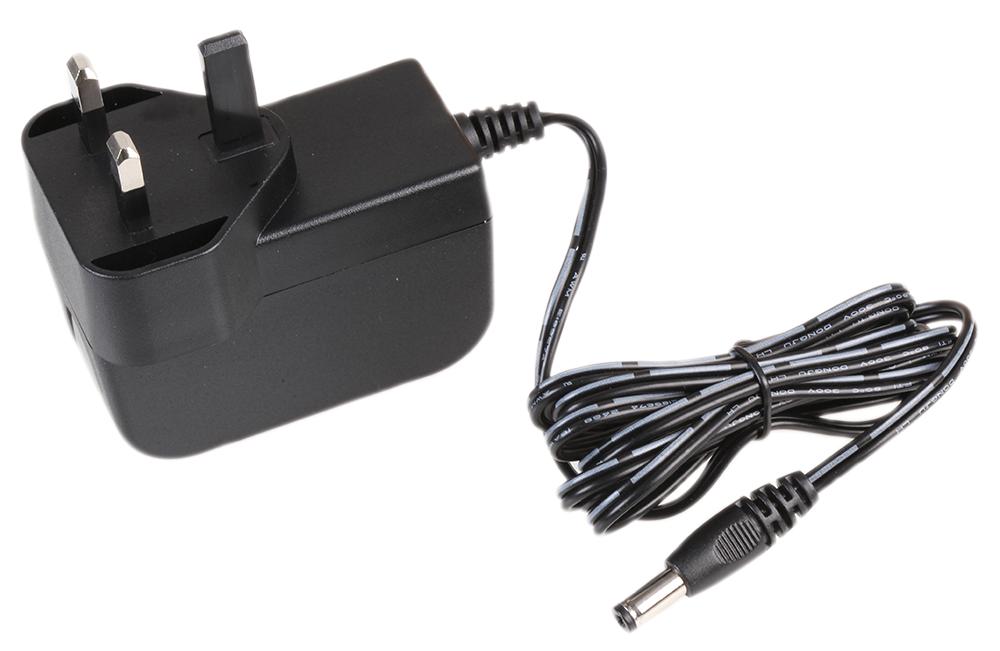

MULTICOMP PRO MP004763 Power Adapter
This 18W UK Wall Plug Adapter provides reliable 9V DC output at 2A, suitable for various electronic devices. Compact and efficient, it features a fixed UK plug head, level VI efficiency, and compliance with CE standards. The power supply supports input voltages from 90V to 264V AC and operates within a temperature range of 0°C to +40°C. Equipped with over current, over voltage, and short circuit protections, it ensures safe and consistent power delivery for general applications and compatible gadgets. Dimensions are 74mm x 51mm x 77mm, with a weight of 139g, making it a practical and versatile power solution.
MULTICOMP PRO MP004763 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 4THz to 63Hz
- Input Current Rated: 0.6A Max
- Output Voltage Rating: 9V DC
- Output Current Range: 2A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight Angle
- Total Output Regulation: 45%
- Line and Load Regulation: 42%
- Ripple & Noise: 200mVp-p
- Efficiency: 85.45% Min
- Over Voltage Protection: 18V DC Max
- Over Current Protection: 4A max with auto-recovery
- Short-Circuit Protection: Yes, protected from damage
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Safety Standard: T-LICENSE (BS EN60950-1)
- EMI Standard: CE (EN55032)
- MTBF: 50,000 Hours
- Size: 74mm (L) x 51mm (W) x 77mm (H)
- Weight: 139g
Buy the Multicomp Series 18W Power Adapter: MP004763
Order the Multicomp 18W UK Power Adapter MP004763 online today and enjoy a dependable, efficient power solution for your devices. Featuring a 9V DC output at 2A, high-level safety protections, and compact design, this adapter is perfect for general electronic applications. Its high efficiency minimizes energy loss, and its robust protections safeguard against overcurrent, overvoltage, and short circuits. With a size of 74mm x 51mm x 77mm and weighing just 139g, it’s an optimal choice for secure, portable, and reliable power delivery across a wide temperature range. Shop now for fast, secure online purchase and enhanced device safety.
Buy Multicomp 18W UK Wall Plug Adapter MP004763 now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004763?
You can click on the BUY or RFQ button to purchase MP004763 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004763?
You can download the MP004763 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004763?
MULTICOMP PRO
