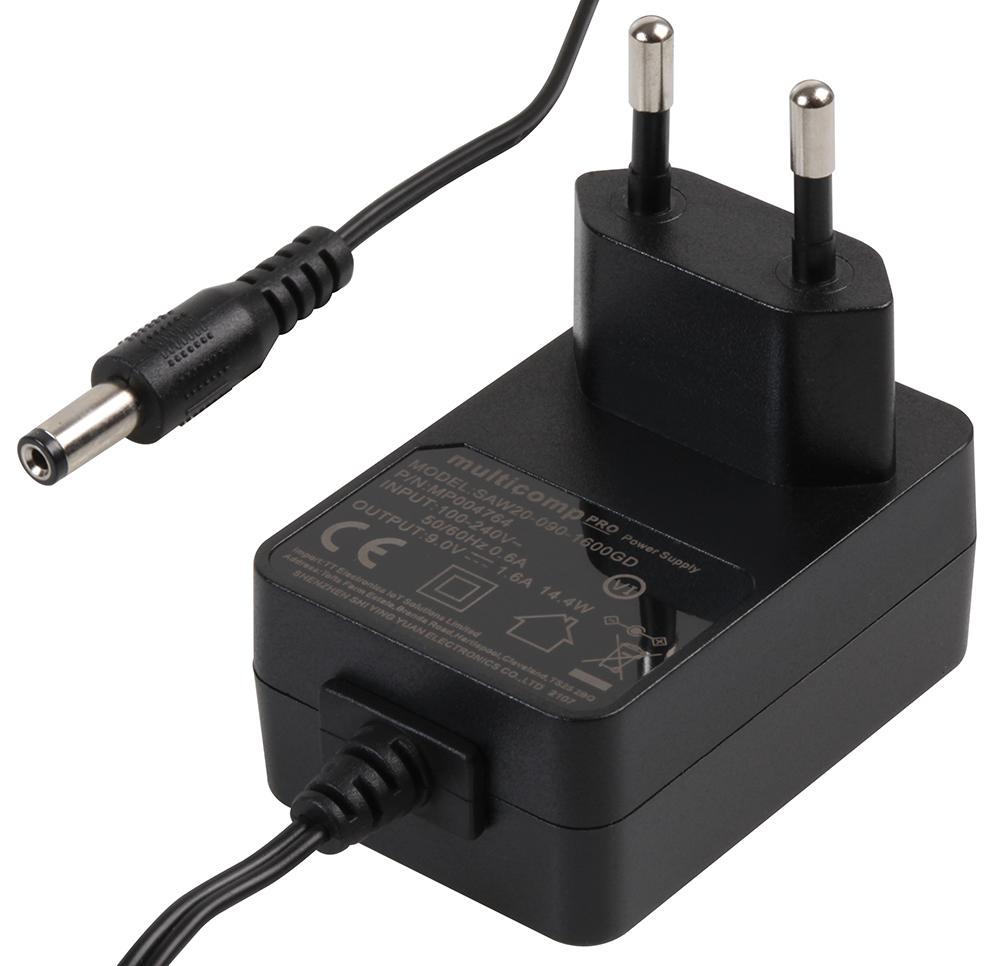

MULTICOMP PRO MP004764 EU Power Adapter
The 15W EU Wall Plug Adapter offers a compact and reliable power solution suitable for various general applications, delivering 15 Watts of continuous power through a European fixed AC head. It features class II double insulation, RoHS compliance, and Level VI efficiency for energy-saving operation. This switched-mode power supply provides an output of +9V DC at 1.6A, with high safety standards including over-current, short-circuit, and insulation protections. Its robust construction withstands temperatures from 0°C to +40°C and humidity up to 90%, ensuring dependable performance in daily use.
MULTICOMP PRO MP004764 EU Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current: Rated 0.6A Max
- Output Voltage Rating: +9V DC
- Output Current Range: 1.6A
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight
- Line Regulation: +1%
- Load Regulation: +5%
- Ripple & Noise: 200mVp-p
- Efficiency: 83.92% Min
- Over Current Protection: >1.92A
- Short-Circuit Protection: No Damage, self-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Safety Standard: GS/CE EN60950-1
- EMI Standard: ENet000-3-2
- MTBF: 50,000 Hours
- Size: Max. 59mm (L) x 40.9mm (W) x 26.5mm (H)
- Weight: 120g
Buy the Buy multicomp Series MP004764 Power Supply Part Number MP004764 Online
Secure your multicomp Series 15W EU Wall Plug Adapter today with a simple online order. Designed for reliable operation, this power supply offers a +9V DC output at 1.6A, ideal for various devices. Its compact size, high efficiency, and safety features such as over-current and short-circuit protection make it perfect for general power needs. With RoHS compliance and Level VI energy rating, it ensures environmentally friendly and energy-efficient performance. Get this dependable power solution now from trusted online suppliers and power your devices with confidence.
Order your multicomp Series MP004764 15W EU Wall Plug Adapter today and ensure dependable power for your general applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004764?
You can click on the BUY or RFQ button to purchase MP004764 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004764?
You can download the MP004764 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004764?
MULTICOMP PRO
