MULTICOMP PRO MP004775 Power Adapter

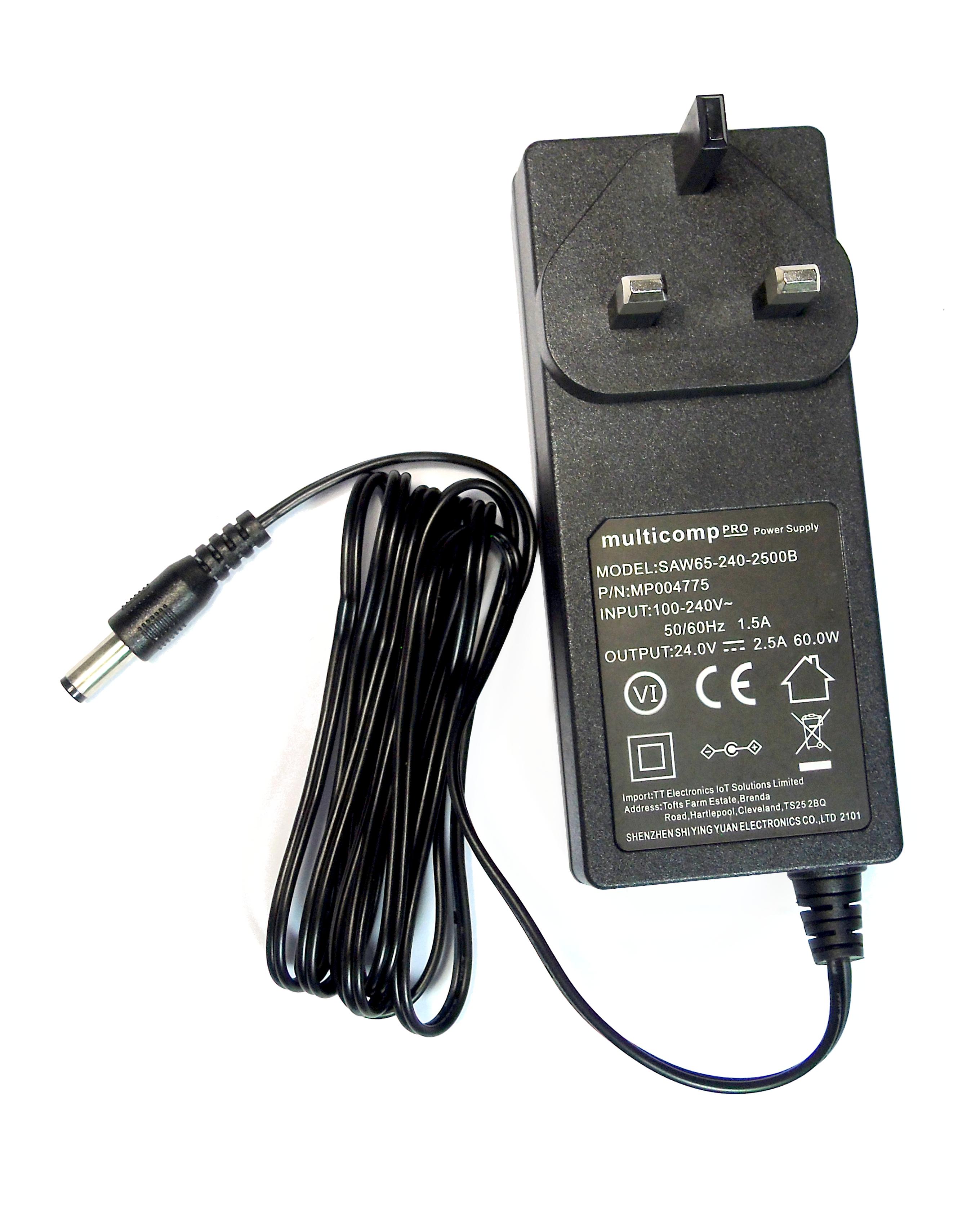

This compact 60W UK wall plug adapter delivers 24V DC with a maximum current of 2.5A, suitable for general power applications. It features a fixed AC head, compact design, and efficient switched mode power supply technology. Compliant with RoHS, CE, and Level VI standards, it provides reliable power with a high efficiency of 88%. The adapter includes overload and short-circuit protection, operates within 0°C to +40°C, and has a size of approximately 147 mm x 51 mm x 33.5 mm, making it ideal for various industrial and electronic devices requiring stable 24V DC power.
MULTICOMP PRO MP004775 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 1.5A max.
- Output Voltage Rating: 24V
- Output Current Range: 2.5A max.
- Output Connection Type: 2.1mm x 5.5mm x 12mm Centre Positive — Straight Angle
- Line Regulation: 41%
- Load Regulation: 15%
- Ripple & Noise: 200mVp-p
- Efficiency: 88%
- Over Current Protection: 3A max with self-recovery
- Short Circuit Protection: No damage, self-recovery
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- Leakage Current: 0.25mA max
- Size: 147 mm (L) x 51 mm (W) x 33.5 mm (H)
- Weight: 270g
- Safety Standard: BS EN60950-1
- EMI Standard: EN55022
- MTBF: 50,000 hours
- Regulator Type: Switched Mode Power Supply
Buy the Multicomp Series Power Adapter: 60W UK Plug MP004775
Purchase the multicomp 60W UK power adapter with 24V DC output and 2.5A current online today. This reliable power supply features high efficiency at 88%, meets RoHS and CE standards, and includes overload and short-circuit protections for safe operation. Its compact size and fixed UK plug make it suitable for various industrial and electronic applications. With a durable Switched Mode design and a MTBF of 50,000 hours, this adapter ensures long-lasting performance for all your power needs.
Buy multicomp MP004775 now and experience reliable and efficient power for your devices with Level VI high efficiency and safety standards.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004775?
You can click on the BUY or RFQ button to purchase MP004775 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004775?
You can download the MP004775 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004775?
MULTICOMP PRO
