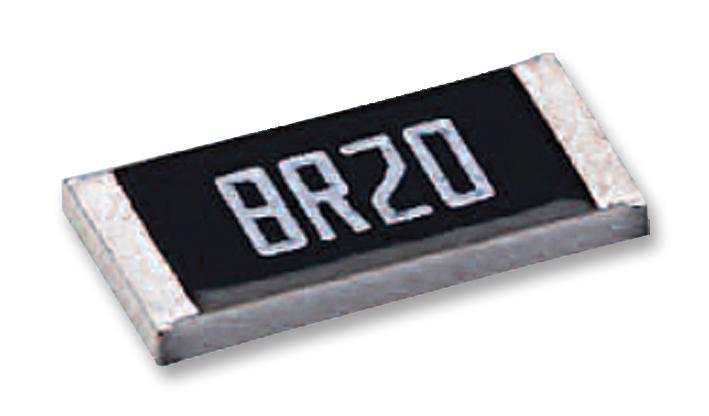

MULTICOMP PRO MP005061 Tantalum Nitride Chip Resistor
High-stability tantalum nitride thin film precision chip resistors designed for demanding industrial environments. These RoHS-compliant resistors offer excellent humidity, moisture, and sulfur resistance, making them ideal for automotive, medical, testing, and communication applications. Available in various resistance values from 47 ohms to 240K ohms, they feature low TCR, excellent overload and endurance performance, and meet AEC-Q200 standards. Compact sizes 0402, 0603, 0805, and 1206 ensure easy surface-mount integration, with proven reliability in harsh conditions for sensitive electronic systems.
MULTICOMP PRO MP005061 Tantalum Nitride Chip Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206
- Resistance range: 47Ω to 240KΩ
- Power ratings: 1/16W to 1/2W depending on size
- Operating temperature: -55°C to +155°C
- TCR: 25ppm/°C
- Maximum voltage: 50V to 400V depending on size
- Resistance tolerance: 0.1%
- Environmental compliance: RoHS, AEC-Q200
- Tested for humidity, sulfur, overload, and thermal cycling
- Dimensions: tailored for each size, e.g., 0402: 1.0 x 0.5 mm, 1206: 3.2 x 1.6 mm
- Certification: RoHS, UL, MIL-STD-202, IEC-60115
- Reliability in high sulfur environments, suitable for automotive and industrial use
Buy the Multicomp RCW Series – Reliable Tantalum Nitride Resistors for Industrial Applications
Explore the high stability and reliability of Multicomp RCW series tantalum nitride thin film resistors available online. Designed for automotive, medical, and industrial equipment, these resistors meet stringent standards like AEC-Q200 and RoHS compliance. With resistance values spanning from 47 ohms to 240K ohms and various size options, they ensure excellent performance even in humid, sulfur-rich, and harsh environments. Purchase now to optimize your electronic systems' durability and efficiency with proven, tested tolerance and environmental resistance.
Buy Multicomp RCW Series tantalum nitride thin film resistors now and experience unmatched reliability and performance in demanding industrial environments.
