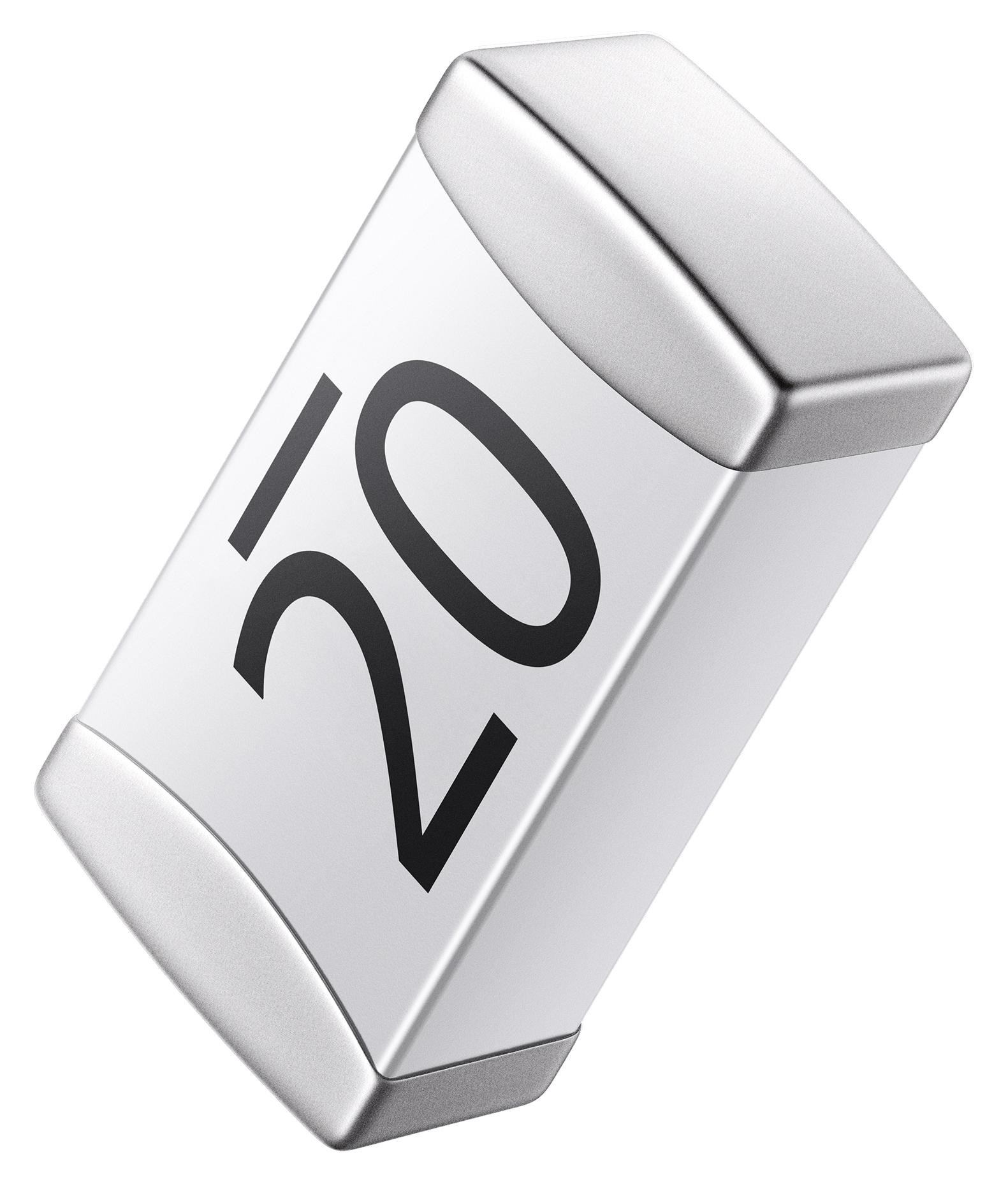

MULTICOMP PRO MP005486 Surface Mount Fuse
This fast-acting surface-mount fuse is designed for circuit protection in space-constrained applications, suitable for battery packs and electronic devices. Made with a ceramic body and silver, nickel, and tin terminations, it offers reliable performance with an amperage rating from 10A to 20A and a voltage rating of 24V. It features a quick response time, opening within 4 hours at rated current, and operates efficiently in temperatures from -55°C to +125°C. Its small dimensions and high interrupting capacity make it ideal for compact circuit designs.
MULTICOMP PRO MP005486 Surface Mount Fuse Specifications:
- Material: Body - Ceramic, Termination - Silver(Ag)/Nickel(Ni)/Tin(Sn), Fuse Element - Silver(Ag)
- Operating Temperature: -55°C to +125°C
- Ampere Ratings: 10A, 12A, 15A, 20A
- Voltage Rating: 24V DC
- Interrupting Rating: 250A at 24V DC
- Opening Time: 4 hours 5 seconds at rated current
- Dimensions: Millimetres - Length 3.1 mm, Width 1.6 mm
- Agency Approvals: RoHS, Recognized component for Canada and US
Buy the Multicomp Series SMD Fuse: 24V 10A-20A 1206
Enhance your electronic protection with our high-quality surface mount fuse designed for space-constrained applications. This 1206 SMD fuse provides fast acting response at 24V with ratings from 10A to 20A, enabling safe operation of battery packs and electronic circuits. Its ceramic body with silver, nickel, and tin terminations ensures durability and compatibility with modern circuit boards. Perfect for technicians seeking reliable, compact, and easy-to-install fuse solutions to prevent circuit damage and ensure device longevity.
Buy Multicomp 1206 series SMD fuse now and experience unmatched reliability and high performance in electronic circuit protection.
