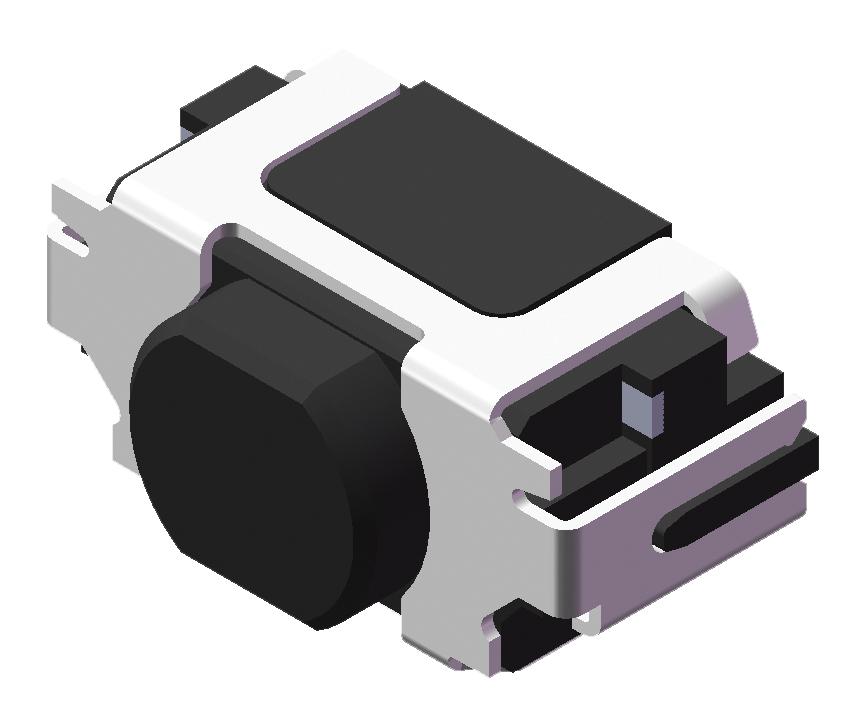

MULTICOMP PRO MP005531 Surface Mount Tact Switch
This surface mount tact switch features a compact 4.5mm x 2.2mm size with a side push mid-mount design, offering durability of 600,000 cycles. It is suitable for applications such as smartphones, portable audio devices, digital cameras, and other 3C products. The switch has a contact rating of 50mA at 12V AC, with a contact resistance max of 500mΩ. It operates reliably within a temperature range of -30°C to +85°C, making it ideal for compact, high-reliability electronic devices that require precise tactile feedback and long operational life.
MULTICOMP PRO MP005531 Surface Mount Tact Switch Specifications:
- Contact Rating: 50mA 12V AC
- Contact Resistance: 500mΩ max
- Insulation Resistance: 100MΩ MIN at 100V DC
- Dielectric Strength: 100V AC for 1 minute
- Operating Force: 160 +50gf/220 +50gf/250 +80gf
- Travel: 0.15mm
- Operating Life: 600,000 cycles
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +90°C
- Physical Dimensions: 4.5mm x 2.2mm, height 0.60mm
- Switch Type: SPST, surface mount, with optional post
Buy the Buy multicomp surface mount tact switch Part Number MP005531 Online
Purchase the multicomp surface mount tact switch MP005531 online today to ensure your electronic projects benefit from its compact design, high operational lifespan of 600,000 cycles, and reliable performance. Ideal for smartphones, digital cameras, and portable devices, this switch guarantees durability and precise tactile feedback. Its RoHS compliance and robust technical specifications make it suitable for a wide range of applications, providing you with a trusted component for high-quality electronics development or repair. Don’t miss out—order now and enhance your product’s quality and reliability!
Buy multicomp surface mount tact switch MP005531 now and experience long-lasting reliability with high durability for your electronic device needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005531?
You can click on the BUY or RFQ button to purchase MP005531 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005531?
You can download the MP005531 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005531?
MULTICOMP PRO
