MULTICOMP PRO MP005551 Microswitch
Industrial through-hole microswitches featuring snap action design, high durability, and UL compliance. Suitable for use in various electronic, communication, security, household, and control applications, these switches offer electrical ratings up to 3A at 125V AC and are capable of enduring over 1,000,000 cycles. They come with different actuator options like pin plungers, hinges, bent, and simulated roller levers, with operating forces generally around 26-40gf. Constructed to operate reliably at temperatures from -25°C to +75°C, they include PCB terminal models resistant to flux. These microswitches ensure precise control with minimal movement differential and overtravel features, and meet safety standards including dielectric strength of AC 1500V for 1 minute.
MULTICOMP PRO MP005551 Microswitch Specifications:
- Contact Rating: 3A at 125V AC; 0.1A at 30V DC
- Electrical Durability: 8,000 cycles minimum
- Mechanical Durability: 1,000,000 cycles minimum
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: AC 1500V for 1 minute between current-carrying parts and ground
- Operating Temperature: -25°C to +75°C
- Actuators: Pin plunger, hinge, bent, simulated roller lever
- Physical Dimensions: Typical actuator travel around 0.8-3.0mm, operating force 26-40gf
- Terminal Type: PCB resistant to flux, snap-action design ensures reliable switching

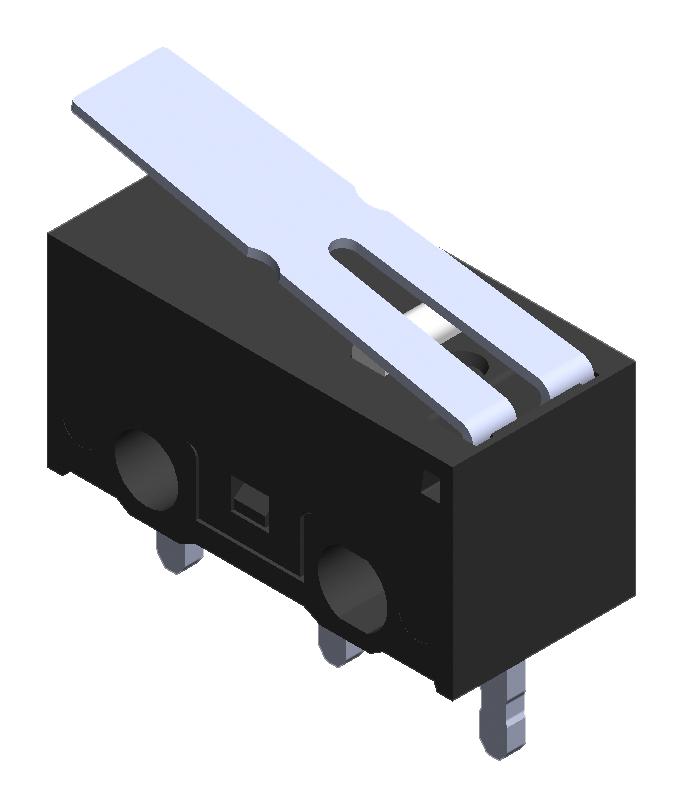

Buy the Multicomp Series Microswitches: Through Hole Snap Action: MP005551
Order the multicomp Series microswitch MP005551 online today for high durability and reliable performance in electronic, automation, and control applications. These through-hole snap action switches feature various actuators such as pin plungers, hinges, and rollers, rated up to 3A at 125V AC, with over a million cycles of operational life. Manufactured to meet UL safety standards, they operate within a temperature range of -25°C to +75°C, ensuring consistent performance in diverse environments. Perfect for use in security, communication, household, and industrial equipment, these switches guarantee precise, dependable switching action for your projects.
Get multicomp Series MP005551 microswitch today—designed for precise control, long-lasting durability, and versatile actuator options for reliable electronic switching.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005551?
You can click on the BUY or RFQ button to purchase MP005551 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005551?
You can download the MP005551 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005551?
MULTICOMP PRO
