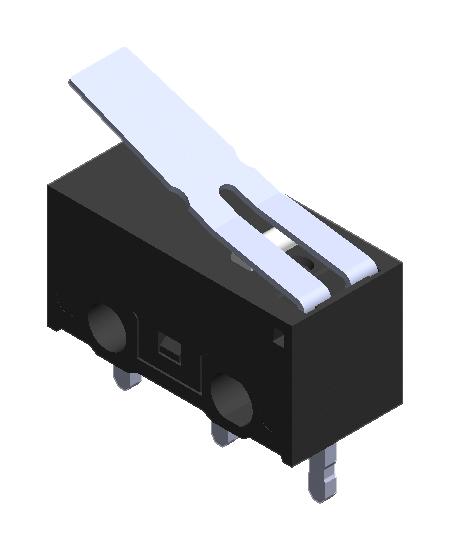

MULTICOMP PRO MP005559 Microswitch
The product is a through-hole snap-action microswitch designed for durability and reliable switching in electronic applications. It features a variety of actuators including hinge, bent, pin plunger, and simulated roller levers, with ratings up to 3A at 125V AC and 0.1A at 30V DC. The switch exhibits excellent electrical and mechanical durability with a long operational life, making it suitable for use in household appliances, communication equipment, security systems, and user interface devices. Its compact size and high reliability support both manual and automated systems requiring precise switching.
MULTICOMP PRO MP005559 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 0.1A at 30V DC
- Electrical Durability: 8,000 cycles MIN.
- Mechanical Durability: 1,000,000 cycles MIN.
- Contact Resistance: 100mΩ MAX.
- Insulation Resistance: 100MΩ MIN.
- Operating Temperature Range: -25°C to +75°C
- Overtravel: 0.55mm MIN.
- Operating Force: 26gf to 40gf depending on actuator
- Release Force: 2gf MIN.
- Movement Differential: 0.20mm to 0.50mm
- Operating Position: 6.9mm to 9.6mm
- Free Position: 1.5mm to 14.0mm
- Actuators include hinge, bent, pin plunger, simulated roller levers
- RoHS compliant, UL and CSA certified
- Suitable for PCBs, with snap-action operation, compact form factor
Buy the Multicomp Series Microswitch: 3A Through-Hole SPDT Switch MP005559
Purchase the durable and reliable microswitch MP005559 online now. Designed for long life and high performance, it fits various electronic devices and systems. With multiple actuator options like hinge, bent, and roller levers, it ensures precise switching with ratings up to 3A at 125V AC. Easy to install on PCB or in panel mount configurations, this switch offers excellent electrical and mechanical durability. Perfect for household appliances, communication equipment, security systems, and automation projects. Buy online today for fast delivery and dependable performance.
Get Multicomp Series MP005559 today—built for precision, long-lasting durability, and versatile actuator options for industrial and household applications.
