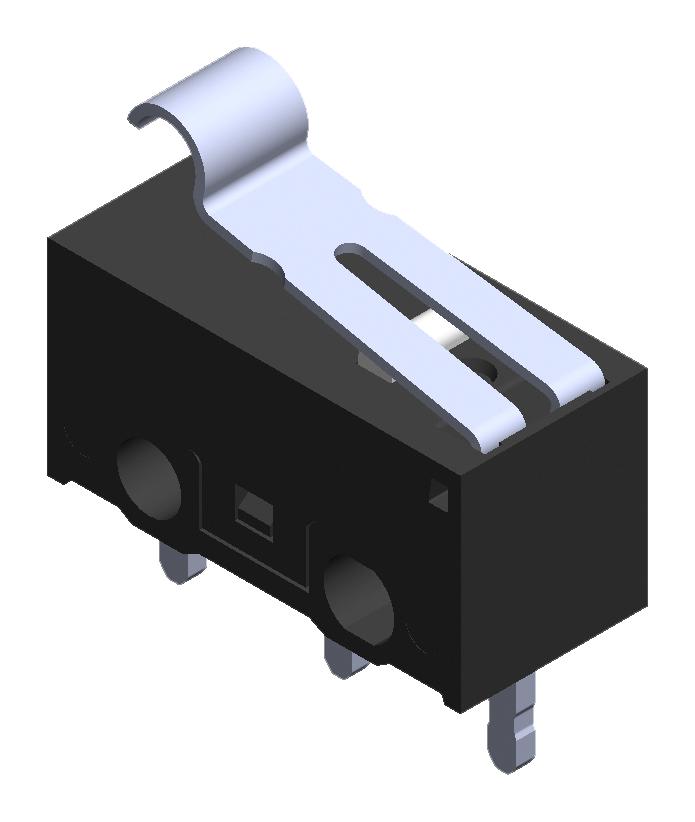

MULTICOMP PRO MP005564 Microswitch
This miniature through-hole snap-action microswitch offers reliable switching with a long lifespan of over 1,000,000 cycles. Suitable for electronic, household, communication, and security applications, it features various actuator options like hinge, bent, pin plunger, and simulated roller lever. Rated for 3A at 125V AC, it ensures safety with 1500V dielectric strength. Operating temperature ranges from -25°C to +75°C, providing high durability and consistent performance in demanding environments. Its compact design makes it ideal for precise control in industrial and consumer electronics.
MULTICOMP PRO MP005564 Microswitch Specifications:
- Contact Rating: 3A at 125V AC, 1.5A at 250V AC
- Dielectric Strength: AC 1500V, 1 minute
- Insulation Resistance: 100MQ MIN.
- Contact Resistance: 100mΩ MAX.
- Operating Temperature: -25°C to +75°C
- Durability: Mechanical over 1,000,000 cycles, electrical over 8,000 cycles MIN.
- Operating Force: 26gf to 40gf depending on actuator
- Release Force: 2gf MIN.
- Overtravel: 0.20mm to 0.55mm MIN.
- Movement Differential: 0.20mm to 0.50mm MAX.
- Operating Position: approx. 6.9-9.6mm
- Free Position: 1.5mm to 14.0mm MAX.
- RoHS compliant
- Certifications: UL, CSA
- Design: Through hole, snap-action, various actuator options
- Suitable for control and switching in diverse electronic devices
Buy the Multicomp Pro MP005564 – Reliable Microswitch for Industrial Applications
Purchase the reliable microswitch online today for your electronic, household, security, or industrial projects. Featuring multiple actuator types like hinge, pin plunger, and roller lever, it ensures precise switching with over one million cycles of lifespan. Rated at 3A AC, it handles high loads safety and efficiently, suitable for demanding environments. Compact and RoHS compliant, it offers excellent insulation resistance and dielectric strength of 1500V, making it an ideal component for control circuits, automation systems, and electronic devices. Order now for fast delivery and trusted performance.
Get Multicomp Pro MP005564 today—built for precision and long-lasting durability in control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005564?
You can click on the BUY or RFQ button to purchase MP005564 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005564?
You can download the MP005564 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005564?
MULTICOMP PRO
