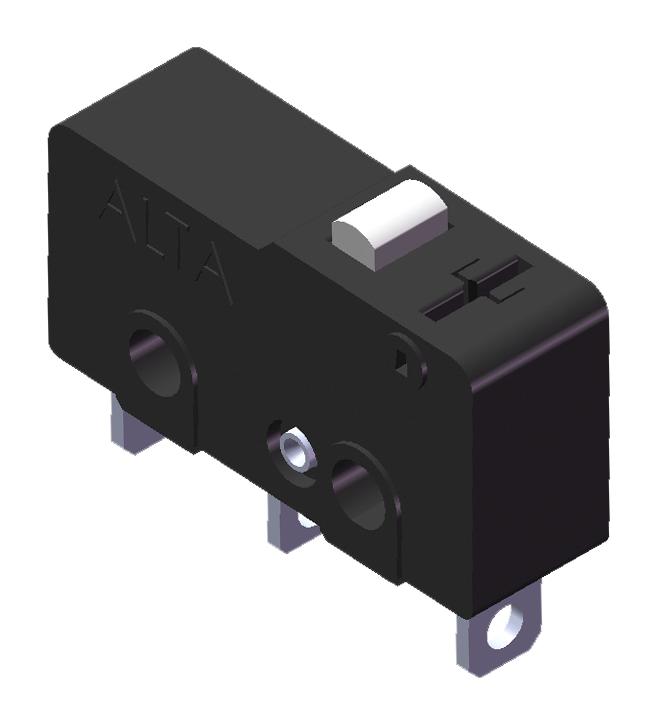

MULTICOMP PRO MP005574 Panel Mount Microswitch
Panel mount snap action microswitches designed for reliable circuit control in home appliances, vacuum cleaners, printers, and white goods. These switches feature metal parts conforming to UL standards, solder terminals, and high durability with a long operational life. Operating within temperatures from -25°C to +75°C, they provide consistent performance with a contact rating of 3A at 30V DC and 5A at 125V AC. Suitable for various actuator types like hinge, bent lever, and simulated roller lever, ensuring versatile installation and dependable operation.
MULTICOMP PRO MP005574 Panel Mount Microswitch Specifications:
- Contact Rating: 3A at 30V DC, 5A at 125V AC
- RoHS Compliant
- Mechanical Durability: 10,000,000 cycles MIN.
- Electrical Durability: 10,000 cycles MIN.
- Contact Resistance: 50mΩ MAX.
- Insulation Resistance: 100MQ MIN.
- Dielectric Strength: AC 1500V 1 minute between current-carrying metal parts and ground
- Operating Temperature: -25°C to +75°C
- Actuator Types: Hinge Lever, Bent Lever, Simulated Roller Lever, Roller Lever
- Operating Force: 50gf (0.49N) MAX.
- Release Force: 60gf (0.06N) MIN.
- Overtravel: 1.20mm MIN.
- Movement Differential: 0.80mm MAX.
- Operating Position: 8.8+0.8mm to 14.5+0.8mm depending on model
- Free Position: up to 19.3mm
- Mounting: Panel mount
- Termination: Solder terminals
- Operating Temperature Range: -25°C to +75°C
Buy the Multicomp Series Microswitch: Panel Mount Snap Action 3A 125V AC - MP005574
Purchase the high-quality Multicomp Series MP005574 panel mount microswitch online today and enhance your appliance control systems with dependable, RoHS-compliant switching components. Engineered for long-term durability, these switches support multiple actuator types and deliver consistent performance with a contact rating of 5A at 125V AC and 3A at 30V DC. Ideal for home appliances, printers, and white goods, they offer excellent insulation resistance and dielectric strength, ensuring safety and durability in your applications.
Buy Multicomp Series MP005574 now and ensure reliable circuit switching in your appliances with durable, high-performance microswitches designed for long-lasting use.
