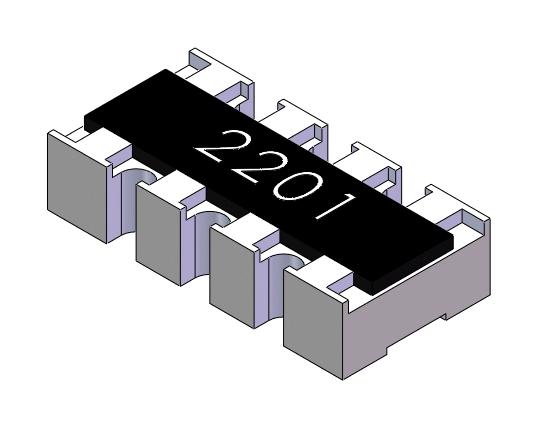

MULTICOMP PRO MP005580 Resistor Array
This thick film chip resistor array features four isolated elements with a power rating of 1/16W, designed for high reliability in industrial electronics. It incorporates Ag/Pd electrodes and a Sn substrate plating for corrosion resistance. The array supports resistance values from 100R to 1M with ±5% tolerance and a temperature coefficient of ±200 PPM/°C. Suitable for surface-mount applications, it endures temperature ranges from -55°C to +155°C and boasts RoHS compliance, ensuring environmentally safe manufacturing. Ideal for compact, precise resistance control in complex circuit assemblies.
MULTICOMP PRO MP005580 Resistor Array Specifications:
- Type: 4 Elements, 0804 size
- Power Rating: 0.0625W (1/16W) at 70°C
- Rated Current: 1A
- Max. Working Voltage: 50 V
- Max. Overload Voltage: 100 V
- Dielectric Withstanding Voltage: 100 V
- Temperature Range: -55°C to +155°C
- Ambient Temperature: 70°C
- Electrode Material: Ag/Pd
- Substrate Plating: Sn
- Resistance Range: 100R to 1M with ±5% tolerance
- Resistance Coefficient: ±200 PPM/°C
- RoHS Compliant
- Dimensions (mm): Length 3.0, Width 1.2, Height 0.5
- Marking: 4 Digits for E-26 series, 2 or 3 digits + zeros for E-24 series
- Environmental: RoHS Compliant, Humidity and Temperature Cycling Resistance
- Solderability: 245°C for 2-3 sec, dipping method
- Vibration & Mechanical Resistance: Meets industry standards
- Reliability: Proven durability under thermal cycling and load conditions
Buy the Multicomp Series Resistor Array High-Reliability: MP005580
Order a Multicomp resistor array today to enhance your circuit precision and reliability. Our high-quality 4-element thick film surface-mount resistors, RoHS compliant, offer excellent thermal stability and resistance accuracy, ideal for demanding industrial electronics. With easy online purchasing, swift delivery, and technical support, upgrading your electronic assemblies has never been easier. Trust in our proven durability under thermal cycling, humidity, and mechanical stress to ensure your projects meet the highest standards of quality and performance. Shop now for maximum efficiency and reliability.
Buy Multicomp resistor arrays now and experience unmatched reliability and performance in your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005580?
You can click on the BUY or RFQ button to purchase MP005580 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005580?
You can download the MP005580 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005580?
MULTICOMP PRO
