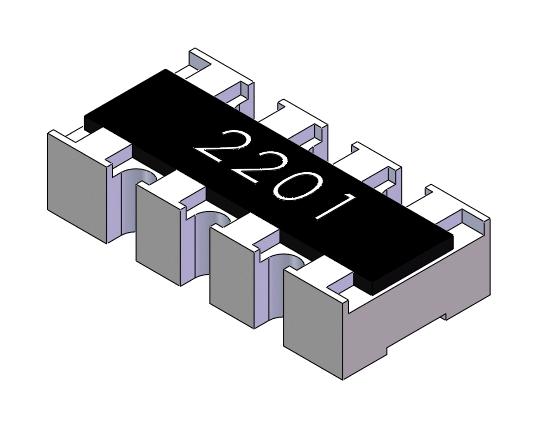

MULTICOMP PRO MP005596 Resistor Array
This product is a thick film chip resistor array with four isolated elements, designed for high reliability and thermal stability in industrial electronic circuits. It features a 1/16W power rating, a resistance range from 100 ohms to 1 megaohm, with 5% tolerance. The resistor array uses Ag/Pd electrodes on a substrate plated with tin for durability. Its construction ensures excellent solderability, resistance to thermal cycling, and humidity, making it ideal for precise, durable applications in manufacturing and automation systems. Dimensions are compact, with a typical length of 2.4mm and height of 0.5mm, supporting high-density circuit designs.
MULTICOMP PRO MP005596 Resistor Array Specifications:
- Power Rating: 0.0625W (1/16W) at 70°C, derated above that
- Resistance Range: 100Ω to 1MΩ with ±5% tolerance
- Resistance Change Rate: ±5% over specified temperature and humidity cycles
- Temperature Range: -55°C to +155°C
- Dielectric Withstanding Voltage: 100V
- Max Working Voltage: 50V
- Rated Current: 1A for jumper connections
- Electrode Material: Ag/Pd
- Substrate Plating: Sn
- Dimensions: Length 2.4mm ±0.1, Width 0.45mm ±0.1, Height 0.5mm ±0.05
- RoHS Compliant
- Marking: 4Digits (significant figures plus zeros) or 3Digits plus R for decimal below 100Ω
- Resistance Tolerance: ±5%
- Resistance T.C.R.: Standard
Buy the Multicomp resistor arrays – Reliable resistor for Industrial Applications
Ensure precise and reliable circuit performance by purchasing the Multicomp Series resistor array online. Designed for industrial applications, this 4-element thick film resistor array offers excellent stability, RoHS compliance, and easy integration into various electronic systems. Its compact size supports high-density designs, making it ideal for manufacturing, automation, and repair projects. Buy online now to benefit from fast delivery, competitive pricing, and trusted quality for all your electronic component needs.
Order your Multicomp Series MP005596 resistor array today and enhance your projects with dependable high-density resistor solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005596?
You can click on the BUY or RFQ button to purchase MP005596 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005596?
You can download the MP005596 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005596?
MULTICOMP PRO
