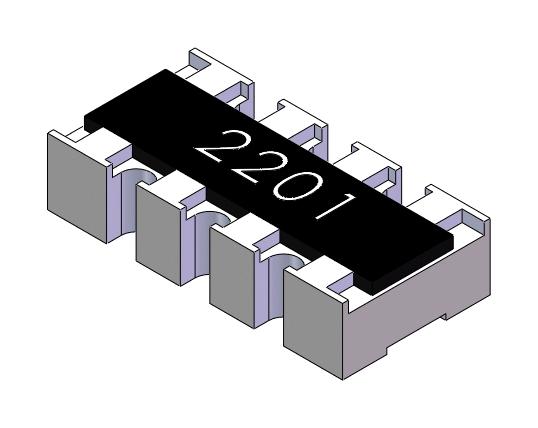

MULTICOMP PRO MP005617 Thick Film Resistor Array
The chip resistor array features four isolated thick film resistors with a power rating of 0.0625W (1/16W), suitable for precise electronic applications. Constructed with Ag/Pd electrodes and Sn plating, it offers high reliability with minimal resistance change under temperature variations, overloads, and humidity. The array measures approximately 3 mm in length, 1 mm in width, and 0.5 mm in height, with resistance values ranging from 100 ohms to 1 megaohm. Marked with four digits indicating resistance. Ideal for surface-mount circuits needing compact, durable resistors with excellent performance stability.
MULTICOMP PRO MP005617 Thick Film Resistor Array Specifications:
- Power Rating: 0.0625W at 70°C, derates above 70°C
- Resistance Range: 100Ω to 1MΩ, standard T.C.R. < 50ppm/°C
- Operating Temperature: -55°C to +155°C
- Dimensions: Length 3 mm, Width 1 mm, Height 0.5 mm
- Material: Ag/Pd electrodes, Sn substrate plating
- Marking: 4-digit for E-26 series, 3 digits + zero for E-24 series
- Voltage Ratings: Max 50V working, max overload 100V
- Resistance change: within 5% under temperature cycling and humidity test
- Solderability: 245°C ±3°C, 2-3 sec dip, >95% tin coverage
- Durability: withstand soldering, mechanical, and humidity stresses
Buy the Multicomp Series Thick Film Resistor: MP005617
Purchase the Multicomp Series Thick Film Resistor Array MP005617 online now and benefit from its precise resistance values, high durability, and excellent thermal stability. This surface-mount component features four isolated resistors rated at 1/16W with resistance values from 100 ohms to 1 megaohm, suitable for demanding circuitry. Its construction with Ag/Pd electrodes and Sn plating ensures long-term reliability under temperature and humidity stresses. Ideal for compact electronic designs requiring high performance, minimal resistance change, and robust solderability, available now for fast delivery.
Order your Multicomp Series Thick Film Resistor Array MP005617 today and ensure your electronic projects have reliable high-performance resistors.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005617?
You can click on the BUY or RFQ button to purchase MP005617 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005617?
You can download the MP005617 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005617?
MULTICOMP PRO
