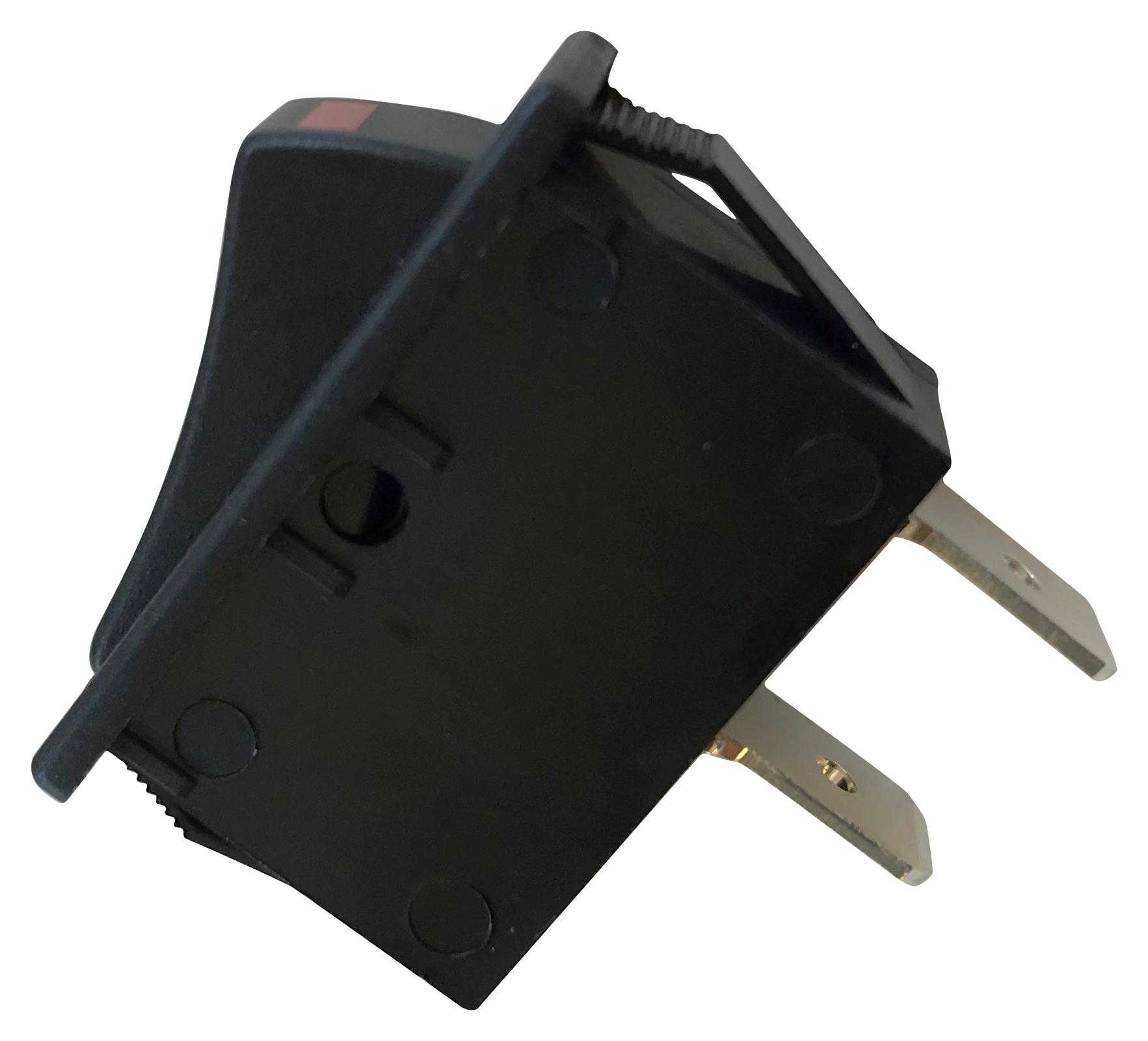

MULTICOMP PRO MP005743 Industrial rocker switch
The rocker switch is a durable, SPST on-off switch with a red flash indicator, rated at 250V and 7.5A. Crafted from nylon housing and rocker materials, it features copper alloy terminals with silver tin oxide contacts for reliable performance. Designed for panel mounting with a 30mm hole size, it withstands temperatures from -25°C to +125°C and supports up to 10,000 cycles at full load. Suitable for industrial control applications requiring high insulation resistance and RoHS compliance, it offers a robust, long-lasting switching solution.
MULTICOMP PRO MP005743 Industrial rocker switch Specifications:
- Rating: 250V AC / 7.5A
- Housing Material: Nylon #66 UL 94V-2
- Rocker Material: Nylon #66 UL 94V-2
- Terminal Material: Copper alloy AG plated
- Contact Material: Ag-SnO2in202(10)/Cu
- Panel Hole Size: 30mm
- Maximum Contact Resistance: 30MQ
- Minimum Insulation Resistance: 100MQ
- Withstand Voltage: 500VDC 100MQ
- Electrical Life: 10,000 Cycles at Full Load
- Operation Force: 400gf to 700gf
- Operating Temperature: -25°C to +125°C
- Features: Red flash indicator, RoHS compliant, UL, ENEC, SEMKO certified
Buy the Multicomp MP005743 – Reliable Switch for Industrial Applications
Purchase the industrial rocker switch from Multicomp online today. Designed for durability, it features a red flash indicator, robust nylon housing, and high insulation resistance. Ideal for controlling machinery, automation systems, and industrial equipment, this switch offers a long mechanical life of 10,000 cycles and a wide temperature range from -25°C to +125°C. Its panel-mount design with a 30mm hole ensures easy installation. Trusted for safety, RoHS compliance, and reliable performance, buy now for your industrial projects.
Get Multicomp MP005743 today—built for durability and reliable switching performance in industrial control systems.
