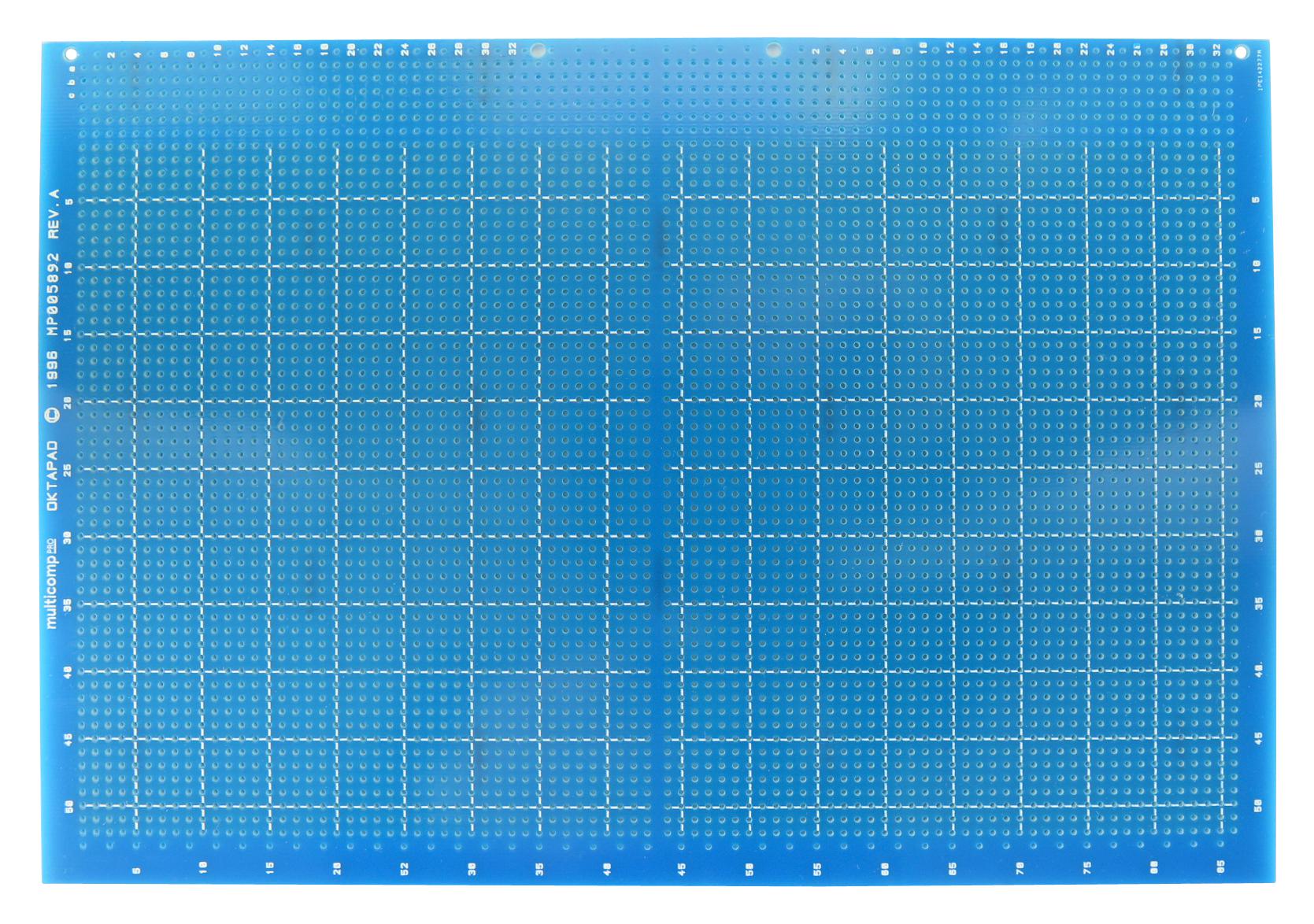

MULTICOMP PRO MP005892 Prototyping Eurocard Stripboard
The Eurocard Prototyping Stripboard series features single and double height formats, designed for versatile prototyping with wiring and assembly using stripboard. Made from epoxy glass or FR4, these boards have a thickness of 1.6mm and include a copper thickness of 1 oz/ft². They incorporate a unique Oktapad™ format, with silkscreen references, DIN 41612 connector mounting holes (32/64/96 way), and a colander ground plane for maximum screening. The hole matrix measures 2.54mm x 2.54mm, and hole size is 1.02mm, with a protective organic solderability preservative coating ensuring durability during assembly. These versatile boards support wire wrapping and discrete component wiring, ideal for complex prototyping projects.
MULTICOMP PRO MP005892 Prototyping Eurocard Stripboard Specifications:
- Format: Eurocard 6U, 160x233.4mm
- Material: Epoxy glass or FR4
- Board thickness: 1.6mm
- Copper Thickness: 1 oz/ft² (35 microns)
- Hole matrix: 2.54mm x 2.54mm
- Hole size: 1.02mm
- Copper protective coating: Organic solderability preservative (OSP)
- Features: Silkscreen reference, DIN 41612 connector mounting holes (32/64/96 way), colander ground plane
- Unique Oktapad™ format for versatile wiring and assembly
- Designed for wire wrapping or discrete component wiring
Buy the Multicomp Series Eurocard Stripboard: MP005892
Order the Multicomp Eurocard stripboard MP005892 online today to enhance your prototyping process. This double height, 6U circuit board features precise hole spacing, a durable epoxy glass or FR4 material, and a unique Oktapad™ format for flexible wiring options. Equipped with DIN 41612 connector holes and a ground plane, it ensures maximum screening and reliable connections. Perfect for engineers, technicians, and electronics hobbyists seeking high-quality, easy-to-use circuit boards for complex projects. Get yours now for top performance and durability!
Buy Multicomp MP005892 Eurocard stripboard now and experience reliable prototyping with versatile, durable circuit boards ideal for engineering and development projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005892?
You can click on the BUY or RFQ button to purchase MP005892 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005892?
You can download the MP005892 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005892?
MULTICOMP PRO
