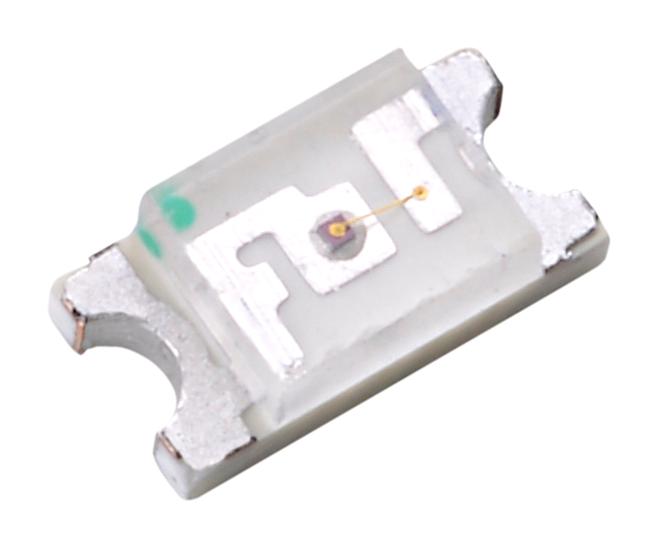

MULTICOMP PRO MP005931 Green Chip LED
This surface mount green chip LED in 1206 size offers high brightness with a luminous intensity of 650 to 1400 millicandela, a viewing angle of 120°, and a forward voltage of 3.6 V at 20mA. It features robust construction with RoHS compliance, suitable for backlighting and indicator applications in automotive dashboards, switches, and telecommunication devices. The device operates from -40°C to +85°C, with maximum power dissipation of 100 mW, and has a water-clear lens with InGaN emission. Its compact size and wide viewing angle make it ideal for precise, reliable electronic indicator functions.
MULTICOMP PRO MP005931 Green Chip LED Specifications:
- Dimensions: 3.2mm x 1.6mm x 0.7mm thickness
- Luminous Intensity: 650 to 1400 millicandela
- Viewing Angle: 120°
- Forward Voltage: 3.6 V at 20mA
- Peak Forward Current: 100mA
- Forward Current: 25mA
- Reverse Voltage: 5 V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Power Dissipation: 100 mW
- Emitted Color: Green (InGaN)
- Wavelength: 518-530 nm
- RoHS Compliant
- Water Clear Lens
- Max Soldering Temperature: 260°C
- Reflow Soldering: Up to 2 times
Buy the Multicomp Series 1206 Green LED: MP005931
Order the Multicomp Green Chip LED in 1206 size today online to enhance your electronic projects. This RoHS-compliant LED provides bright illumination with a wide viewing angle, suitable for automotive dashboards, switches, and telecommunication indicators. Its compact form makes it ideal for space-constrained applications, ensuring reliable backlighting and signals. Fast shipping ensures you get quality components quickly for your assembly or repair tasks. Trust Multicomp for high-quality, durable LEDs designed for professional use and demanding environments.
Buy Multicomp 1206 Green LED MP005931 now and experience unmatched reliability and performance in your electronic indicators and backlighting solutions.
