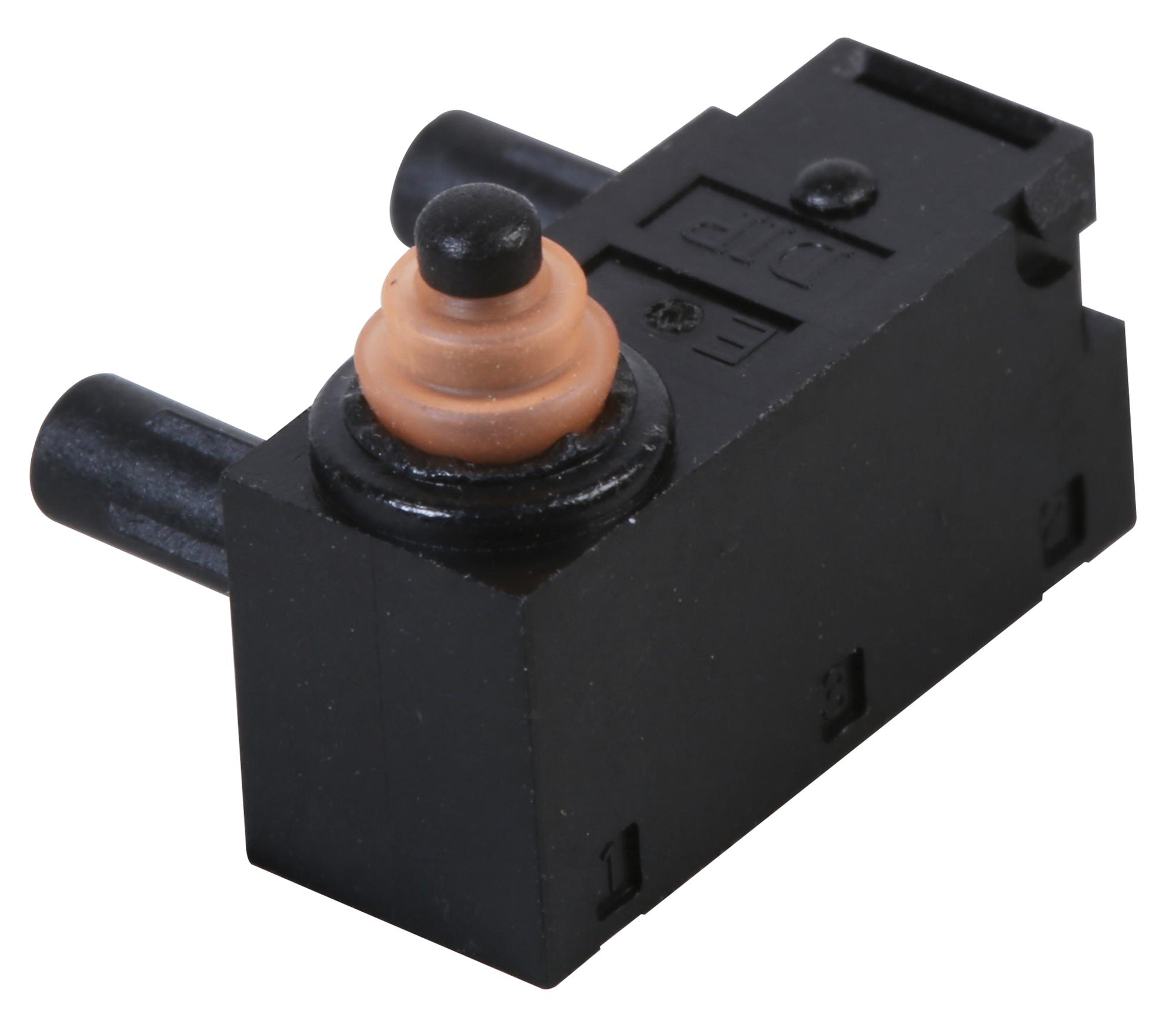

MULTICOMP PRO MP006214 Microswitch
The MP006214 is a snap action microswitch with a pin plunger and SPDT contact configuration. Designed for reliable switching in industrial and household applications, it features a durable construction rated for 12V DC at 2A. Its overtravel is 1.9mm with a movement differential of 0.5mm, ensuring precise actuation. The switch operates within temperature ranges from -40°C to +85°C and offers a free position of 12.5mm. Suitable for automation, appliances, and automotive uses, it includes solder terminal connections for easy mounting and consistent performance.
MULTICOMP PRO MP006214 Microswitch Specifications:
- Rated Voltage: 12V DC
- Resistive Load: 2A
- Operating Force: 75gf(0.75N) Max.
- Release Force: 10gf(0.1N) Min.
- Overtravel: 1.9mm Min.
- Movement Differential: 0.5mm Max.
- Free Position: 12.5mm Max.
- Operating Position: 11.2mm ±0.5mm
- Total Travel: 9.5mm Max.
- Temperature Range: -40°C to +85°C
- Connection Type: Solder terminal
Buy the Buy Multicomp Pro Microswitch Part Number MP006214 Online
Purchase the Multicomp Pro microswitch MP006214 online to ensure reliable operation in automation, appliances, and automotive systems. Designed for durability, it features a SPDT contact configuration rated at 12V DC and 2A, with a precise overtravel of 1.9mm. Its operating temperature range spans from -40°C to +85°C, making it suitable for various environments. The switch employs solder terminal connections for easy installation and consistent performance. Ideal for engineers and technicians, this high-quality microswitch guarantees dependable switching in demanding applications.
Get Multicomp Pro MP006214 today—built for precision and long-lasting durability in industrial automation and household appliances.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006214?
You can click on the BUY or RFQ button to purchase MP006214 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006214?
You can download the MP006214 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006214?
MULTICOMP PRO
