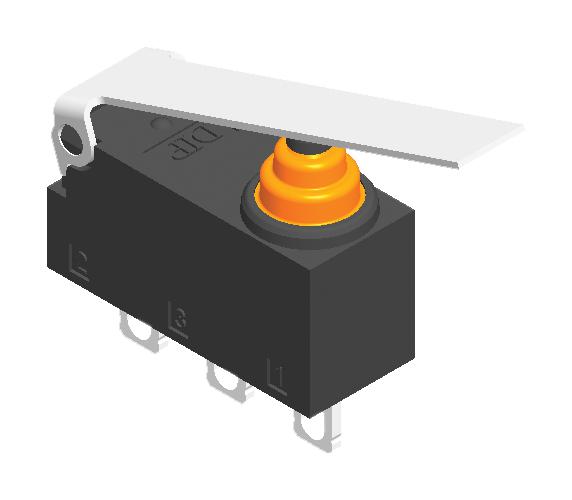

MULTICOMP PRO MP006222 Snap Action Microswitch
The MP006222 is a snap action microswitch with a pin plunger and SPDT contact form, designed for reliable switching in various industrial and household applications. It features a sealed IP67 design for durability and environmental resistance, with an operating temperature range from -40°C to +85°C. The switch supports resistive loads of up to 2A at 12V DC, with a minimum release force of 3gf and an operating force of 50gf. Its compact size and variety of actuator options make it ideal for automation, automotive, and appliance control systems.
MULTICOMP PRO MP006222 Snap Action Microswitch Specifications:
- Contact Rating: 2A at 12V DC
- Mechanical Durability: 1,000,000 Cycles Min.
- Electrical Durability: 100,000 cycles Min.
- Contact Resistance: 150mΩ Max.
- Insulation Resistance: 100MΩ Min. (at 500V DC)
- Dielectric Strength: 600V AC between terminals, 1500V AC to ground
- Operating Temperature: -40°C to +85°C
- Sealed IP67.
- Operating Force: 50gf (0.5N) Max.
- Release Force: 3gf (0.03N) Min.
- Overtravel: 1.4mm Min.
- Movement Differential: 0.25mm Max.
- Total Travel: 5.1mm Max.
- Dimensions (approximate): 13.3mm x 5.3mm x 7.2mm
- Contact Form: SPDT
- Actuator Options: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
- Terminals: Through-hole or Solder Lug
- Certifications: RoHS
- Suitable for automotive, household appliances, vacuum cleaners, and more.
Buy the Buy multicomp-pro Snap Action Microswitch Part Number MP006222 Online
Purchase the multicomp-pro MP006222 microswitch online today and ensure your automation, automotive, and household systems operate reliably. With a sealed IP67 design, high contact resistance, and long cycle durability, this switch is perfect for demanding environments. Its compact size and variety of actuator options allow versatile installation in various applications. Enjoy fast shipping, competitive pricing, and quality assurance when you buy this trusted component for your projects and maintenance needs today.
Buy multicomp-pro MP006222 now and experience unmatched reliability and performance for your automation and control needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006222?
You can click on the BUY or RFQ button to purchase MP006222 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006222?
You can download the MP006222 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006222?
MULTICOMP PRO
