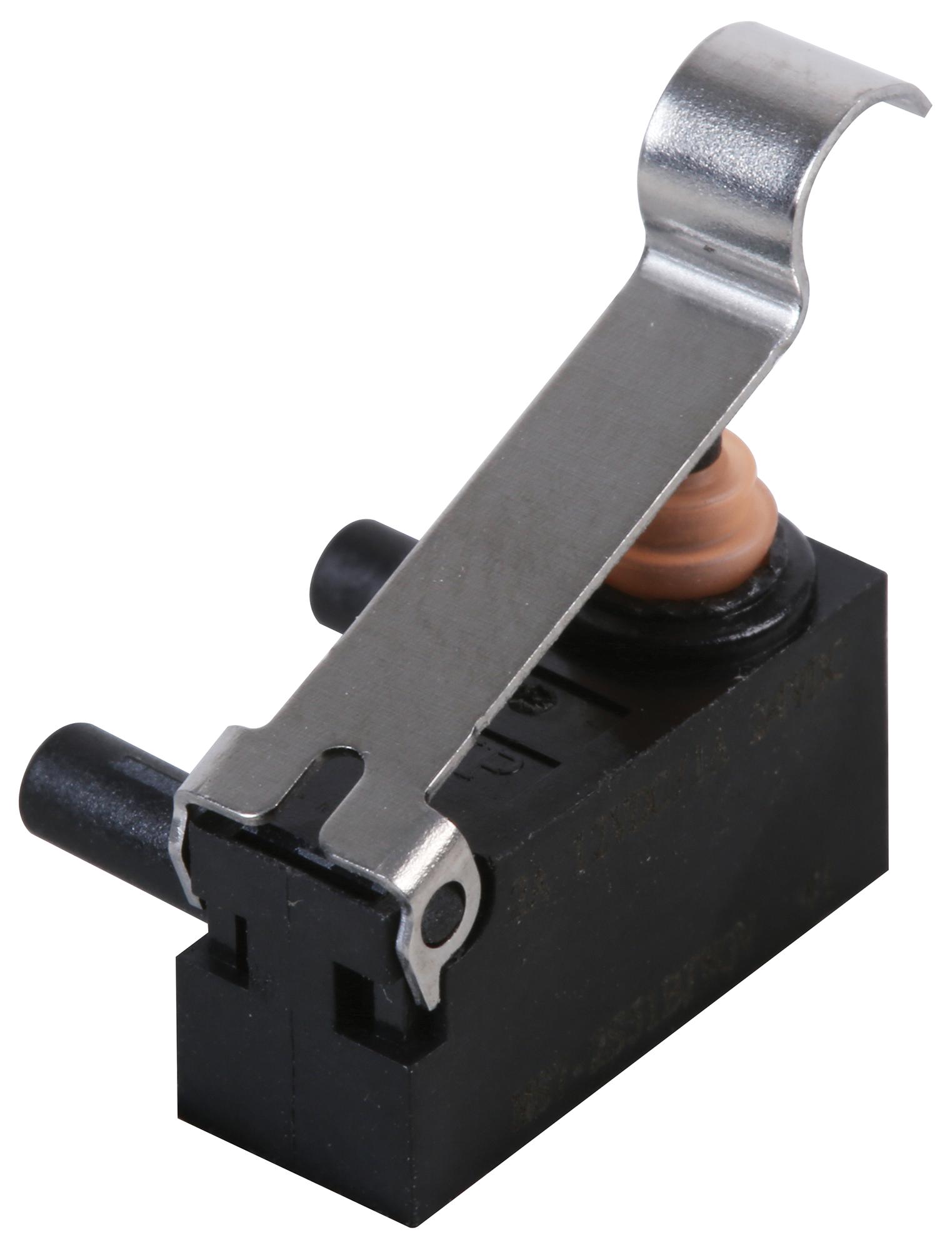

MULTICOMP PRO MP006224 Industrial Microswitch
These reliable snap action microswitches are designed for industrial and automation applications, featuring various actuator options including pin plungers, levers, and simulated roller types. They are sealed IP67, with contact ratings up to 2A at 12V DC and 1A at 24V DC, and operate within a temperature range of -40°C to +85°C. Suitable for automotive, household appliances, and vacuum cleaners, they offer high durability with a mechanical lifespan exceeding 1 million cycles. The switches are crafted with precise overtravel, movement differential, and travel position specifications for dependable performance.
MULTICOMP PRO MP006224 Industrial Microswitch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 Cycles Min.
- Electrical Durability: 100,000 cycles Min.
- Contact Resistance: 150mΩ Max.
- Insulation Resistance: 100MΩ Min. (at 500V DC)
- Dielectric Strength: 600V AC (between terminals), 1500V AC (between terminals and ground), 1500V AC (between terminals and non-current-carrying metal parts)
- Operating Temperature: -40°C to +85°C
- Sealed IP67
- Rated Voltage: 12V DC / 24V DC
- Operating Force: 50gf to 75gf
- Travel Positions: 5.1mm to 13.3mm depending on model
- Overtravel: 1.4mm to 2.5mm
- Movement Differential: 0.25mm to 0.8mm
- Contact Form: SPDT
- Actuator Options: Pin Plunger, Long Hinge Lever, Simulated Roller Lever
Buy the Multicomp Pro MP006224 – Reliable Microswitch for Industrial Applications
Discover the durable and high-performance multicomp pro MP006224 microswitch, perfect for industrial, automotive, and household applications. Featuring IP67 sealing, multiple actuator options, and ratings up to 2A at 12V DC, this switch ensures dependable operation even in harsh environments. Its precise specifications include overtravel, movement differential, and travel position parameters that guarantee consistent performance and long lifespan. Easily integrated into control systems for automation, machinery, or safety devices, this reliable microswitch is a smart choice for your next project.
Order your multicomp pro MP006224 reliable microswitch today and enhance your automation projects with our high-quality, sealed IP67 switches.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006224?
You can click on the BUY or RFQ button to purchase MP006224 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006224?
You can download the MP006224 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006224?
MULTICOMP PRO
