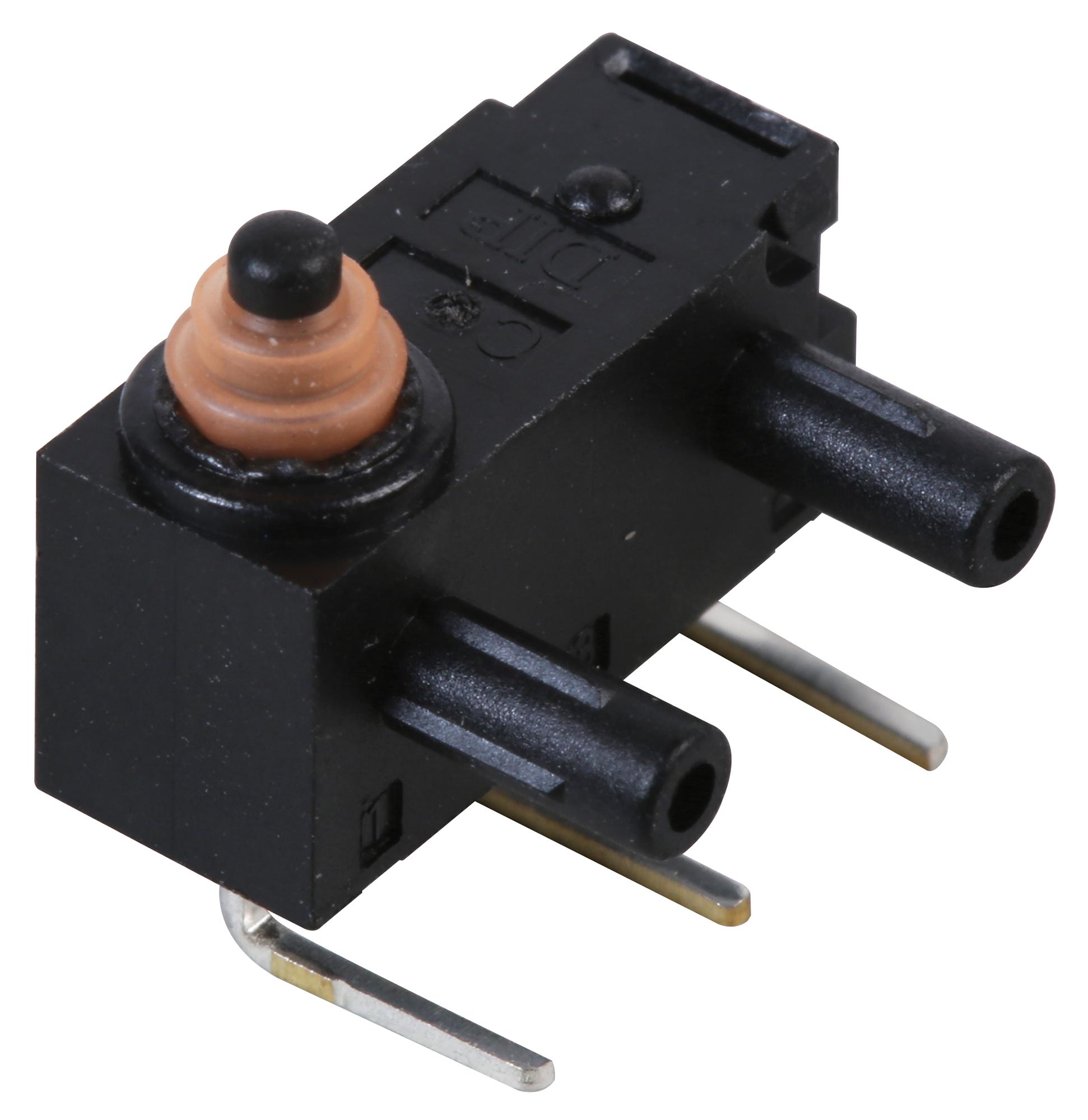

MULTICOMP PRO MP006228 snap switch
The MP006228 is a versatile snap action microswitch suitable for automation, industrial control, and safety applications. Featuring a SPDT contact form and multiple lever options, it offers durability with a mechanical lifespan of over 1 million cycles and an electrical durability of at least 100,000 cycles. It supports resistive loads of up to 2A at 12V DC, with a sealed IP67 housing for reliable operation in harsh environments. Its compact size and variety of terminal configurations make it ideal for precise actuation in automotive and household appliances.
MULTICOMP PRO MP006228 snap switch Specifications:
- Contact Rating: 2A at 12V DC
- Mechanical Durability: 1,000,000 cycles min.
- Electrical Durability: 100,000 cycles min.
- Contact Resistance: 150mΩ max.
- Insulation Resistance: 100MΩ min. at 500V DC
- Dielectric Strength: 600V AC between terminals, 1500V AC between terminal and ground
- Operating Temperature: -40°C to +85°C
- Supported load voltage: 12V DC, resistive load 2A
- Overtravel: 1.4-2.5mm depending on model
- Operating Force: 50-75gf
- Housing: Sealed IP67
- Actuator Types: Pin Plunger, Levers (Long, Roller, Hinge)
- Terminal Options: Solder, PCB, Through-hole, Left/right angled
- Size: variable, approx. length around 7-13 mm depending on model
Buy the Buy multicomp microswitch Part Number MP006228 Online
Purchase the multicomp MP006228 snap switch online for reliable, high-precision actuation in automation, automotive, and household devices. With a compact design, IP67 sealing, and support for resistive loads up to 2A at 12V DC, this switch provides excellent durability with over 1 million mechanical cycles and 100,000 electrical cycles. Its versatile actuator options, including pin plungers and lever types, enable easy integration into various control systems. Order now for quick delivery and trusted performance in demanding environments.
Get multicomp MP006228 today—built for precision and long-lasting durability in industrial and automation applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006228?
You can click on the BUY or RFQ button to purchase MP006228 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006228?
You can download the MP006228 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006228?
MULTICOMP PRO
