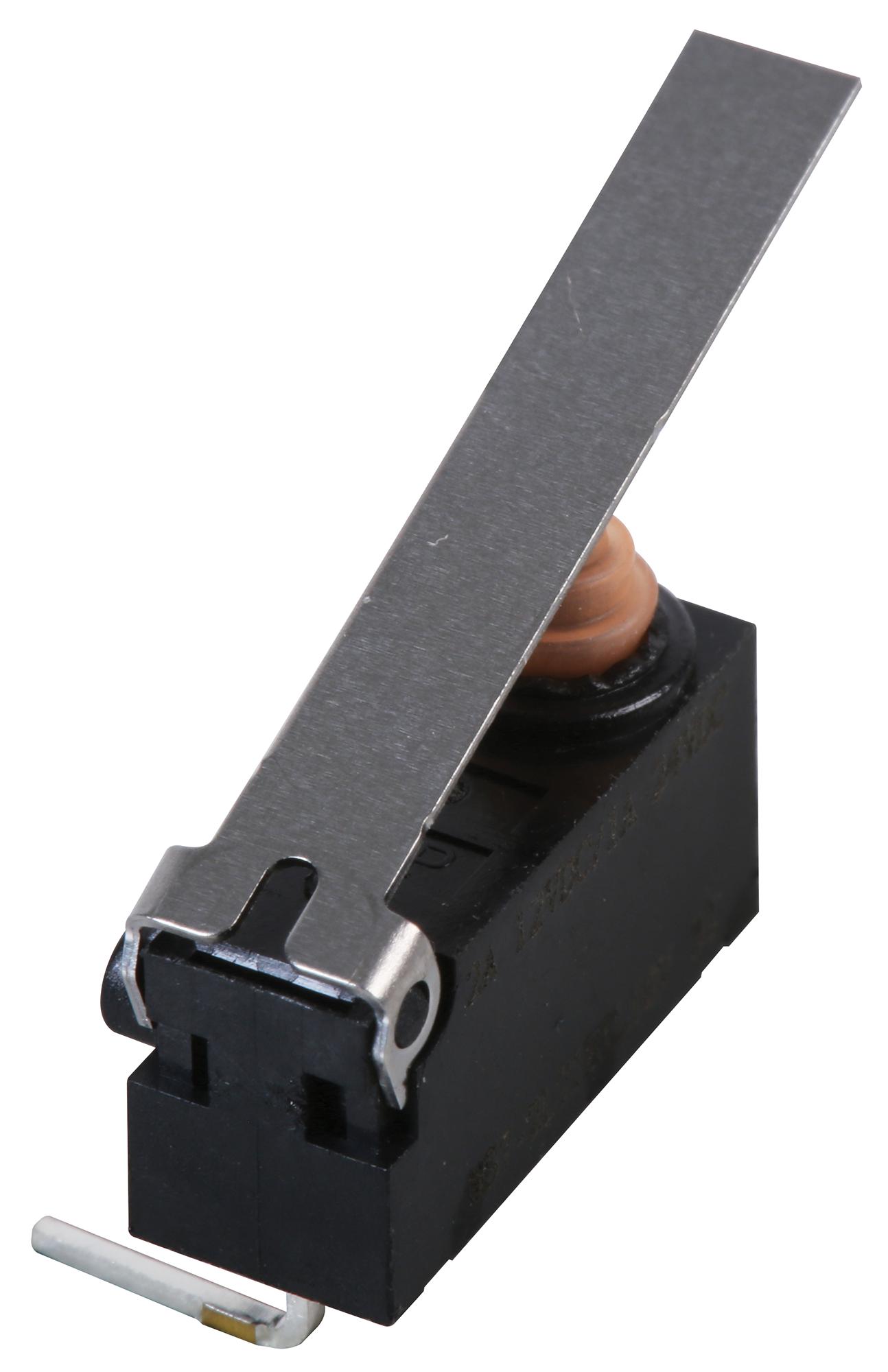

MULTICOMP PRO MP006233 Micro Switch
This is a high-performance snap action microswitch suitable for automation, automotive, and household appliance applications. It features reliable SPDT contact form, various actuator options including pin plunger, lever, and roller, and is sealed IP67 for durability. Capable of withstanding over 1 million mechanical cycles, the microswitch provides precise operation with low contact resistance, ensuring consistent switching performance across a wide temperature range from -40°C to +85°C. It offers multiple terminal configurations including through-hole and PCB mount, making it versatile for different electronic designs. The switch is RoHS compliant and designed for resistive loads up to 2A at 12V DC.
MULTICOMP PRO MP006233 Micro Switch Specifications:
- Contact Rating: 2A at 12V DC / 1A at 24V DC
- Mechanical Durability: 1,000,000 cycles min.
- Electrical Durability: 100,000 cycles min.
- Contact Resistance: 150mΩ max.
- Insulation Resistance: 100MΩ min. (at 500V DC)
- Dielectric Strength: 600V AC between terminals, 1500V AC to ground
- Operating Temperature: -40°C to +85°C
- Actuator options: Pin plunger, long hinge lever, roller lever
- Sealed IP67 for durability
- Terminal options include solder lug, through-hole, and PC board mounts
- Rated Voltage: 12V DC / 24V DC resistive load
- Load capacity: 2A at 12V DC, 1A at 24V DC
- Overtravel: 1.4mm to 2.5mm depending on model
- Total travel: 5.1mm to 9.5mm depending on model
- Operating force: 50gf to 122gf
- Release force: 3gf to 10gf
- RoHS Compliant
Buy the Buy Multicomp Microswitch Part Number MP006233 Online
Purchase the high-quality Multicomp Microswitch MP006233 online to benefit from fast delivery, competitive pricing, and trusted sourcing. Ideal for automation systems, automotive controls, and household appliances, this versatile switch supports resistive loads up to 2A at 12V DC, offering durability with over 1 million cycles. Its sealed IP67 design ensures longevity in harsh environments while multiple actuator options provide flexibility for various applications. Whether you need through-hole or PCB mount configurations, order now and enhance your project’s reliability.
Order your Multicomp Microswitch MP006233 today and ensure reliable performance for automation, automotive, and household applications with ease.
