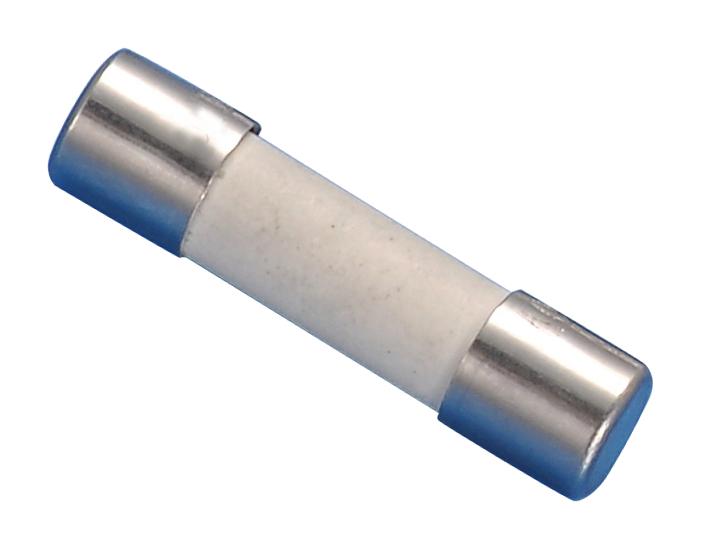

MULTICOMP PRO MP006245 Circuit Protection Fuse
The time-lag cartridge fuse with axial leads is designed for primary and secondary over-current protection in electronic circuits. Constructed with a ceramic tube and nickel-plated brass end caps, it offers high breaking capacity up to 1500A at 250V AC and features a compact 5mm x 20mm size. Suitable for applications requiring reliable surge protection, the fuse is RoHS compliant, halogen-free, and features a high temperature rating from -55°C to +125°C. It has optional axial leads for versatile installation and complies with IEC 60127-2/V standards for safety and performance.
MULTICOMP PRO MP006245 Circuit Protection Fuse Specifications:
- Physical Dimensions: 5mm x 20mm
- Construction: Ceramic tube with nickel-plated brass end caps
- Rated Voltage: 250V AC
- Breaking Capacity: 1500A at 250V AC
- Operating Temperature: -55°C to +125°C
- Max Dissipation: 50-60Hz, cosφ=0.7-0.8
- Soldering Temperature: 260°C for less than 5 seconds (wave), 350°C for less than 3 seconds (hand)
- RoHS Compliant, Halogen-Free
- Optional axial leads: 0.65mm x 38mm
- Standards: IEC 60127-2/V
- Vibration Resistance: 24 cycles at 15 minutes each
- Storage Conditions: 10°C to 60°C
Buy the Multicomp 524 Series U2013 Reliable Circuit Protection Fuse for Industrial Applications
Get the dependable protection you need for your electronic circuits with Multicomp's reliable 5mm x 20mm ceramic fuse. Designed for primary and secondary circuit protection, it features high breaking capacity up to 1500A at 250V AC, ensuring quick response to over-current situations. The fuse's robust ceramic construction and optional axial leads make it versatile and easy to install across various applications. It complies with IEC 60127-2 standards, RoHS regulations, and withstands harsh temperatures from -55°C to +125°C. Perfect for industrial and commercial electronic systems, order online now for fast delivery and peace of mind.
Order your Multicomp 524 Series cartridge fuse MP006245 today and ensure your electronic circuits are protected with reliable high-capacity fuses.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006245?
You can click on the BUY or RFQ button to purchase MP006245 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006245?
You can download the MP006245 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006245?
MULTICOMP PRO
