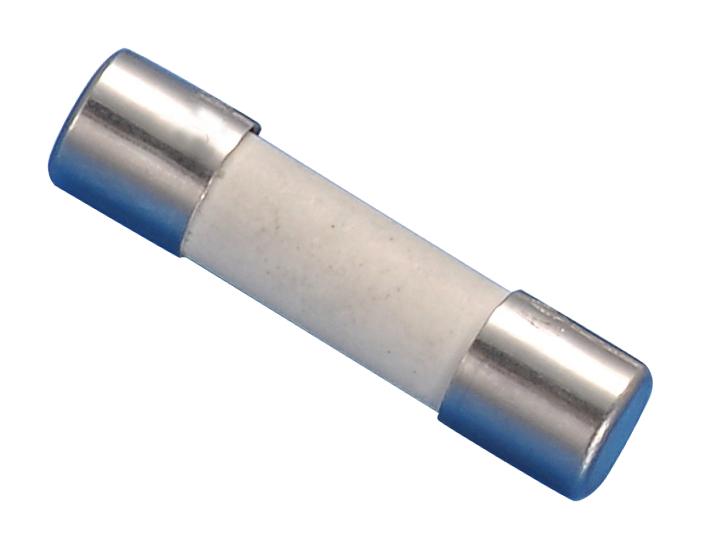

MULTICOMP PRO MP006251 Circuit Protection Fuse
The time-lag fuse with high breaking capacity, designed for use with printed circuit boards, features a ceramic tube with electro-plated brass end caps. Measuring 5mm x 20mm, it offers excellent protection against over-currents in primary and secondary applications. Rated at 250V AC and capable of breaking up to 1500 Amperes, it is constructed for durability with a ceramic encapsulation, nickel-plated brass end caps, and optional axial leads. Suitable for various electronic and industrial applications, it operates within -55°C to +125°C and is RoHS compliant.
MULTICOMP PRO MP006251 Circuit Protection Fuse Specifications:
- Physical Dimensions: 5mm x 20mm
- Construction: Ceramic tube with nickel-plated brass end caps
- Rated Voltage: 250V AC
- Breaking Capacity: 1500 Amperes
- Operating Temperature Range: -55°C to +125°C
- Storage Conditions: +10°C to +60°C
- Vibration Resistance: 24 cycles at 15 min each
- Lead Options: 0.65mm x 38mm axial leads (1A to 5A)
- RoHS Compliant
- Soldering Temperature: 260°C for less than 5 seconds
- Certification: IEC 60127-2/V, cURus certified at 125V and 250V
- Rated Current: 1A to 5A
- Voltage Drop: 25-49 mV depending on part number
- Maximum Power Dissipation: Up to 3.42W
- Time-Current Characteristics: Protective response in milliseconds at various currents
Buy the Buy Multicomp Time-Lag Cartridge Fuse Part Number MP006251 Online
Secure your electronic projects and industrial systems with the reliable Multicomp time-lag fuse MP006251. This 5x20mm ceramic fuse with high breaking capacity ensures optimal protection against over-current conditions, safeguarding your circuits from damage. With a rated voltage of 250V AC and a melting capacity of 1500A, it is suitable for a wide range of applications, including primary and secondary circuit protection. Easy to install, RoHS compliant, and guaranteed for durability, this fuse is an essential component for secure electrical operations.
Get Multicomp time-lag fuse MP006251 today—designed for high breaking capacity and reliable circuit protection in demanding applications.
