MULTICOMP PRO MP006255 PV Fuse

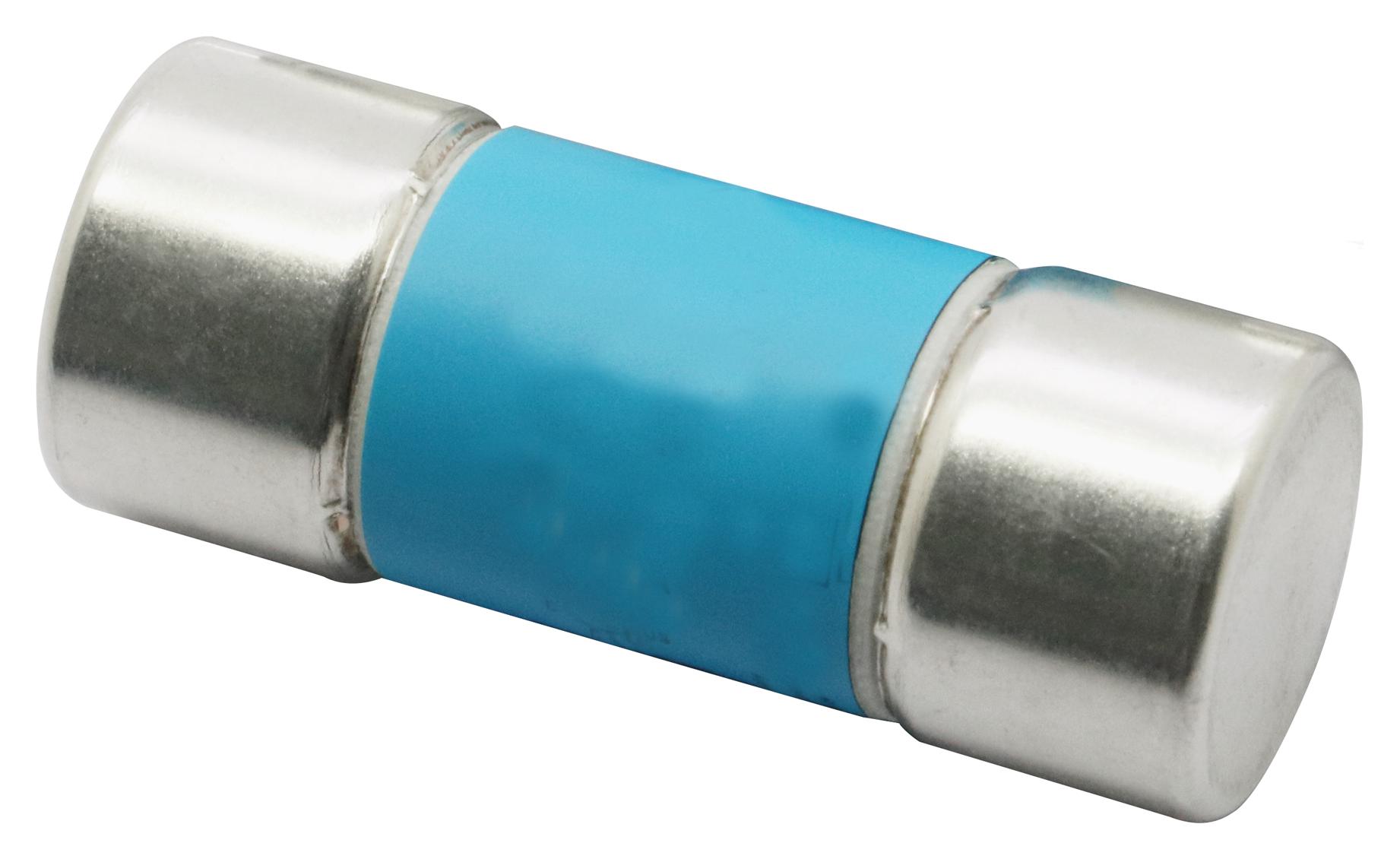

This 22mm x 58mm gPV Cartridge Fuse is designed for high-power PV applications, rated at 1500V DC with a current capacity of 35A. It features a glass-fiber body with silver-plated caps for enhanced durability and reliable performance in solar power systems. The fuse offers a fast response time with a time constant of 1ms to 3ms and compliance with UL 248-19 and IEC 60269-6 standards. Suitable for DIN rail mounting with compatible holders, it ensures safety and efficiency for photovoltaic and electrical distribution systems.
MULTICOMP PRO MP006255 PV Fuse Specifications:
- Dimensions: 22mm x 58mm
- Voltage Rating: 1500V DC
- Rated Current: 35A
- Breaking Capacity: 10kA at 1500V DC
- Time Constant: 1ms to 3ms
- Body Material: Glass-fiber
- Cap Material: Silver-plated
- Standards: UL 248-19, IEC 60269-6
- Approvals: UL (File: E490190)
- Mounting: Suitable for DIN rail using BH400, BH401 holders
- Dissipation: 6W
- Pre-Arcing Current: 3850A
- Temperature Range: -55°C to +85°C
- Compliance: RoHS
Buy the Multicomp Series PV Fuse: 1500V DC 35A - MP006255
Enhance your solar power system with this high-voltage PV fuse, rated at 1500V DC and 35A. Designed for durability and safety, it features a glass-fiber body and silver-plated caps for optimal performance. Compliant with UL 248-19 and IEC 60269-6 standards, it offers fast response times suitable for PV arrays and electrical distribution. Ideal for DIN rail mounting with compatible holders, this fuse ensures reliable overcurrent protection for photovoltaic applications, optimizing system safety and longevity.
Buy Multicomp Series PV Fuse MP006255 now and experience unmatched reliability and performance for high-power solar power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006255?
You can click on the BUY or RFQ button to purchase MP006255 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006255?
You can download the MP006255 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006255?
MULTICOMP PRO
