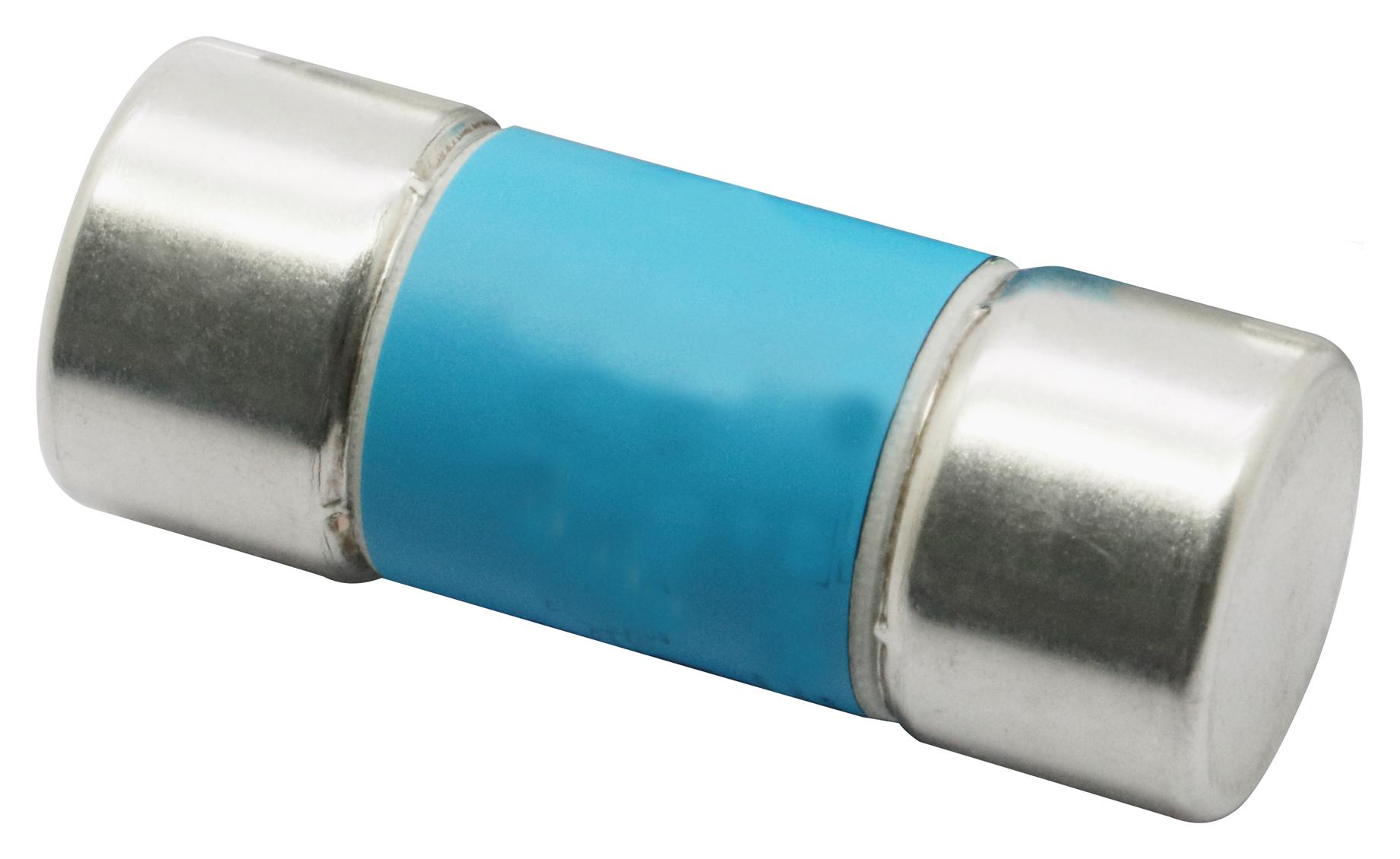

MULTICOMP PRO MP006256 High-Voltage PV Fuse
The gPV Cartridge Fuse is a high-power, 1500V DC fuse with a glass-fiber body, available in current ratings from 20A to 45A. Designed for photovoltaic and industrial applications, it features silver-plated caps for enhanced conductivity and meets UL 248-19 and IEC 60269-6 standards. Its compact 22mm x 58mm size allows easy installation with BH400 or BH401 DIN rail holders. The fuse offers a breaking capacity up to 10kA at 1500V DC, ensuring reliable protection for photovoltaic systems and high-voltage electrical circuits under demanding conditions.
MULTICOMP PRO MP006256 High-Voltage PV Fuse Specifications:
- Dimensions: 22mm x 58mm
- Voltage Rating: 1500V DC
- Rated Current: 20A to 45A
- Breaking Capacity: 10 kA at 1500V DC, 10 kA at 1300V DC for 70A and 80A
- Time Constant: 1ms to 3ms
- Body Material: Glass-fiber
- Caps: Silver-plated for high-power PV applications
- Standards: UL 248-19, IEC 60269-6
- Mounting: BH400, BH401 holders for DIN rail
- Pre-Arcing I²t: 2200 to 4950 A²s depending on current rating
- Dissipation: 4.2W to 7.2W depending on current rating
- Approval: UL listed (File: E490190)
Buy the Multicomp gPV Cartridge Fuse – Reliable 1500V DC Fuse for Industrial Applications
Ensure your high-voltage photovoltaic and industrial circuits are protected with the multicomp:ro gPV Cartridge Fuse. Rated for 1500V DC, it features a robust glass-fiber body, silver-plated caps for optimal conductivity, and a high breaking capacity of 10kA. Available in current ratings from 20A to 45A, this compact fuse meets UL 248-19 and IEC 60269-6 standards. Easy to install with DIN rail mounts, it provides reliable, fast-acting protection for demanding electrical environments. Buy online today for premium circuit safety and performance.
Order your multicomp:ro gPV Cartridge Fuse MP006256 today and ensure your photovoltaic systems have the dependable high-voltage protection they need.
