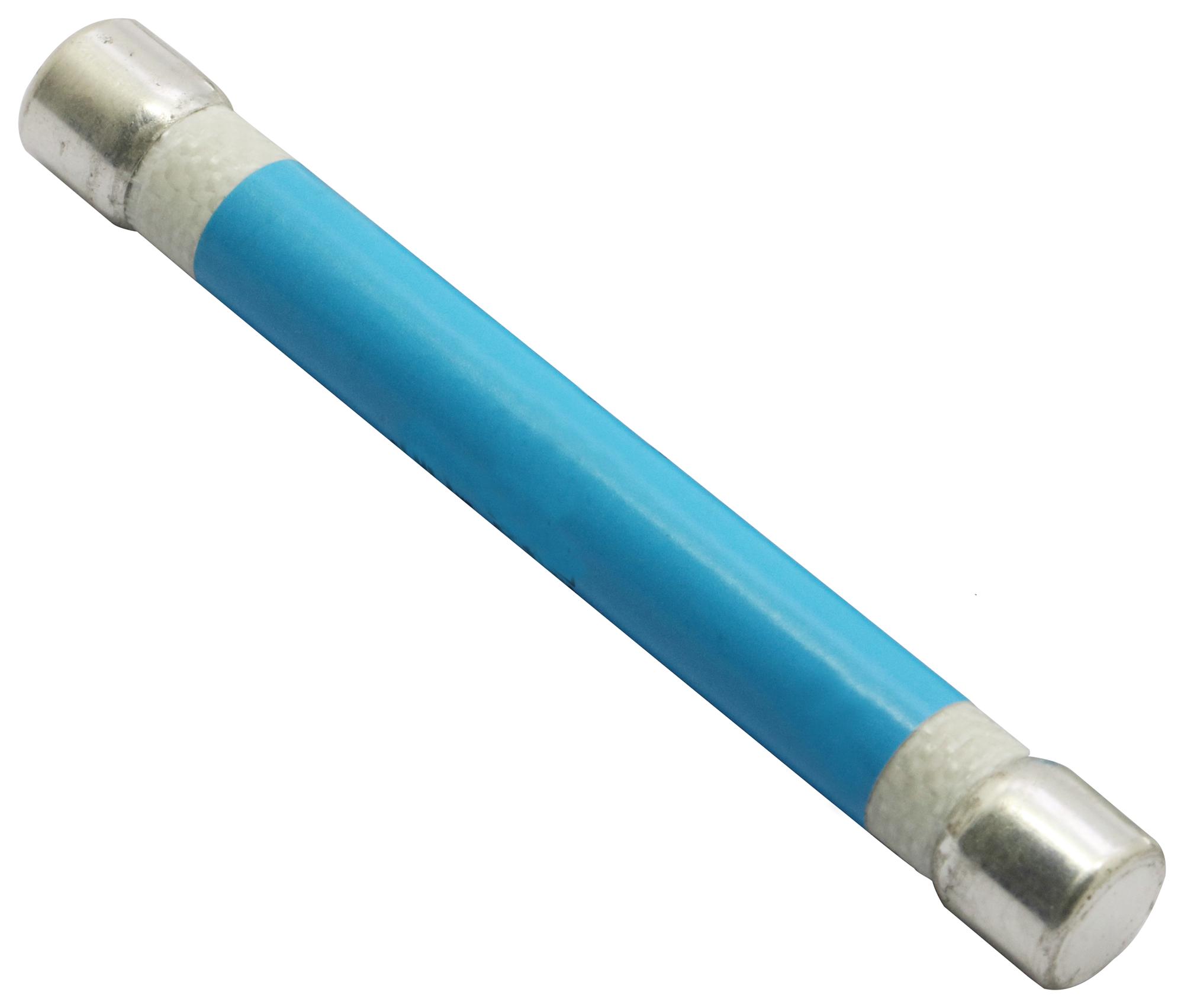

MULTICOMP-PRO MP006260 PV Cartridge Fuse
The gPV Cartridge Fuse is a high-power, glass-fiber fused link designed for photovoltaic applications. It features a 1500V DC rating, with dimensions of 10mm x 85mm, and is suitable for use in PV inverter systems, junction boxes, and battery charge controllers. This fuse offers rated currents from 20A to 32A and a breaking capacity of 30kA at 1500V DC. Equipped with silver-plated caps, it ensures reliable performance in demanding high-power solar installations. Certification includes UL 248-19 and IEC 60269-6 compliance, making it a dependable choice for renewable energy applications.
MULTICOMP-PRO MP006260 PV Cartridge Fuse Specifications:
- Dimensions: 10mm x 85mm
- Rated Voltage: 1500V DC
- Rated Current: 20A to 32A
- Breaking Capacity: 30kA at 1500V DC
- Time Constant: 1ms to 3ms
- Pre-Arcing Resistance: 8.2~10mA at 20A, 4.37~5.34mA at 30A, 4.07~4.98mA at 32A
- Dissipation: 3.2W to 7W depending on current
- Construction: Glass-fiber and silver-plated caps
- Standards: UL 248-19, IEC 60269-6
- Certification: RoHS Compliant
- Application: PV junction boxes, inverters, battery charge controllers
Buy the Buy High-Power PV Cartridge Fuse Part Number MP006260 Online
Secure your photovoltaic system with the high-quality Multicomp PV Cartridge Fuse. Rated at 1500V DC and available in 20A to 32A, it features a robust glass-fiber design and silver-plated caps for high-power applications. Perfect for PV junction boxes, inverters, and battery controllers, this fuse provides reliable protection with a breaking capacity of 30kA. Certified under UL and IEC standards, it guarantees safety and durability for renewable energy projects. Buy online today to ensure optimal performance and safety in your solar installations.
Order your Multicomp series MP006260 30A 1500V DC PV fuse today and ensure your solar system's safety and reliability with this high-capacity, UL-certified fuse.
