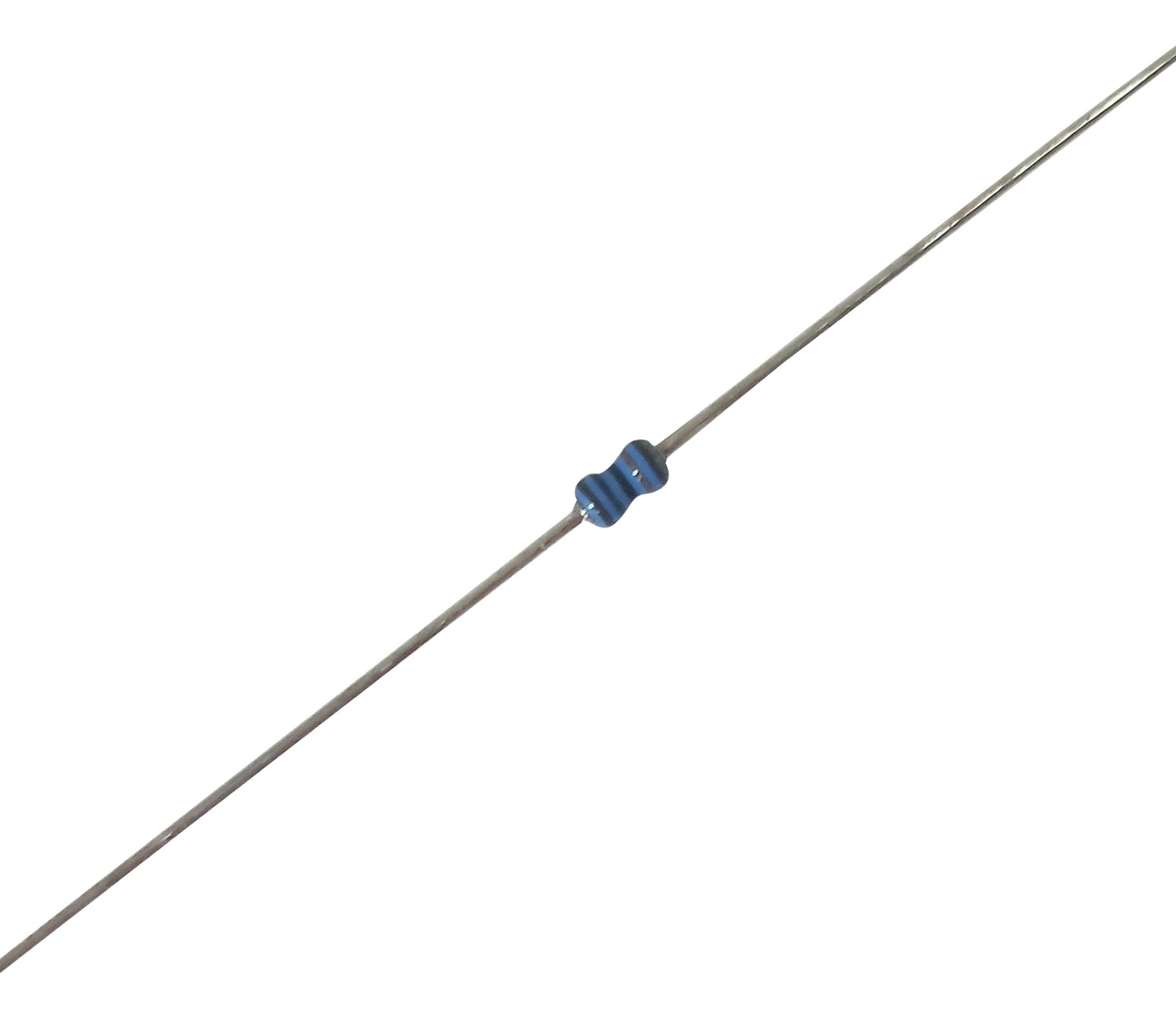

MULTICOMP PRO MP006685 Metal Film Resistor
These metal film axial lead resistors are designed for high precision applications, with a power rating of 1/8W and resistance values from 12.20Ω to 1MΩ. Constructed with ceramic bodies, tin-plated steel end caps, and annealed copper leads, they meet UL94V-0 flame-retardant standards and feature a green epoxy resin coating for protection. They offer a tolerance of ±2%, with insulation resistance of at least 10,000MΩ. Capable of operating between -55°C and +155°C, these resistors withstand overloads, vibrations, and soldering heat, making them ideal for electronic circuits requiring stability and durability.
MULTICOMP PRO MP006685 Metal Film Resistor Specifications:
- Type: Metal Film
- Rated Power: 1/8W
- Max Working Voltage: 200V or Vp×R whichever is lesser
- Max Overload Voltage: 400V or 2.5×Vp×R whichever is lesser
- Dielectric Withstanding Voltage: 200V
- Resistance Range: 12.20Ω to 1MΩ
- Resistance Tolerance: ±2%
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: ≥10,000MΩ
- Temperature Coefficient: ±50PPM/°C
- Construction: Ceramic body, steel end caps (tin plated), annealed copper wire leads
- Flame Retardant Coating: UL94V-0 compliant green epoxy resin
- Operational Voltages: Calculated from P×R formula, not exceeding maximum ratings
- Mechanical tests: Terminal strength, vibration, and soldering withstand tests
- Temperature Stability: Resistance change within ±0.5% over temperature
- Solderability: ≥95% coverage, temp. 245°C ±3°C for 2-3 sec.
- Size: Length approximately 28mm, diameter 0.45mm, lead length 3.5mm, coating coating within 1/2 the body diameter
- Marking: Color code per JIS C 0802, with labels indicating resistance and tolerance
Buy the Buy Multicomp Metal Film Fixed Resistors Part Number MP006685 Online
Order the Multicomp metal film axial resistors online today. Designed for stability, durability, and high precision, these resistors operate from -55°C to +155°C with a power rating of 1/8W. They feature resistance values from 12.20Ω to 1MΩ, tolerance of ±2%, and are constructed with ceramic bodies, steel end caps, and copper leads meeting UL94V-0 flame-retardant standards. Perfect for electronic circuits requiring accurate resistance, high insulation resistance, and resilience against overloads and vibrations, ensuring reliable performance in demanding environments.
Buy Multicomp MP006685 now and experience unmatched reliability and performance for high-precision electronic applications.
