MULTICOMP PRO MP006832 7 Segment LED Display
This 0.56-inch three-digit common cathode 7 segment LED display features a vivid red super red color with an AlInGaP die material, emitting at 640 nm wavelength. It offers a luminous intensity of 3 to 7.5 mcd, forward voltage around 1.8 to 2.2 V, and an operating temperature range of -40°C to +85°C. Designed for high reliability, it has a maximum power dissipation of 85 mW and peak forward current of 100 mA, suitable for digital indicators and displays in various electronic applications.
MULTICOMP PRO MP006832 7 Segment LED Display Specifications:
- Package Size: 0.56 inch three digit common cathode
- Die Material: AlInGaP
- Peak Wavelength: 640 nm
- Emitted Colour: Super Red
- Luminous Intensity: 3-7.5 mcd
- Forward Voltage: 1.8-2.2 V
- Reverse Current: 10 μA at VR=5V
- Peak Forward Current: 100 mA
- Recommended Operating Current: 30 mA
- Power Dissipation: 85 mW
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Soldering Temperature: 260°C for reflow, 350°C for hand soldering
- ESD Tolerance: 2000 V
- Dimensions: 14.2 mm x 8 mm x 7.5 mm approximate
- Package Type: 7 segment LED, three digit

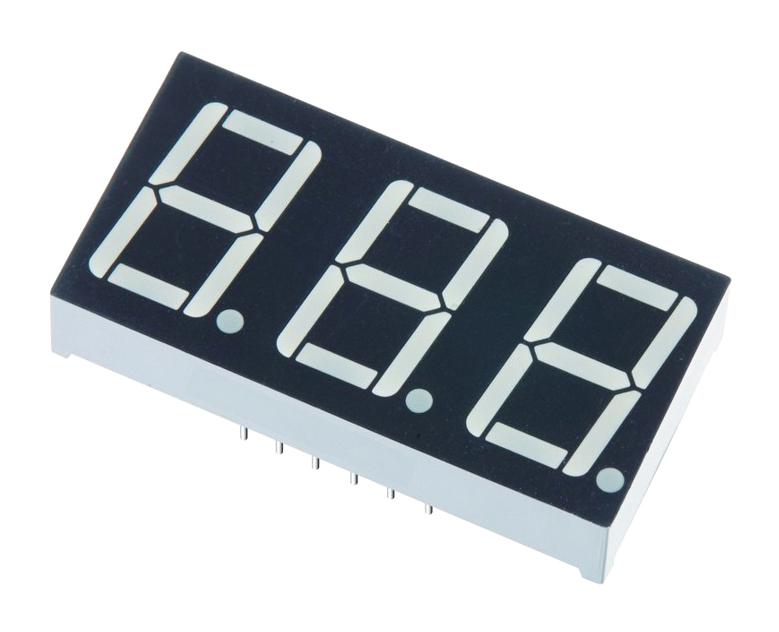

Buy the Buy Multicomp LED Display Part Number MP006832 Online
Order the high-quality 7 segment LED display with three digits in vibrant red, perfect for digital readouts and indicators in electronic devices. This compact, 0.56-inch display features a super red color with AlInGaP die material, emitting at 640 nm wavelength. It offers luminous intensities between 3 to 7.5 mcd, operates at a forward voltage of 1.8 to 2.2 V, and is capable of withstanding operating temperatures from -40°C to +85°C. Ideal for reliable electronic displays, it combines durability, efficiency, and bright illumination for professional applications.
Buy Multicomp MP006832 now and experience high visibility and reliable performance in your digital projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP006832?
You can click on the BUY or RFQ button to purchase MP006832 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP006832?
You can download the MP006832 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP006832?
MULTICOMP PRO
