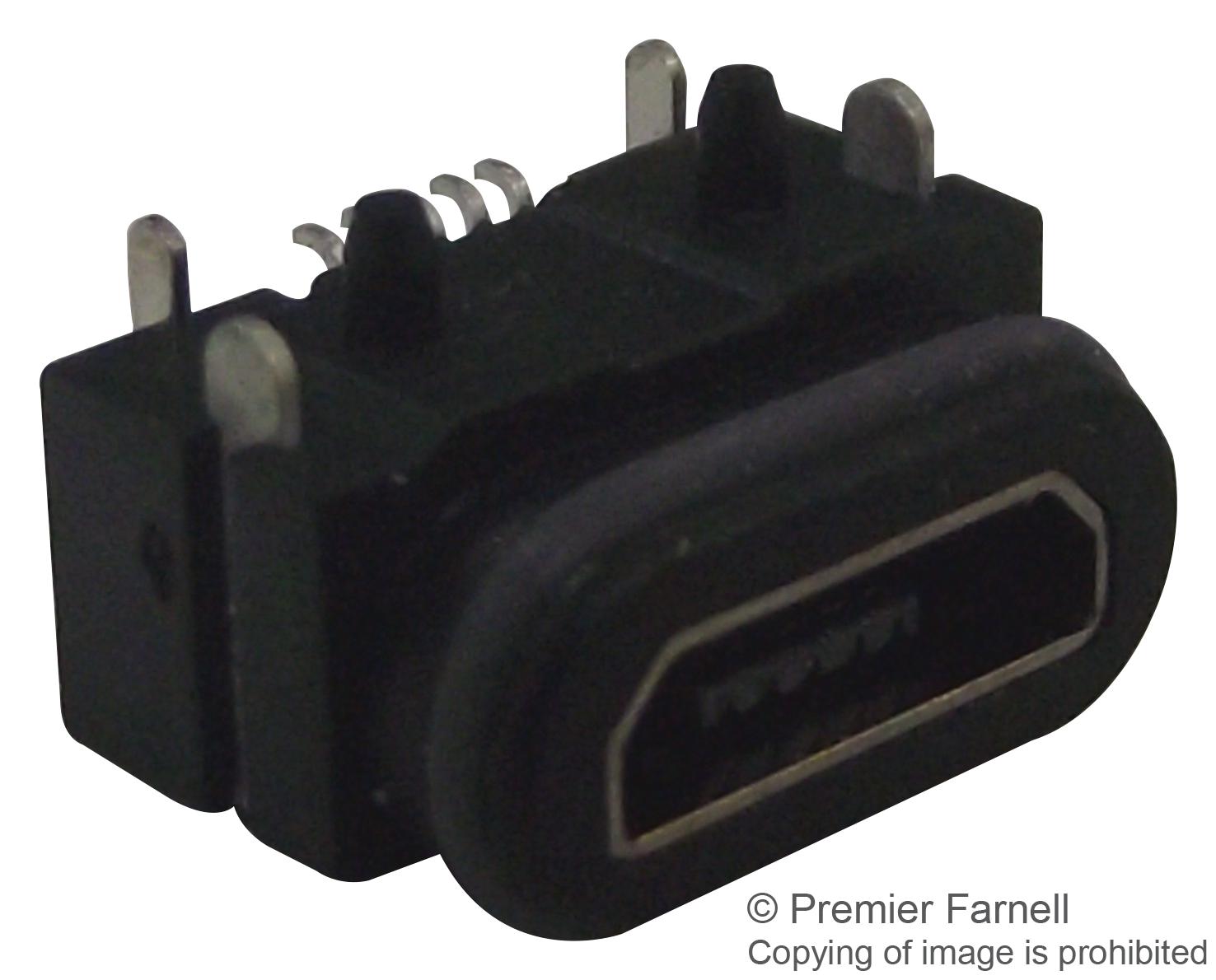

MULTICOMP-PRO MP007313 Waterproof Micro USB Connector
The MP007313 is a 5-way black waterproof Micro USB connector featuring a Liquid Crystal Polymer housing with gold-plated brass contacts, a black PA9T cover, and a nickel-plated SUS 304 shell. It withstands a dielectric voltage of 300VAC for one minute. The connector has a maximum initial contact resistance of 30 milliohms, a minimum insulation resistance of 100 megaohms, an insertion force up to 3.6 kgf, and a withdrawal force of 0.8 kgf. Rated for 10,000 mating cycles, it offers waterproof protection conforming to IPX7, suitable for immersion up to 1 meter for 30 minutes, making it ideal for rugged industrial and outdoor applications.
MULTICOMP-PRO MP007313 Waterproof Micro USB Connector Specifications:
- Electrical Rating: 1.8A (PIN1/5), 0.5A (PIN2/3/4)
- Contact Resistance: 30mΩ Max. (Initial)
- Dielectric Withstanding Voltage: 300V AC for one minute
- Insulation Resistance: 100MΩ Min. (measured by 500V DC)
- Insertion Force: 3.6 KGF (Max.)
- Withdrawal Force: 0.8 KGF (Reference)
- Durability: 10,000 Cycles
- Waterproofness: IPX7 (1m, 30min.) immersion resistance
- Connector Body Material: Liquid Crystal Polymer (LCP)
- Contacts: Gold-plated brass
- Shell Material: Nickel-plated SUS 304
- Seal: O-ring with burrs max 0.05mm
- Compliance: RoHS
- Reflow Soldering: Lead-free compatible
- Dimensions: Conforms to USB 2.0 spec, detailed dimensions in datasheet
- Environmental: Suitable for outdoor use, water-resistant design
Buy the Multicom Waterproof Micro USB Connectors – Reliable USB for Industrial Applications
Purchase the Waterproof Micro USB connector online today to enhance your device’s durability and water resistance. With IPX7 protection, gold-plated contacts, and a robust LCP housing, this connector ensures reliable data transfer and power connection even in harsh outdoor environments. Ideal for rugged industrial, outdoor equipment, and waterproof device applications, this connector is designed for 10,000 mating cycles, delivering long-lasting performance. Get yours now and experience dependable connectivity that withstands the elements, ensuring your projects are protected and operational in any environment.
Order your Multicom Waterproof Micro USB connector today and ensure your devices are protected with high-quality, waterproof connection reliability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP007313?
You can click on the BUY or RFQ button to purchase MP007313 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007313?
You can download the MP007313 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP007313?
MULTICOMP-PRO
