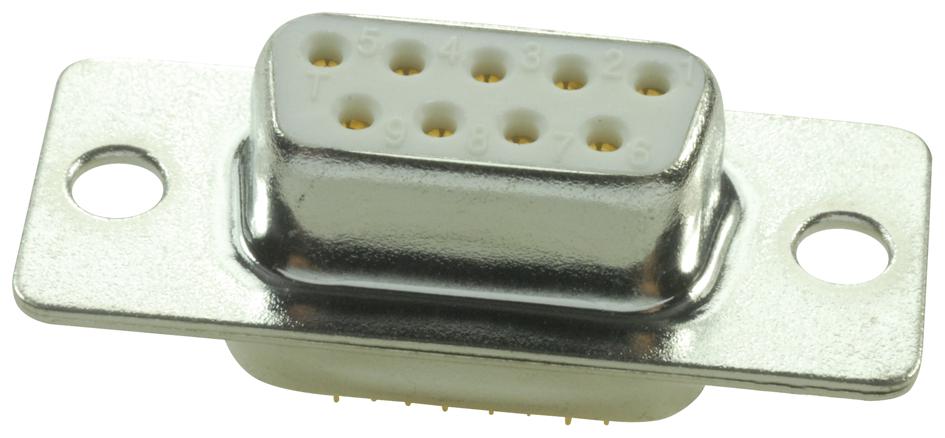

MULTICOMP PRO MP007535 D Sub Connector
This 9-position D Sub connector with solder cup terminals is designed for reliable electrical connections in various industrial and electronic applications. Crafted with glass-filled thermoplastic insulators, brass machined contacts with 1-micron gold plating, and steel shells with nickel and tin finishes, it offers excellent durability and corrosion resistance. The connector supports a voltage rating of 250V AC/rms, current rating of 5 Amps, and operates in temperatures from -55°C to +105°C. Its compact design ensures secure and stable connections for signal and power transfer in demanding environments.
MULTICOMP PRO MP007535 D Sub Connector Specifications:
- Material: Insulator - Glass-Filled Thermoplastic PBT, UL94V-0; Contact - Brass, Machined pin, 1u” Gold-Plated; Front shell - Steel, 80u” Nickel Over Copper; Back shell - Steel, 100u” Tin Over Copper
- Electrical: Contact Resistance - 200mΩ; Insulation Resistance - 500MQ at 500V DC; Dielectric Withstanding Voltage - 1000V AC/rms 60Hz for 1 minute; Current Rating - 5 Amp; Voltage Rating - 250V AC/rms 60Hz
- Dimensions: Millimetres - Length 30.814, Width 16.33, Height 11.08; Hole diameter - 3.05mm; Other dimensions include diameter 2.77mm and length 24.99mm
- Operating Temperature: -55°C to +105°C
- Certifications: RoHS Compliant
Buy the Multicomp Series 9Pos D Sub Connector: MP007535
Discover the high-quality 9-position D Sub connector with solder cup terminals, engineered for robust electrical connections in demanding industrial environments. Featuring a durable stainless shell with nickel and tin finishes, gold-plated brass contacts, and a thermoplastic insulator rated UL94V-0, this connector ensures long-lasting performance. It supports a voltage of 250V AC/rms, a current of 5A, and operates from -55°C to +105°C. Perfect for signal and power applications, order online today for superior reliability and easy installation.
Buy Multicomp Series 9Pos D Sub Connector MP007535 now and experience reliable solder cup connections with excellent durability and electrical performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007535?
You can click on the BUY or RFQ button to purchase MP007535 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007535?
You can download the MP007535 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007535?
MULTICOMP PRO
