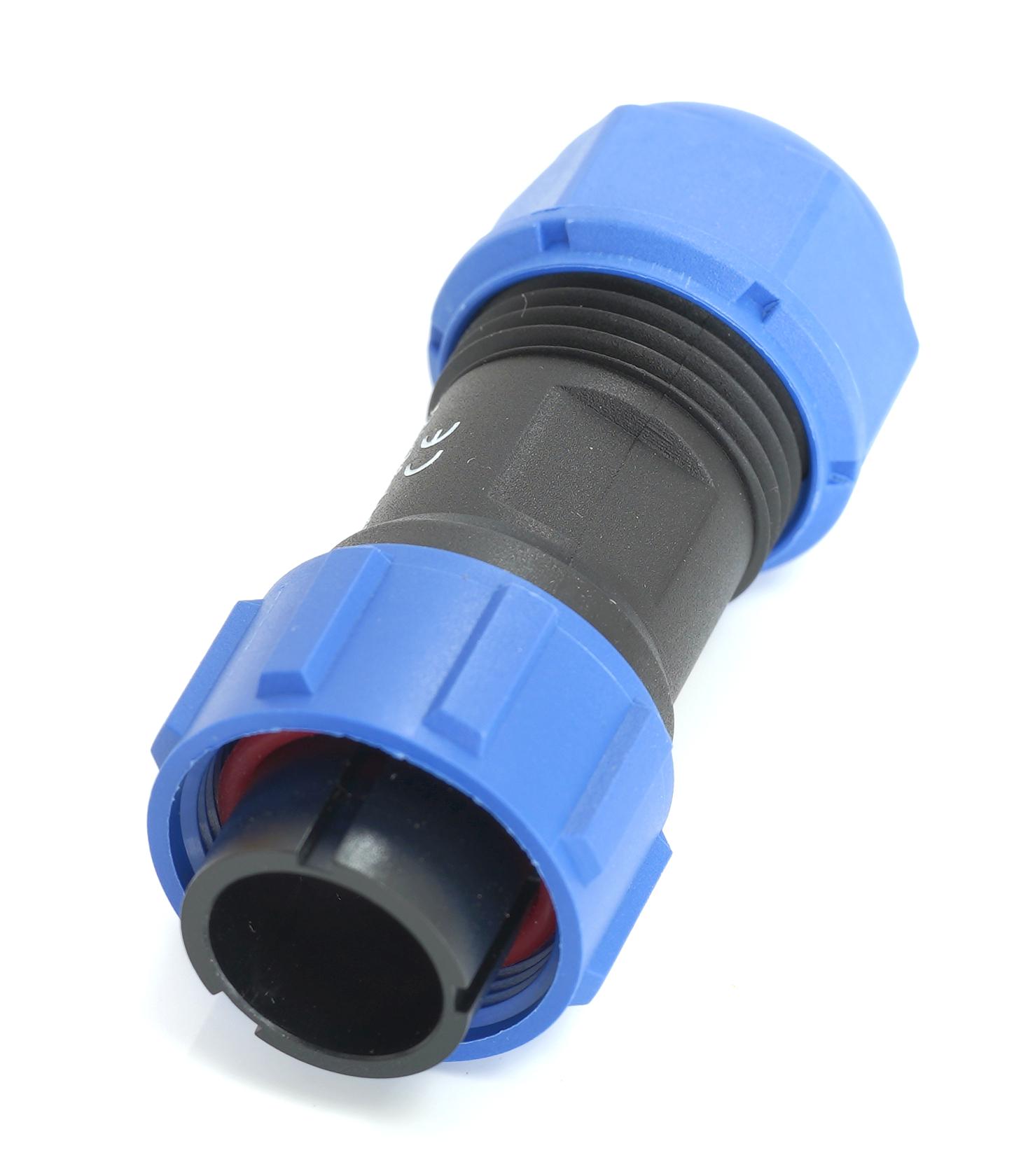

MULTICOMP PRO MP007590 Waterproof Circular Connector
This waterproof threaded coupling is a durable circular connector rated IP68, suitable for harsh environments with a temperature range of -40°C to +85°C. Made from fire-resistant PC and Nylon66 shells, it features brass contacts with gold plating, supporting soldering and crimping terminations. The connector accommodates cable outer diameters from 6mm to 10mm and supports up to 500 mating cycles. It offers reliable electrical performance, with contact resistance of 5-25mΩ and insulation resistance of 2000MQ, ensuring secure connections in rugged applications.
MULTICOMP PRO MP007590 Waterproof Circular Connector Specifications:
- Shell Material: PC, Nylon66, fire resistant: V-0
- Insert Material: PPS, Max. Temperature 260°C
- Contact Material: Brass with gold plating
- Termination: Solder and Crimp
- Cable outer diameter: 6mm to 10mm
- IP Rating: IP68
- Mating Cycle: 500
- Temperature Range: -40°C to +85°C
- Insulation Resistance: 2000MQ
- Rated Current: 10A
- Rated Voltage: 400-500V
- Test Voltage: 1200-1500V
- Contact Resistance: 5-25mΩ
Buy the Multicomp Series Waterproof Threaded Coupling: MP007590
Get your waterproof circular connector MP007590 online today and experience the highest quality sealing and durability. Ideal for industrial and outdoor applications, this IP68-rated connector supports robust performance under extreme environmental conditions. Made with fire-resistant shells and brass contacts, it guarantees reliable electrical connections with a maximum temperature of 260°C. Easy to install with solder and crimp options, it is suitable for cables with outer diameters from 6 to 10mm. Purchase now for unmatched durability and ease of use in harsh environments!
Order your Multicomp Series waterproof threaded coupling MP007590 today and ensure your projects have reliable, rugged, and sealed electrical connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007590?
You can click on the BUY or RFQ button to purchase MP007590 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007590?
You can download the MP007590 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007590?
MULTICOMP PRO
