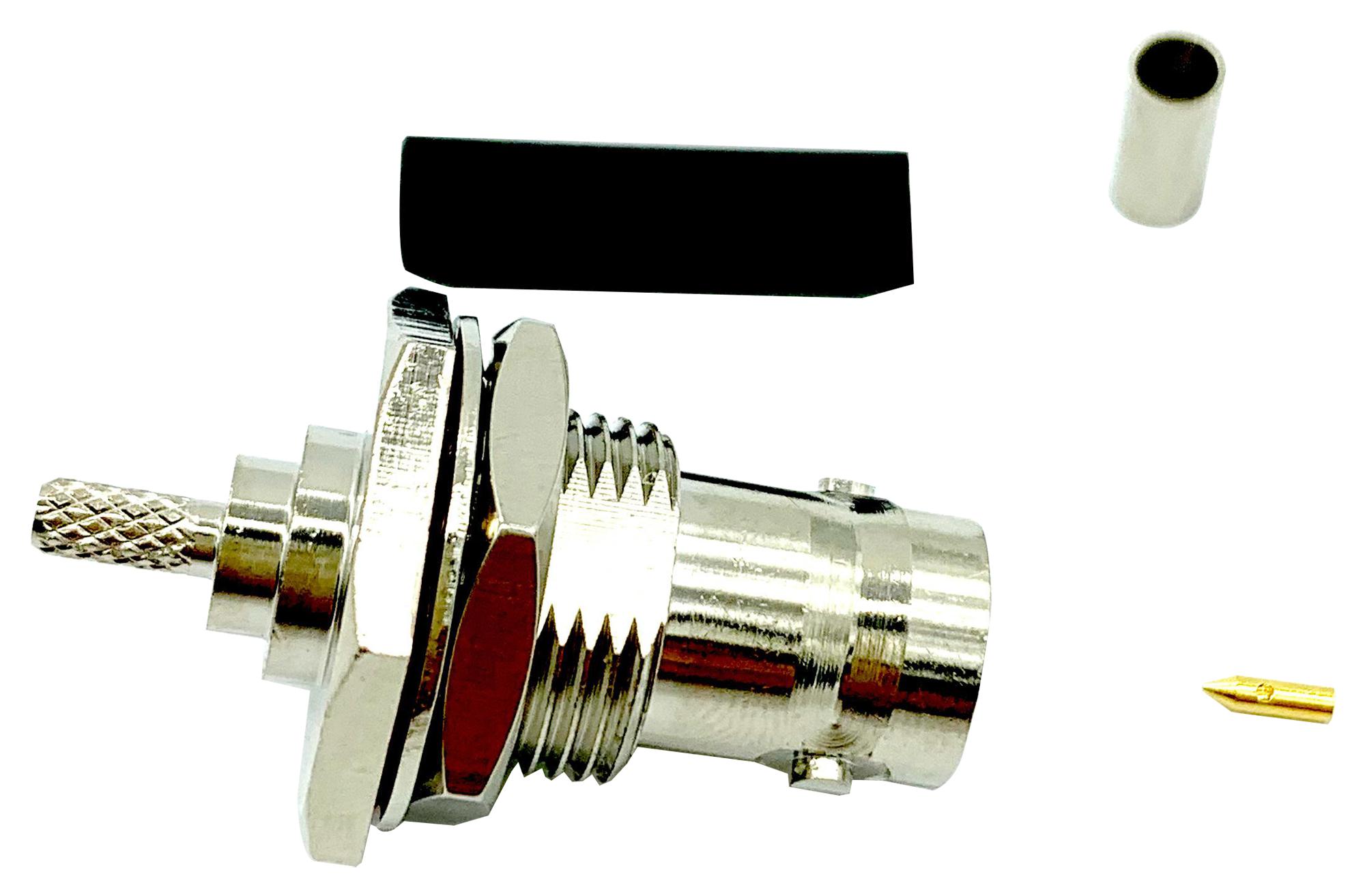

MULTICOMP PRO MP007945 RF Coaxial Connector
The BNC-KY3Y RG174U is a crimp BNC Bulkhead Jack designed for RG174 RF coaxial cables, featuring a nickel-plated brass body and a gold-plated beryllium copper center contact with PTFE insulation. It provides reliable connections with a characteristic impedance of 50Ω, frequency range up to 4GHz, and withstands voltages of 1500V. Durable with over 500 connection cycles, this connector ensures high performance for radio frequency and communication applications, especially in panel-mounted setups requiring crimp termination. Its construction promotes longevity and stable signal transmission.
MULTICOMP PRO MP007945 RF Coaxial Connector Specifications:
- Characteristic Impedance: 50Ω
- Frequency Range: 0GHz to 4GHz
- Contact Resistance: Center Conductor <$1.5mΩ, Out Conductor <$0.2mΩ
- Insulation Resistance: 25000 MΩ
- Insulator Voltage Withstanding: 1500V
- VSWR: ≤1.3
- Connector Durability: 500 cycles
- Material: Brass, Beryllium Copper
- Plating: Nickel, Gold
- Insulation Material: PTFE
- Connection Type: Crimp
- Cable Compatibility: RG174, RG316, RG179
- Mounting: Panel-mounted, Bulkhead Jack
- Application: RF communication, test equipment, radio frequency systems
Buy the Multicomp Series RF Coaxial Connector: MP007945
Purchase the Multicomp RF Coaxial Connector MP007945 online today to ensure stable and efficient signal transmission in your radio frequency and communication projects. Designed with a durable nickel-plated brass body and gold-plated contact, this connector supports frequencies up to 4GHz, providing excellent performance for various RF applications. Its crimp-type termination offers secure connections, while its robust construction withstands over 500 connection cycles. Ideal for panel-mounted setups requiring reliable, high-quality coaxial connections, making it the perfect choice for your professional communication needs.
Buy Multicomp RF Coaxial Connector MP007945 now and experience unmatched reliability and performance in high-frequency communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP007945?
You can click on the BUY or RFQ button to purchase MP007945 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP007945?
You can download the MP007945 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP007945?
MULTICOMP PRO
