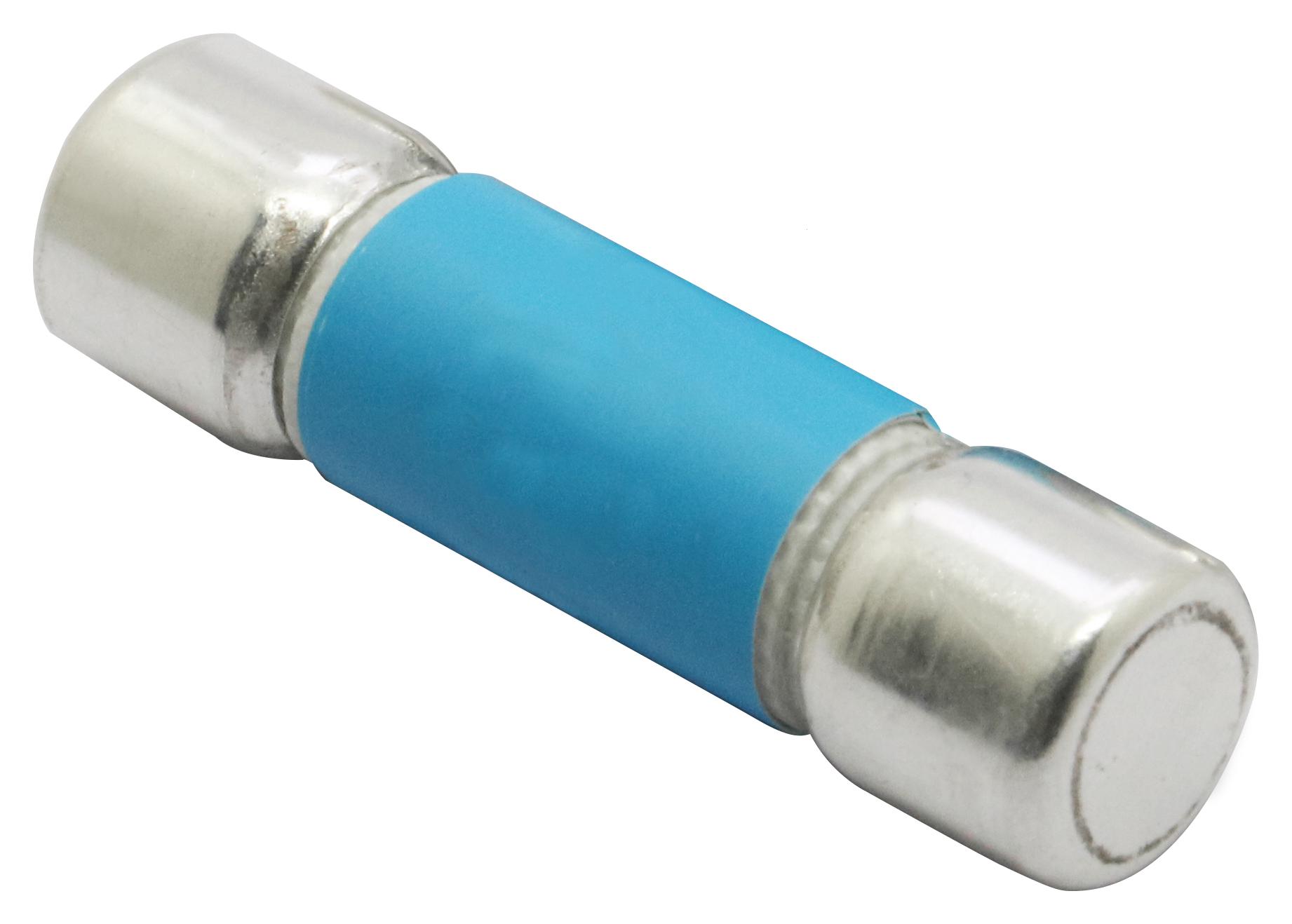

MULTICOMP PRO MP008149 PV Fuse Link
These cylindrical fuses are 10mm x 38mm PV fuse links designed for high-power photovoltaic applications, rated up to 1100V DC with a breaking capacity of 30kA. They feature glass-fiber insulation and silver-plated caps for enhanced conductivity and durability, suitable for inverter, junction box, and battery charge controller protection. Available in current ratings from 1A to 12A, these fuses adhere to IEC and UL standards, with quick response times between 1ms to 3ms, providing reliable overcurrent protection in demanding electrical systems.
MULTICOMP PRO MP008149 PV Fuse Link Specifications:
- Physical Size: 10mm x 38mm
- Voltage Rating: 1100V DC
- Breaking Capacity: 30 kA
- Rated Current: 1A to 12A
- Time Constant: 1ms to 3ms
- Material: Glass-fiber, silver-plated caps
- Standards: IEC 60269-6, UL 248-19
- Pre-Arcing Dissipation: 20-240W depending on model
- Temperature Range: Suitable for high-power PV systems
- Approvals: IEC, UL certified
Buy the Multicomp Series PV Fuses: 10mm x 38mm: MP008149
Order the Multicomp PV Fuse Link MP008149 online for reliable overcurrent protection in high-power solar systems. These fuses are designed for photovoltaic applications, with a voltage rating of 1100V DC and a breaking capacity of 30kA. Made with glass-fiber insulation and silver-plated caps, they ensure excellent conductivity and durability. Their fast response time of 1ms to 3ms safeguards inverters, junction boxes, and battery controllers efficiently. Secure your PV system with these high-quality, UL and IEC approved fuses today for optimal performance and safety.
Get Multicomp PV Fuse MP008149 today—designed for high-current photovoltaic systems with fast-acting protection and durable silver-plated caps.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP008149?
You can click on the BUY or RFQ button to purchase MP008149 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP008149?
You can download the MP008149 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP008149?
MULTICOMP PRO
