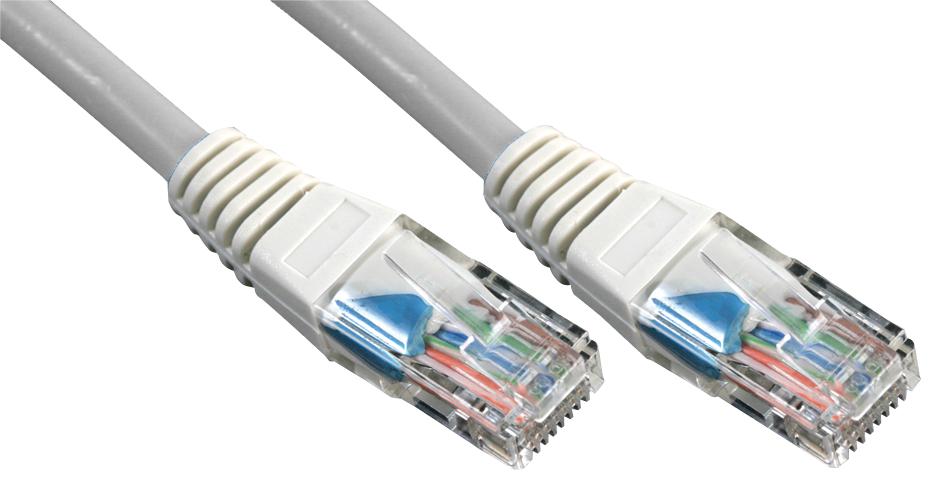

MULTICOMP PRO MP009277 Ethernet Cable
Pro Signal Ethernet cable with CAT5E UTP stranded 24AWG conductors and RJ45 connectors. Features grey PVC over-mold and clear polyester insulation. Suitable for network installations, it offers excellent data transmission at 100MHz, compliant with ISO 11801 standards. The cable length options include 500mm, 1 meter, and 2 meters, with precise tolerances for length, angle, and pinouts. Ideal for reliable, high-speed Ethernet connections, this cable is designed for professional wiring setups, ensuring secure and stable connectivity with gold-plated contacts for corrosion resistance.
MULTICOMP PRO MP009277 Ethernet Cable Specifications:
- Cable Type: CAT5E UTP Stranded 24AWG (7*0.18CU) 4 Pairs
- Jacket Material: LSOH, Grey, 0.20mm thickness
- Cable Color: Grey
- Printing: System Cable UTP CAT5E 4 Pairs 24AWG, ISO 11801 100MHz
- Connector Type: RJ45 (8P8C) male, gold-plated contacts
- Insulation: Clear polyester
- Over Mold: PVC, Grey
- Parameter Settings: UT8080M
- Conductive Resistance: 1kΩ
- Insulative Resistance: Min. 5MΩ
- Length Options: 0.5m, 1m, 2m, 3m, 5m, 10m
- Tolerances: Length ±1%, ±0.2m; Angle ±1°; Pinout consistent
- Packing: Polybag
- Rated: 4.2 out of 5 stars, 12-month warranty
Buy the Buy Pro Signal Ethernet Part Number MP009277 Online
Purchase the Pro Signal Ethernet cable with CAT5E UTP stranded conductors and RJ45 connectors online today. Designed for high-speed network setups, this cable features a durable grey PVC over-mold, clear polyester insulation, and gold-plated contacts for improved corrosion resistance. It meets ISO 11801 standards, offers excellent data transmission at 100MHz, and is available in various lengths including 0.5m, 1m, and 2m. Ideal for professional networking, this reliable cable ensures stable and fast connections, backed by a 12-month warranty.
Buy Pro Signal MP009277 Ethernet cable now and ensure fast, reliable network connections with high-quality RJ45 connectors and durable design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP009277?
You can click on the BUY or RFQ button to purchase MP009277 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP009277?
You can download the MP009277 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP009277?
MULTICOMP PRO
