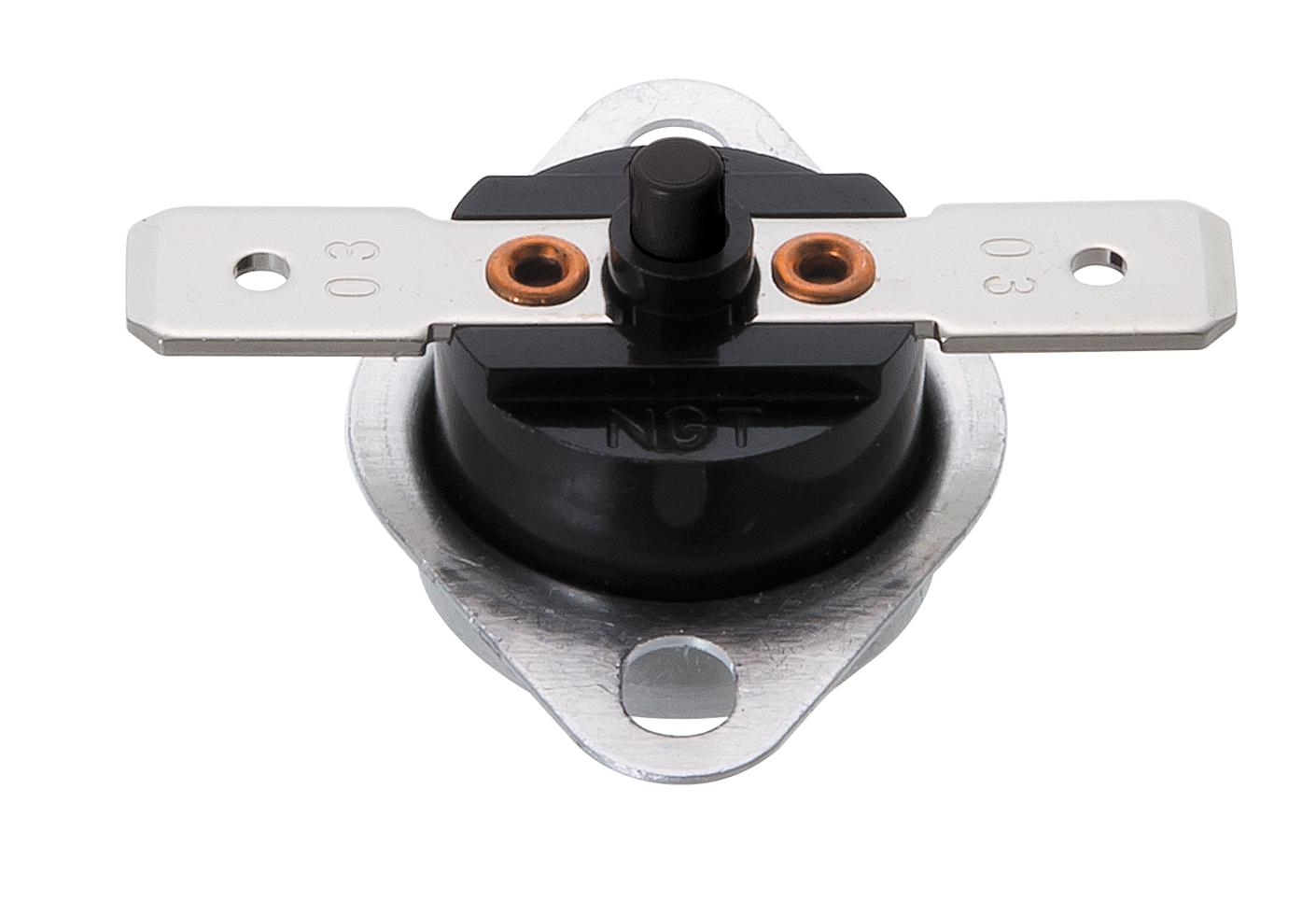

MULTICOMP PRO MP05EN80DEGNC Thermostat Switch
This 1/2 inch disc type thermostat switch features manual reset and a normally closed contact configuration, suitable for temperature regulation in various applications. It operates with a temperature rating of up to 150°C, ensuring reliable performance. Made from high-quality materials including bimetal discs, stainless steel contacts, and phenolic resin case, it provides durability and insulation resistance exceeding 1,000 MΩ. Compliant with UL, CSA, and VDE standards, it is equipped with quick connectors for easy installation and features multiple calibration options for precise temperature control across different environments.
MULTICOMP PRO MP05EN80DEGNC Thermostat Switch Specifications:
- Basic features: SPST Manual reset
- Operation: Contacts open on temperature rise, not automatic reset
- Electrical rating: UL: AC120V/15A, AC240V/10A; CSA: AC125V/15A, AC250V/10A; VDE: AC250V/16A
- Temperature rating: Max. 150°C
- Insulation resistance: Not less than 1,000 MΩ/DC 500V
- Dielectric strength: Not less than AC 1,500V/1min. or AC 1,800V/1sec.
- Materials: Bimetal disc, copper, stainless steel contacts, phenolic resin case
- Connection: Quick connect terminals, multiple hole options
- Standards: UL 873, CSA C22.2 No. 24, VDE licensed
- Dimensions: 1/2 inch disc size, specific dimensions depend on model
- Calibration method: Hot & cold air circulation system
Buy the Multicomp Series Thermostat Switch: MP05EN80DEGNC
Purchase the Multicomp Classic Thermostat Switch today for reliable temperature regulation and durability. This 1/2 inch disc type switch features a manual reset process, NC contact, and supports quick connect installation. It is rated for up to 150°C and complies with UL, CSA, and VDE standards, ensuring safety and quality. Designed with high-quality materials such as stainless steel, copper, and phenolic resin, this switch guarantees long-lasting performance. Ideal for industrial and commercial applications, the thermostat provides precise temperature control with easy calibration options, ensuring optimal operation in demanding environments.
Get Multicomp MP05EN80DEGNC today—built for precision and long-lasting durability in temperature control applications.
