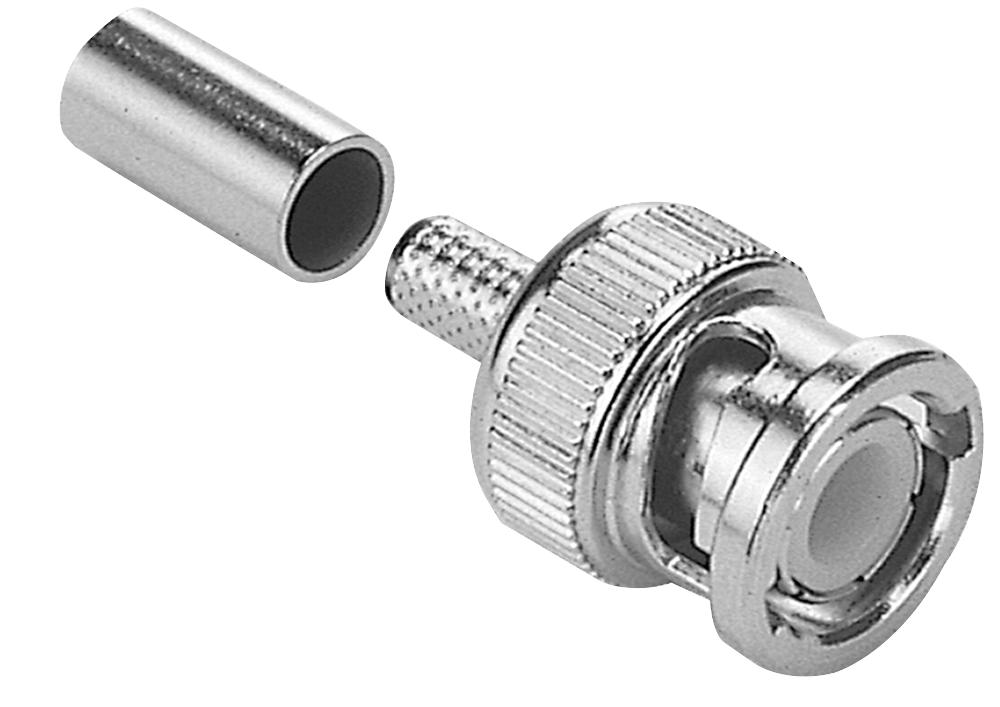

MULTICOMP PRO MP13104 BNC Coaxial Plug
This BNC coaxial plug features a crimp termination with a 75-ohm impedance, designed for high-frequency applications up to 11GHz. Constructed with durable brass and plated with gold, it provides excellent conductivity and corrosion resistance. Suitable for cable mounting, the connector supports a maximum cable diameter of 5.1mm, and includes a PTFE insulator for optimal signal integrity. Its robust design ensures reliable performance in professional RF and communication systems, with a temperature range of -65°C to +165°C and a proof voltage of 2kV. Ideal for secure, high-performance connections.
MULTICOMP PRO MP13104 BNC Coaxial Plug Specifications:
- Connector Type: BNC Coaxial
- Body Style: Straight Plug
- Coaxial Termination: Crimp
- Impedance: 75Ω
- Contact Material: Brass
- Contact Plating: Gold
- Frequency Max: 11GHz
- Connector Mounting: Cable
- Body Plating: Nickel
- Cable Diameter Max: 5.1mm
- Coaxial Type: Cable
- Contact Resistance: 1.5mΩ
- DC Current Max: 1.5A
- Material: Brass with Silicone Gaskets
- Operating Temperature: -65°C to +165°C
- Proof Voltage: 2kV
- VSWR: 1.2
- Working Voltage: 500V
- Bodies: Brass per JIS-C3604
- Centre Contact: Brass per JIS-C3604, Gold plated
- Insulation: PTFE per ASTM D1457 and ASTM D1710
- Crimp Ferrule: Brass
- Shell: Zinc, Nickel plated
Buy the Multicomp Series BNC Coaxial Plug: MP13104
Purchase the Multicomp Series BNC Coaxial Plug MP13104 online and experience superior performance in RF and communication systems. Crafted from durable brass with gold-plated contacts, it ensures excellent signal transmission and corrosion resistance. Its crimp termination is designed for secure, reliable connections, supporting frequencies up to 11GHz. With a maximum cable diameter of 5.1mm and an operating temperature range from -65°C to +165°C, this connector is ideal for professional applications requiring durability and precise performance. Order today for seamless integration and high-quality results.
Get Multicomp Series BNC Plug MP13104 today—built for high-frequency RF applications and long-lasting reliability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP13104?
You can click on the BUY or RFQ button to purchase MP13104 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP13104?
You can download the MP13104 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP13104?
MULTICOMP PRO
