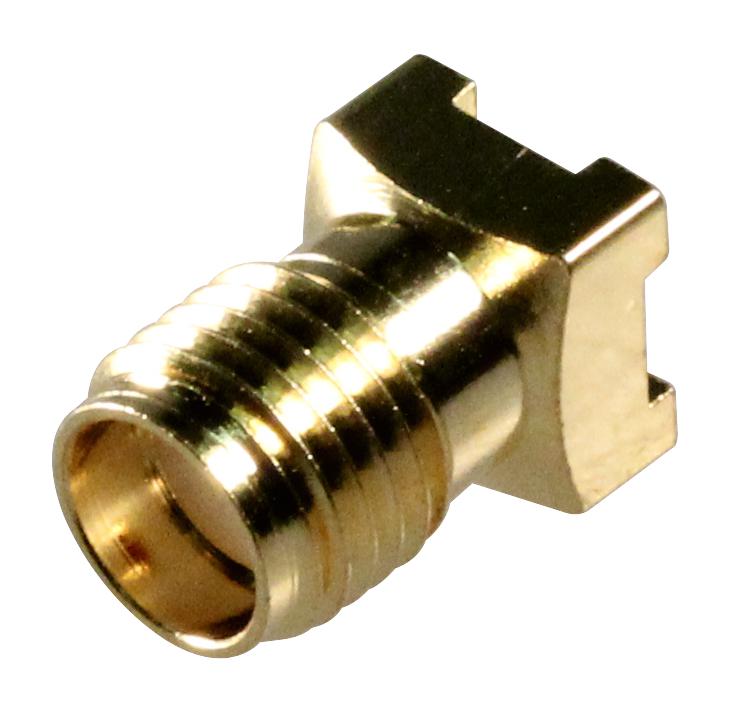

MULTICOMP-PRO MP19462TGG SMA Coaxial Connector
The 19-46-2-TGG is a straight SMA coaxial bulkhead jack with a gold-plated beryllium copper contact. It features solder coaxial termination, PTFE insulation, and supports frequencies up to 18 GHz. Designed for RF communication, this connector offers reliable performance, high durability, and compliance with MIL-STD-348A standards. With a maximum voltage rating of 500V and operation temperatures from -65°C to +165°C, it ensures stability in demanding environments. Ideal for industrial, telecommunications, and electronic applications requiring high-frequency coaxial connections.
MULTICOMP-PRO MP19462TGG SMA Coaxial Connector Specifications:
- Connector Body Style: Straight Jack Receptacle
- Mounting: Surface Mount, PCB Mount
- Frequency Max.: DC - 18 GHz
- Nominal Impedance: 50Ω
- Voltage Rating: 500V Max.
- VSWR: 1.23 Max
- Bodies Material: Brass per JIS-C3604
- Centre Contact Material: Beryllium Copper per ASTM B196 UNS C17300
- Center Contact Finish: Gold 50+ Microinches Min.
- Insulation Material: PTFE per ASTM D1457 and ASTM D1710
- Operating Temperature: -65°C to +165°C
- Interface Standard: MIL-STD-348A
Buy the Multicomp Series SMA Coaxial Connector: MP19462TGG
Enhance your RF communication systems with the durable and high-performance SMA coaxial connector. Featuring a gold-plated beryllium copper contact, PTFE insulation, and a maximum frequency of 18 GHz, this surface mount jack provides consistent, reliable connections in demanding environments. Its robust brass body and precise dimensions ensure compatibility across various applications, including industrial, telecommunications, and electronic projects. Purchase online today and benefit from fast delivery and quality assurance for your high-frequency technical requirements.
Buy Multicomp Series MP19462TGG now and experience unmatched reliability and high-frequency performance for RF communication needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP19462TGG?
You can click on the BUY or RFQ button to purchase MP19462TGG from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP19462TGG?
You can download the MP19462TGG datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP19462TGG?
MULTICOMP-PRO
