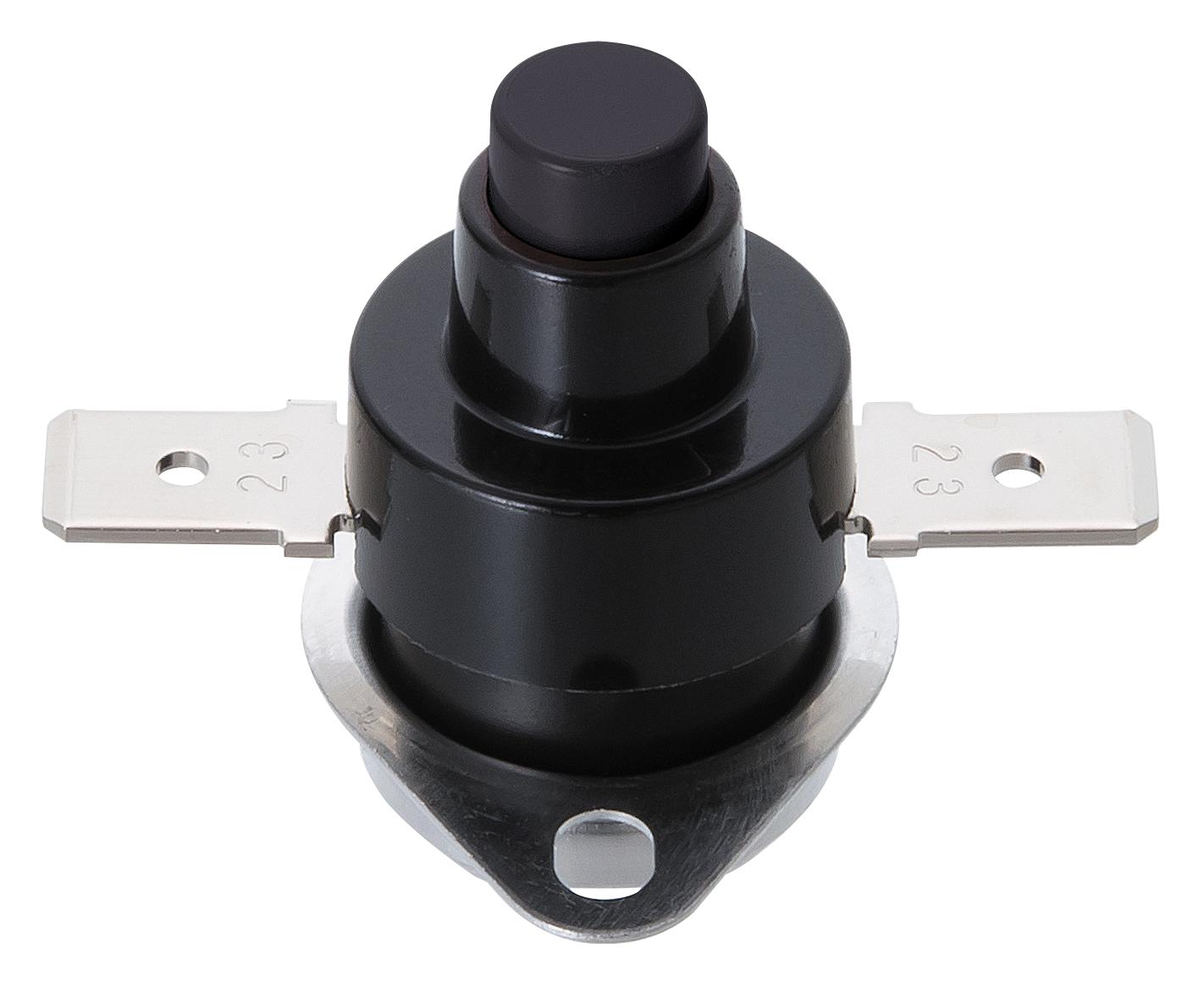

MULTICOMP PRO MP23EN150DEGNC Disc Thermostat
This 1/2-inch disc type thermostat features manual reset operation with a maximum temperature rating of 150°C. Suitable for controlling temperature in various electrical appliances, it comes with quick connect terminals for easy wiring. The thermostat is constructed with durable materials including a bimetal disc, stainless steel bracket, and silver-nickel contact alloy to ensure reliable performance. Certified under UL, C-UR, and DIN EN standards, it withstands electrical ratings up to AC 120V/15A and AC 250V/16A, offering up to 6,000 cycles. Ideal for hot and cold air circulation systems, it ensures safe and efficient temperature management in industrial and residential applications.
MULTICOMP PRO MP23EN150DEGNC Disc Thermostat Specifications:
- Dimensions: 3/716” quick connect, 174” quick connect positive lock, dimensions in millimeters
- Operation: SPST manual reset, contacts open on temperature rise, not automatic reset
- Electrical rating: UL, C-UR : AC 120V/15A, AC240V/10A 6,000 cycles; VDE : AC 250V/16A 3,000 cycles
- Temperature rating: Max 150°C operating temperature
- Insulation resistance: Not less than 1,000MQ/DC500V
- Dielectric strength: Not less than AC 1,500V/1min or AC 1,800V/1sec
- Material: Metal disc cap of aluminium, copper; case phenolic resin; terminals brass; contacts silver-nickel alloy
- Standards: UL 873, C-UR UL File No. E43273, DIN EN 60730-1,-2-9 VDE Licence No. 40012267
Buy the Multicomp Series 1/2 Inch Disc Thermostat: MP23EN150DEGNC
Order the Multicomp 1/2 Inch Disc Thermostat with manual reset function today. This thermostat supports up to 150°C maximum temperature, featuring quick connect terminals for simple installation. Constructed with durable materials like a bimetal disc and silver-nickel contacts, it guarantees reliable operation in air circulation and temperature control systems. Certified under UL, C-UR, and VDE standards, it can handle electrical loads up to AC 120V/15A and AC 250V/16A. Perfect for industrial, commercial, and residential use, ensuring safety and efficiency in various applications.
Get Multicomp 1/2 Inch Disc Thermostat MP23EN150DEGNC today—built for precise temperature control and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP23EN150DEGNC?
You can click on the BUY or RFQ button to purchase MP23EN150DEGNC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP23EN150DEGNC?
You can download the MP23EN150DEGNC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP23EN150DEGNC?
MULTICOMP PRO
