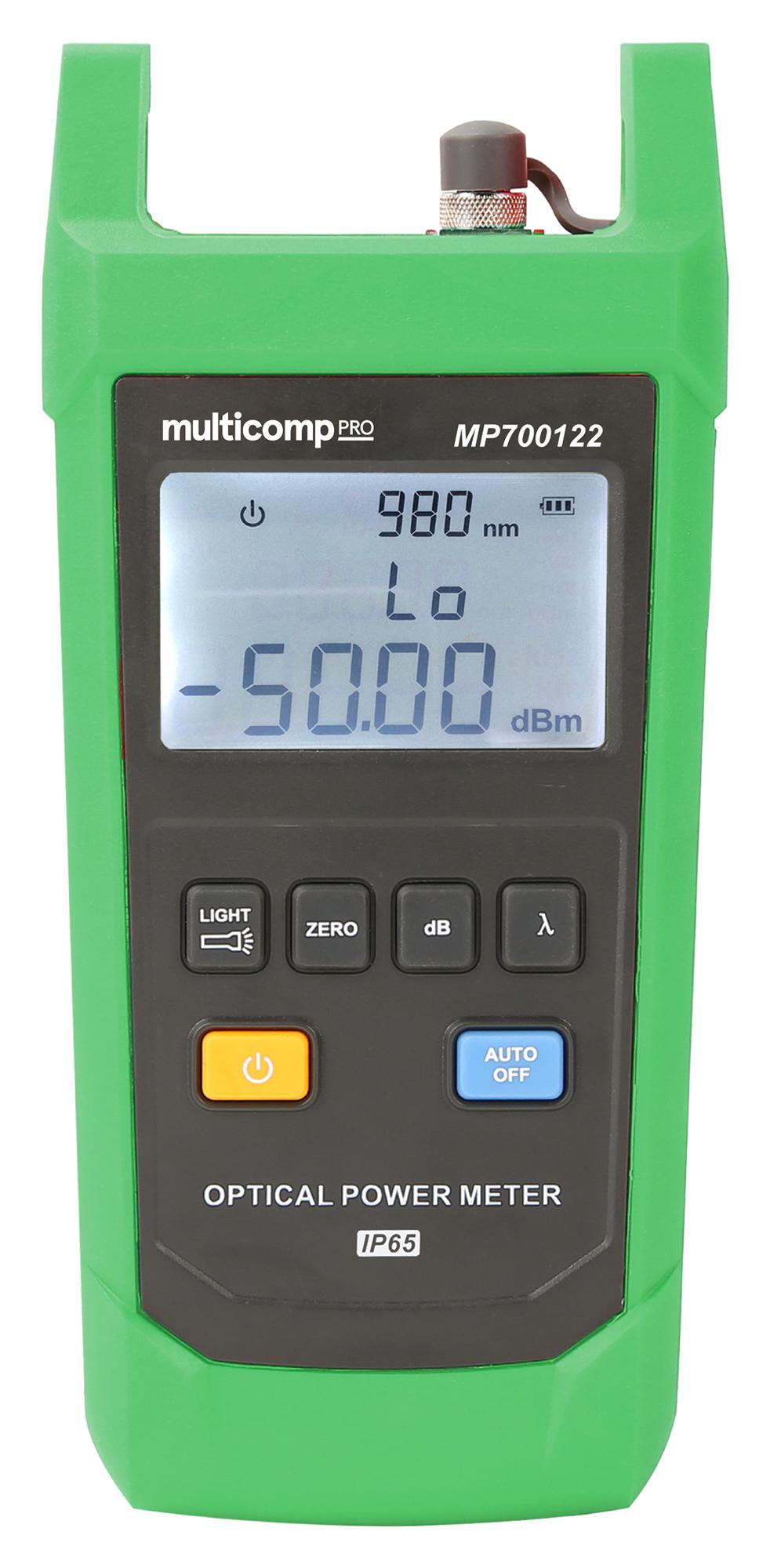

MULTICOMP PRO MP700122 Optical Power Meter
The Multicomp Pro MP700122 is a durable handheld optical power meter designed for accurate measurement of absolute optical power and relative loss in fiber optic cables. It features an input wavelength range of 800 to 1700 nm, supporting FC, SC, and ST connectors. The device offers a measurement range from -50 to 26 dBm, with simultaneous display of linear milliwatts and logarithmic dBm readings, and utilizes an InGaAs detector for precise readings. Its robust construction includes an IP65 dust and water resistance rating and a 2-meter drop resistance. Additional features include a backlit display, flashlight, auto power-off after 10 minutes, wavelength store/recall functions, and calibration at multiple wavelengths (850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm). Powered by three AAA batteries, it offers up to 60 hours of operation and is suitable for fiber optic installation, maintenance, testing, and laboratory applications. The device measures 189 x 87 x 45 mm and weighs 286 grams.
MULTICOMP PRO MP700122 Optical Power Meter Specifications:
- Measurement Range: -50 dBm to +26 dBm
- Wavelength Range: 800 to 1700 nm
- Connector: FC, SC, ST (standard), with options
- Detector Type: InGaAs
- Uncertainty: 2 ±5%
- Calibrated Wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 nm
- Display Resolution: Linear 0.1%, logarithmic 0.01 dBm
- Auto Power Off: 10 minutes
- Power Supply: 3 x AAA alkaline batteries
- Battery Life: Up to 60 hours
- Drop Height Resistance: 2 meters
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 50°C
- Dimensions: 189mm x 87mm x 45mm
- Weight: 286g
- Certification: CE & IP65
- Additional Features: Backlit display, flashlight, user calibration, wavelength store/recall
Buy the Multicomp Series Optical Power Meter: MP700122
Purchase the Multicomp Pro optical power meter online today and ensure accurate fiber optic measurement in any environment. This rugged device supports a wide wavelength range from 800 to 1700 nm, making it ideal for installation, maintenance, and laboratory testing. Its IP65 rated dust and water resistance, combined with a 2-meter drop resistance, guarantees durability in tough conditions. With features like backlit display, auto power-off, wavelength recall, and calibration options, this meter provides fast, reliable readings. Enjoy up to 60 hours of operation on three AAA batteries, supported by detailed specifications and user-friendly operation—all available for convenient online purchase.
Get Multicomp Pro MP700122 today—built for precise fiber optic testing and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP700122?
You can click on the BUY or RFQ button to purchase MP700122 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP700122?
You can download the MP700122 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP700122?
MULTICOMP PRO
