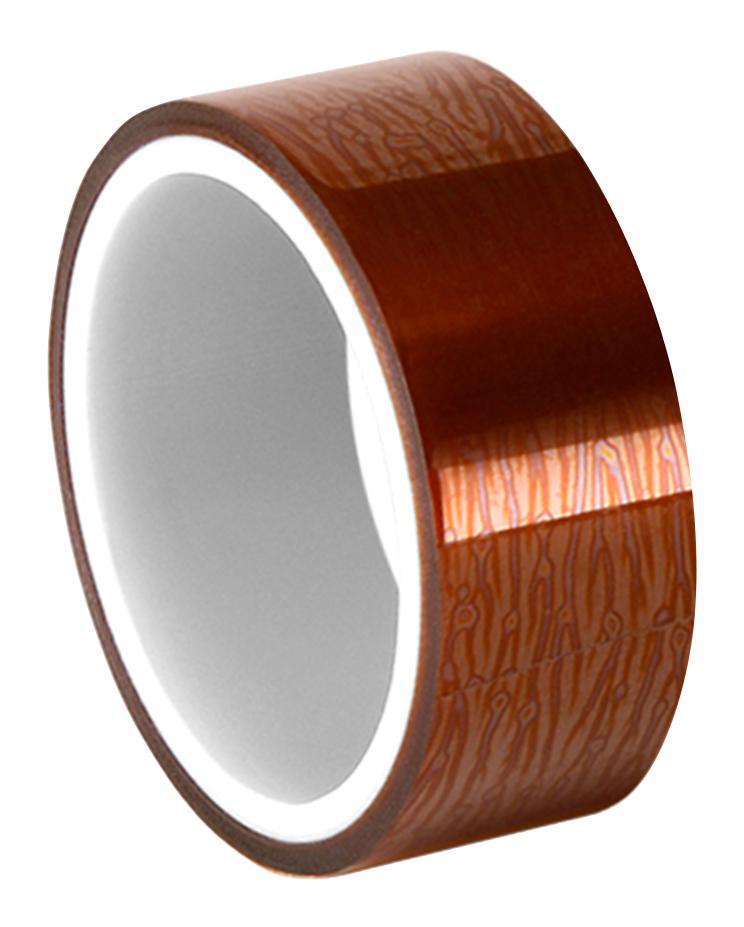

MULTICOMP PRO MP700354 Polyimide Tape
Polyimide film combined with silicone adhesive designed for high-temperature masking applications. Ideal for protecting the gold fingers of PCBs during wave soldering or solder dips, as well as for release surfaces in parts fabricated at elevated temperatures. Widely used for electrical insulation on transformers, motors, coils, and PCBs. The film is thin and conformable, allowing masking of uneven surfaces, and supports a wide operating temperature range up to 500°F. It offers excellent electrical insulation and can be removed cleanly without leaving adhesive residue after exposure to heat or chemicals. Meets UL-94V0 safety standard. The polyimide film has a thickness of 2.0 mil, with a total thickness of 3.5 mil.
MULTICOMP PRO MP700354 Polyimide Tape Specifications:
- Total Thickness: 3.5 mils
- Polyimide film Thickness: 2 mils
- Adhesive Thickness: 1.5 mils
- Adhesive: Silicone
- Adhesive Colour: Amber
- Operating Temperature Range: -40°F to 500°F
- Dielectric Strength: 11,000 volts
- Break Strength: 50 lbs/in
- Elongation: 60%
- Adhesion to Steel: 22 oz/inch
- Flammability: UL 94V-0
- Application: Masking, electrical insulation, high-temperature release surface
- Shelf Life: One year when stored below 76°F in dry conditions
- Certifications: UL Listed
Buy the Buy Multicomp Polyimide Silicone Adhesive Tape Part Number MP700354 Online
Discover the high-quality Multicomp Polyimide Silicone Adhesive Tape MP700354, designed for demanding high-temperature applications up to 500°F. Perfect for PCB masking during wave soldering, protecting gold fingers and surfaces, or use as an electrical insulator on transformers, motors, and coils. Its thin, conformable film can mask uneven surfaces and remove cleanly without residue after heat or chemicals exposure. Compliant with UL-94V0 safety standards, ensuring safety and reliability in electronics manufacturing and repair. Order online now for fast delivery and technical support.
Order your Multicomp Polyimide Silicone Adhesive Tape MP700354 today and ensure reliable high-temperature masking and electrical insulation for your projects.
