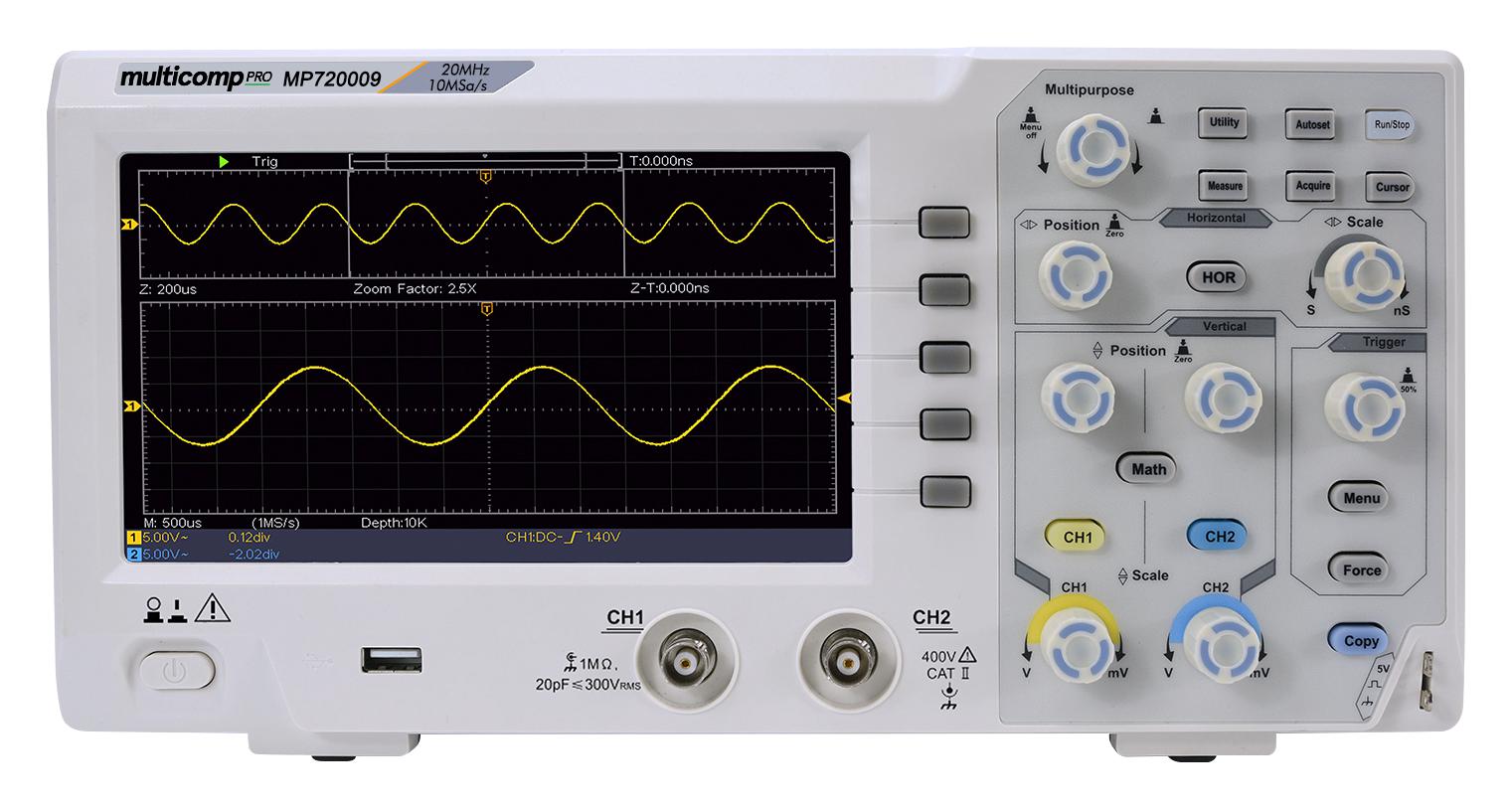

MULTICOMP PRO MP720009US Digital Oscilloscope
The Multicomp Pro MP720009 is a cost-effective, two-channel digital oscilloscope with a 20MHz bandwidth and 8-bit vertical resolution. It features a 7-inch high-resolution color LCD display, a user-friendly interface with easy-access operation menus, and a front USB port for data transfer. The device supports multiple measurement functions, including 30 auto-measurements, and offers various input coupling options such as DC, AC, and GND. It provides vertical sensitivity from 5mV/div to 5V/div and includes edge and video trigger types with auto, normal, and single trigger modes. Compact and lightweight, it measures approximately 11.85 inches by 5.98 inches by 2.75 inches and weighs 2.42 pounds. The package includes the oscilloscope, two 60MHz probes, a probe manual, an accessories bag, operating instructions, a CD-ROM, and a mains cord.
MULTICOMP PRO MP720009US Digital Oscilloscope Specifications:
- Bandwidth: 20MHz
- Channels: 2
- Vertical Resolution: 8 bits
- Display: 7 inch high-resolution color LCD, 800 x 480 pixels
- Input Impedance: 1MΩ ±2%, in parallel with 20pF ±5pF
- Vertical Sensitivity: 5mV/div - 5V/div
- Trigger Types: Edge, Video
- Trigger Mode: Auto, Normal, Single
- Maximum Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)
- Sample Rate: 100MS/s
- Record Length: 10K
- Dimensions: 301mm x 152mm x 70mm
- Weight: 1.1kg
- Power Supply: 100V-240V AC, 50/60Hz
- Power Consumption: <15W
- Communication Interface: USB host, USB device
- Included Accessories: Power cord, USB cable, manual, probes, probe adjustment tool
- Optional accessories: Soft bag
Buy the Buy multicomp Pro Oscilloscope Part Number MP720009 Online
Enhance your testing and measurement capabilities with the multicomp Pro digital oscilloscope. Featuring dual channels, 20MHz bandwidth, a 7-inch high-resolution color display, and easy data transfer via USB, this compact device is perfect for students, hobbyists, and professionals. Its versatile input coupling options and multiple trigger modes provide accurate measurements. Lightweight and portable, it includes essential accessories such as probes, a manual, and a CD-ROM, making it an invaluable addition to any electronics workspace. Purchase online today for reliable performance.
Order your multicomp Pro series MP720009 digital oscilloscope today and equip your lab with a reliable, compact, and feature-rich testing instrument.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP720009US?
You can click on the BUY or RFQ button to purchase MP720009US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP720009US?
You can download the MP720009US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP720009US?
MULTICOMP PRO
