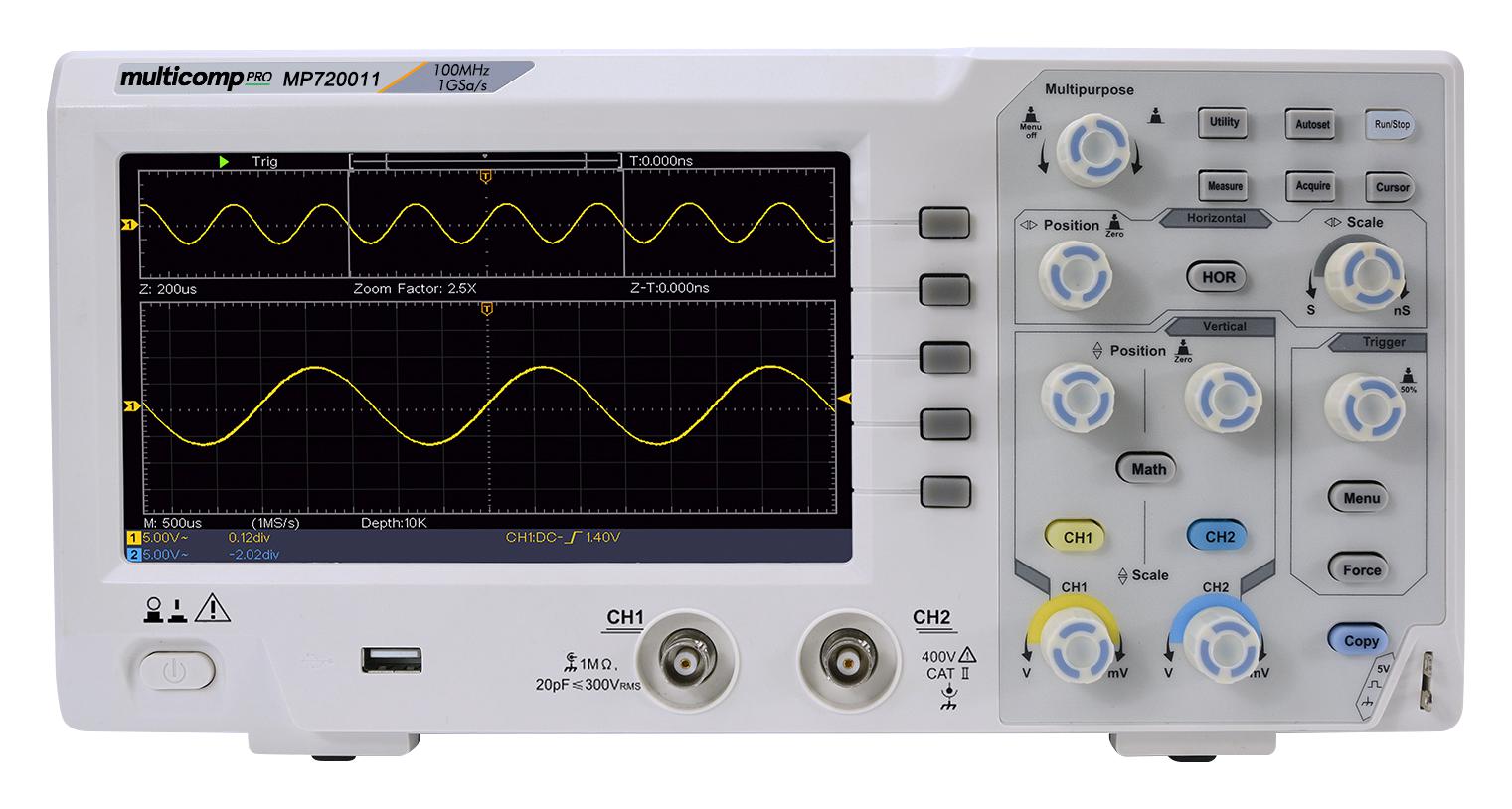

MULTICOMP PRO MP720011US digital storage oscilloscope
The Multicomp Pro MP720011 is a dual-channel digital storage oscilloscope with a 100MHz bandwidth and 8-bit resolution. It features a 7-inch high-resolution color LCD display, a front USB interface for connectivity, and an ultra-thin design for portability. The device offers 30 automatic measurement functions, multiple trigger options, and supports SCPI and LabVIEW for programming and automation. Included accessories are an oscilloscope unit, mains cord, USB cable, CD-ROM, user manual, probes, and a probe adjustment tool.
MULTICOMP PRO MP720011US digital storage oscilloscope Specifications:
- Bandwidth: 100MHz
- Sample Rate: 1GS/s
- Display: 7 inch colour LCD, 800 x 480 pixels
- Input Impedance: 1MQ +2%, in parallel with 20pF +5pF
- Max Input Voltage: 400V (PK - PK) (DC+AC)
- Vertical Resolution: 8 bits
- Vertical Sensitivity: 5mV/div - 5V/div
- Trigger Type: Edge, Video
- Trigger Mode: Auto, Normal, Single
- Trigger Level: +5 divisions from screen center
- Sample Rate / Relay Time Accuracy: +100ppm
- Power Consumption: <15W
- Device Dimensions: 301mm x 152mm x 70mm
- Weight: 1.1kg
- Power Supply: 100V AC to 240V AC, 50/60Hz
- Communication Interface: USB host, USB device
- Standard Accessories: Power cord, USB cable, CD-ROM, manual, probes, probe adjustment tool
Buy the Farnell MP720011 U+2013 Reliable Oscilloscope for Industrial Applications
Purchase the Farnell MP720011 digital storage oscilloscope online to enhance your electronic testing capabilities. Featuring 100MHz bandwidth, 8-bit resolution, and a 7-inch high-resolution LCD, it ensures precise signal analysis. Its compact ultra-thin design allows easy portability, making it suitable for industrial and research applications. With advanced automatic measurement functions, multiple trigger options, and SCPI and LabVIEW support, this oscilloscope offers comprehensive functionality for engineers and technicians. Order now for reliable performance and quick delivery.
Get Farnell MP720011 today—built for precision and long-lasting durability in electronic testing and measurement.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP720011US?
You can click on the BUY or RFQ button to purchase MP720011US from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP720011US?
You can download the MP720011US datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP720011US?
MULTICOMP PRO
