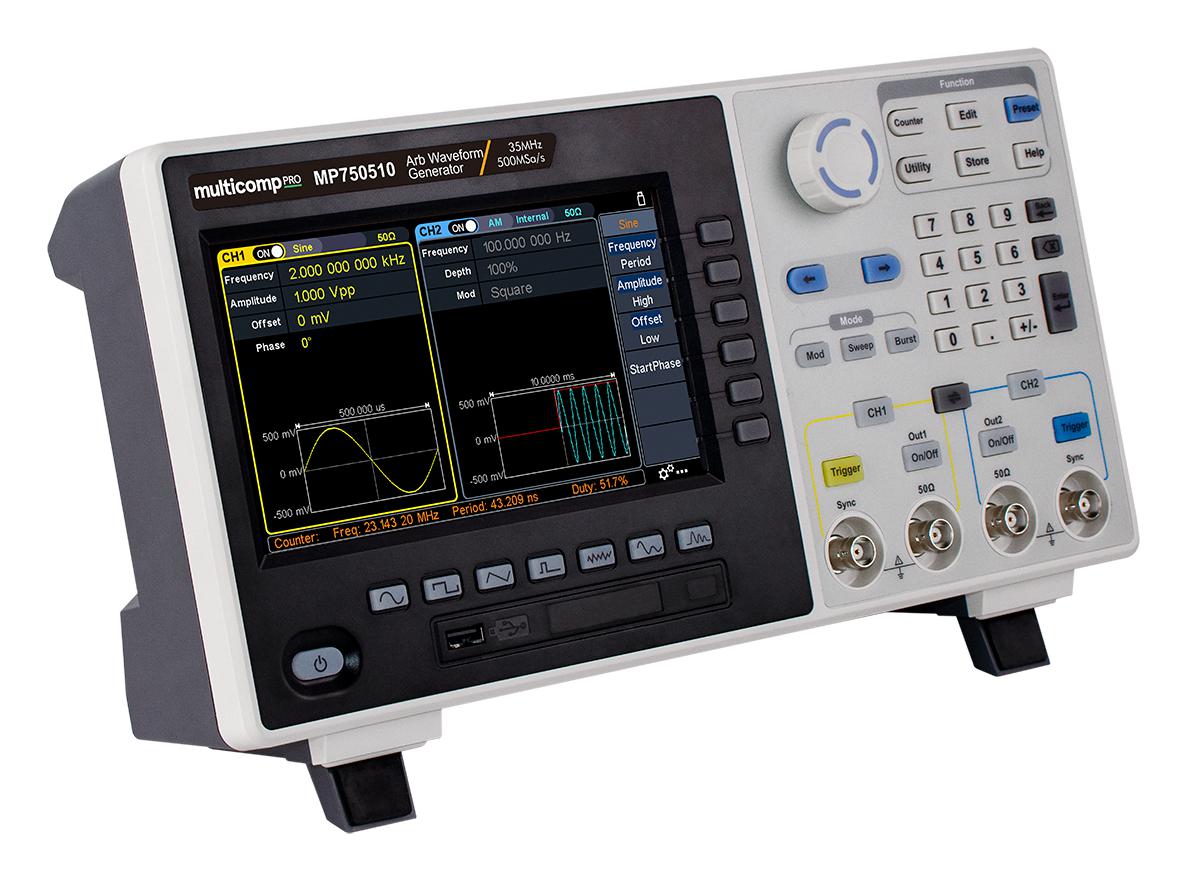

MULTICOMP PRO MP750510US Arbitrary Waveform Generator
The multicomp MP750510 series arbitrary waveform generator provides advanced DDS technology with 14-bit vertical resolution and a 10 million point waveform length. It features six basic waveforms—sine, square, pulse, ramp, noise, and harmonic—and supports 152 built-in arbitrary waveforms. The device supports comprehensive modulation functions including AM, FM, PM, FSK, PSK, ASK, DSB-AM, QPSK, PWM, Sweep, and Burst. With a high-accuracy frequency counter supporting ranges from 100mHz to 200MHz, it also includes a 7-inch TFT LCD display, SCPI, and LabVIEW compatibility, making it ideal for precise testing and signal generation.
MULTICOMP PRO MP750510US Arbitrary Waveform Generator Specifications:
- Frequency Output: 35MHz, 60MHz, 80MHz, 400MHz
- Sample Rate: 500MSa/s
- Vertical Resolution: 14 bits
- Waveform Types: Sine, square, pulse, ramp, noise, harmonic, and arbitrary
- Arbitrary Waveform Length: 2 points - 10 million points
- Harmonic Range: Up to 50MHz (depending on model)
- Total Harmonic Distortion: < 0.05%
- Phase Deviation: 0° - 180°
- Rise/Fall Time: < 8ns
- Jitter: < 300ps rms
- Amplitude Range: 1mVpp to 10Vpp (less than 25MHz)
- DC Offset Range: +5V, +10V (high resistance)
- DC Offset Resolution: 0.1mV or 4 digits
- Frequency Counter: 100mHz to 200MHz, 7 digits resolution
- Display: 7-inch 800 x 480 pixels LCD
- Dimensions: 340mm x 177mm x 90mm
- Weight: 2.3kg
- Interfaces: USB Host, USB Device, LAN
- Power: 100V - 230V AC, 50Hz/60Hz
Buy the Multicomp Series Arbitrary Waveform Generator: MP750510
Discover the versatile multicomp MP750510 arbitrary waveform generator, featuring 14-bit resolution, six basic waveforms, and extensive modulation options. This device offers precise signal generation with a 7-inch LCD, high speed sampling, and compatibility with SCPI and LabVIEW. Perfect for testing, research, and development, it provides detailed control over waveforms, harmonic distortion below 0.05%, and a frequency range up to 400MHz. Easy to operate, compact, and robust, it’s ideal for professional electronics testing and signal research needs.
Buy multicomp MP750510 now and experience unmatched reliability and performance with advanced waveform capabilities and user-friendly interface.
