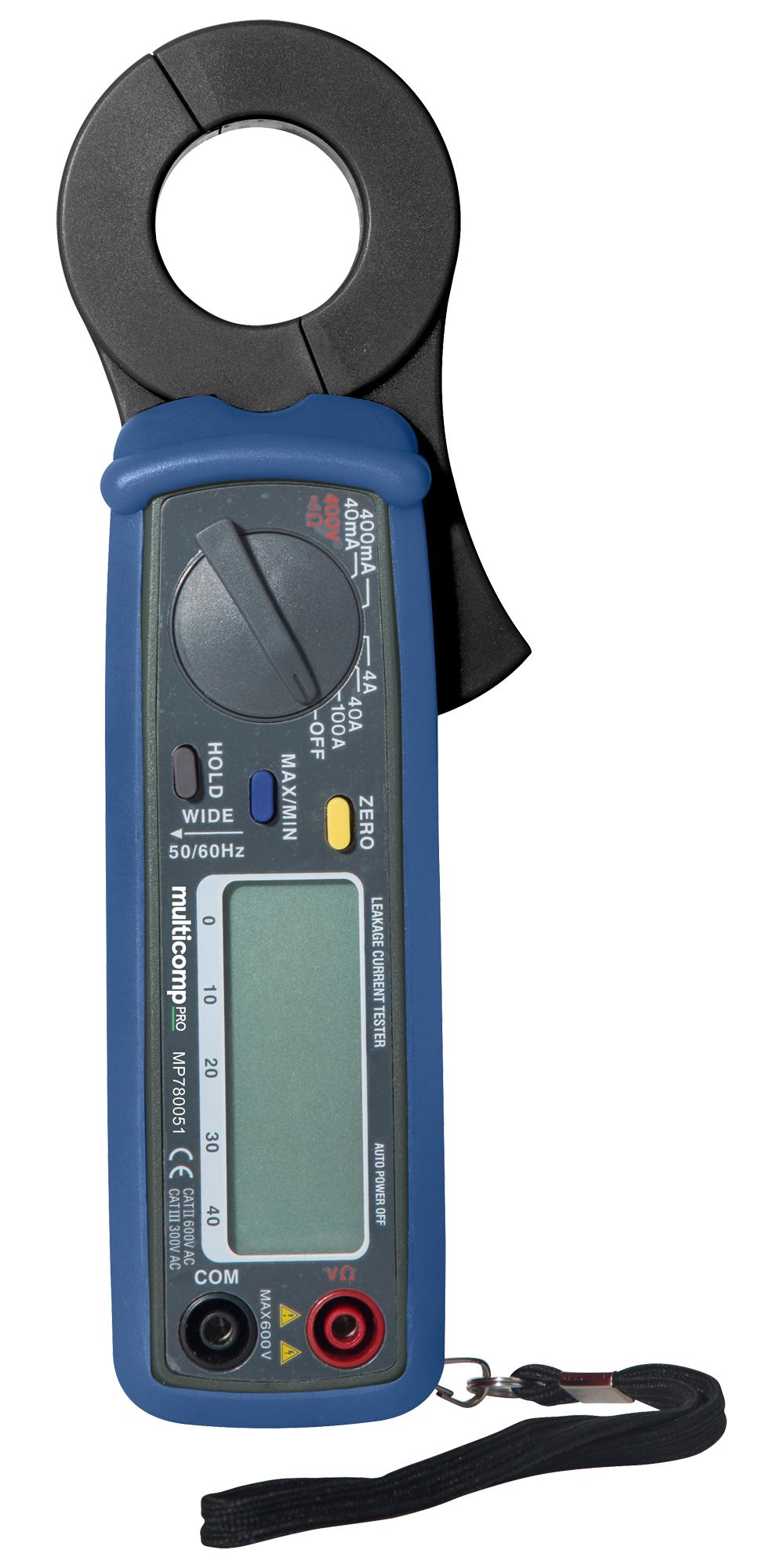

MULTICOMP-PRO MP780051 AC Leakage Tester
This multifunction AC leakage current tester provides accurate measurements up to 100A with a high resolution of 10µA, suitable for appliance and vehicle diagnostics. It features a shielded transformer jaw with a 30mm opening, large 3.75-digit LCD display, and functions including AC current, voltage, resistance, and continuity. The device offers overload protection, auto power-off, data hold, max/min recording, and conforms to IEC 61010 standards. Compact and portable, it comes with a 9V battery, test leads, and a storage case for reliable and precise electrical testing in various applications.
MULTICOMP-PRO MP780051 AC Leakage Tester Specifications:
- Measurement Range: AC current up to 100A, voltage up to 400V, resistance 40-400 ohms
- Resolution: 10µA for AC current, 0.1V for voltage, 0.10 ohms for resistance
- Display: 3.75-digit LCD with 4000 counts, fast sampling at 20 times/sec.
- Protection: Overload protection up to 600V, CAT III 300V standards, auto power-off function
- Jaw Size: 30mm diameter shielded transformer jaw for stray magnetic field minimization
- Power: 9V PP3 battery included, low battery indicator, approx. 10mA current consumption
- Operating Temperature: -10°C to +50°C, Humidity: less than 85%, storage temperature: -20°C to +60°C
Buy the Multicomp Series AC Leakage Current Tester: MP780051
Order the Multicomp AC Leakage Current Tester MP780051 online today to ensure accurate leakage measurements with high resolution. Compact and user-friendly, it features a large LCD display, shielded jaw, and overload protection for safe, reliable testing. Perfect for appliance diagnostics and vehicle electrical checks, the device offers auto power-off and data hold functions, ensuring efficiency and convenience. With a robust design, sample-ready test leads, and a carrying case included, this tester is your ideal choice for precise electrical analysis in professional and industrial environments.
Get Multicomp AC Leakage Current Tester MP780051 today—built for precise leakage testing and long-lasting durability.
